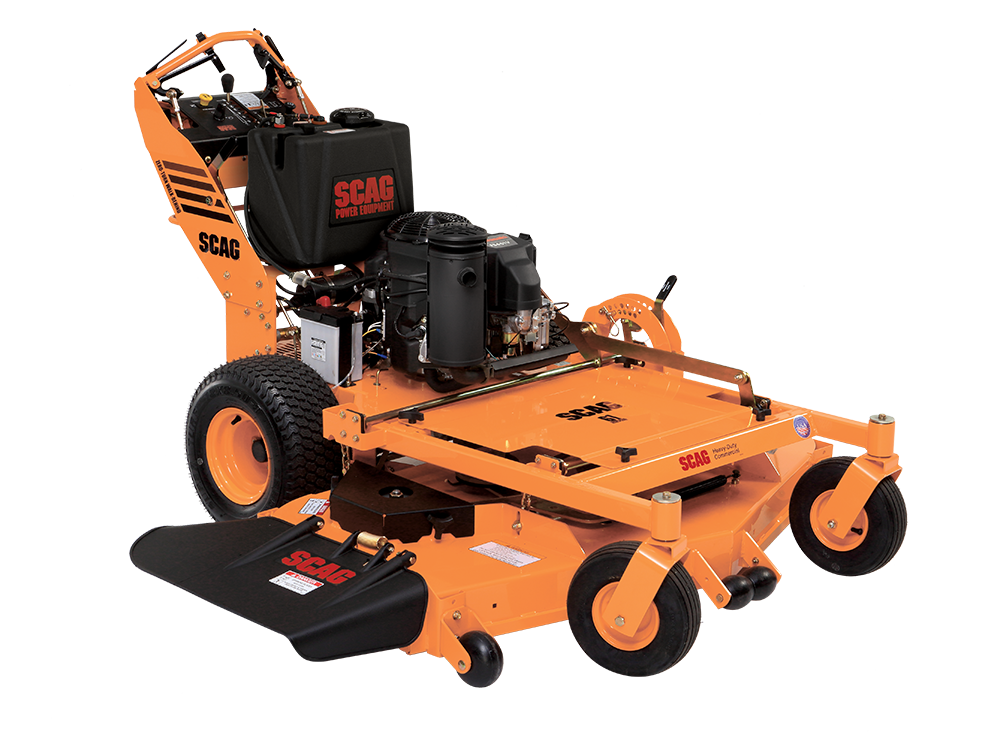

Scag SWZT Hydro-Drive

Specs

Model	Deck Width	Engine	Horsepower	MSRP
SWZT-36H-14FS	36″	Kawasaki® FS Series	14	$6,499
SWZT-48H-15FSE	48″	Kawasaki® FS Series – electric-start	15	$7,249
SWZT-48H-20CXI	48″	Briggs & Stratton® CXi Series™ – electric-start	20	$7,349
SWZT-52H-18FSE	52″	Kawasaki® FS Series – electric-start	18	$7,649
SWZT-52H-20CXI	52″	Briggs & Stratton® CXi Series™ – electric-start	20	$7,499
SWZT-61H-22FSE	61″	Kawasaki® FS Series – electric-start	22	$7,999
SWZT-61H-25CXI	61″	Briggs & Stratton® CXi Series™ – electric-start	25	$8,149
Contact your local Scag dealer for specific availability information.

Product Dimensions	36″ SWZT	48″ SWZT	52″ SWZT	61″ SWZT
Length	75.5″	75.5″	76.5″	80″
Height	44″	44″	44″	44″
Tracking Width	36.25″	41.5″	41.5″	41.75″
Width (chute down)	48.5″	60.5″	64.5″	73.5″
Width (chute in transport position)	37″	49″	53″	62″
Weight	550 lb	585 lb	605 lb	700 lb

General
Total Fuel Capacity	5.5 gallons
Drive Tires	18″ x 6.5″-8″ (36″) 18″ x 8.5″-8″ (48″, 52″ and 61″)
Caster Tires	9″ x 6.5″-4″
Seat	n/a
Drive System
Drive System Type	Hydro-Gear ZT2800 Transaxle
Pumps	Internal Pump: 10 cc
Motors	Internal Motor: 16 cc
Forward Ground Speed	Up to 7 mph
Reverse Ground Speed	3 mph
Parking Brake	Hand lever
Deck
Cutting Widths	36″, 48″, 52″ and 61″
Type	Hero Cutter Deck
Cutting Height	1.5″ to 4.5″ in .25″ increments
Deck Lift	Hand lever
Construction	Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
Spindles	Aluminum housing with sealed ball bearings.
Blade Engagement	Ogura GT1-BS03 (110 ft lb) Adjustable air-gap for extended life.
