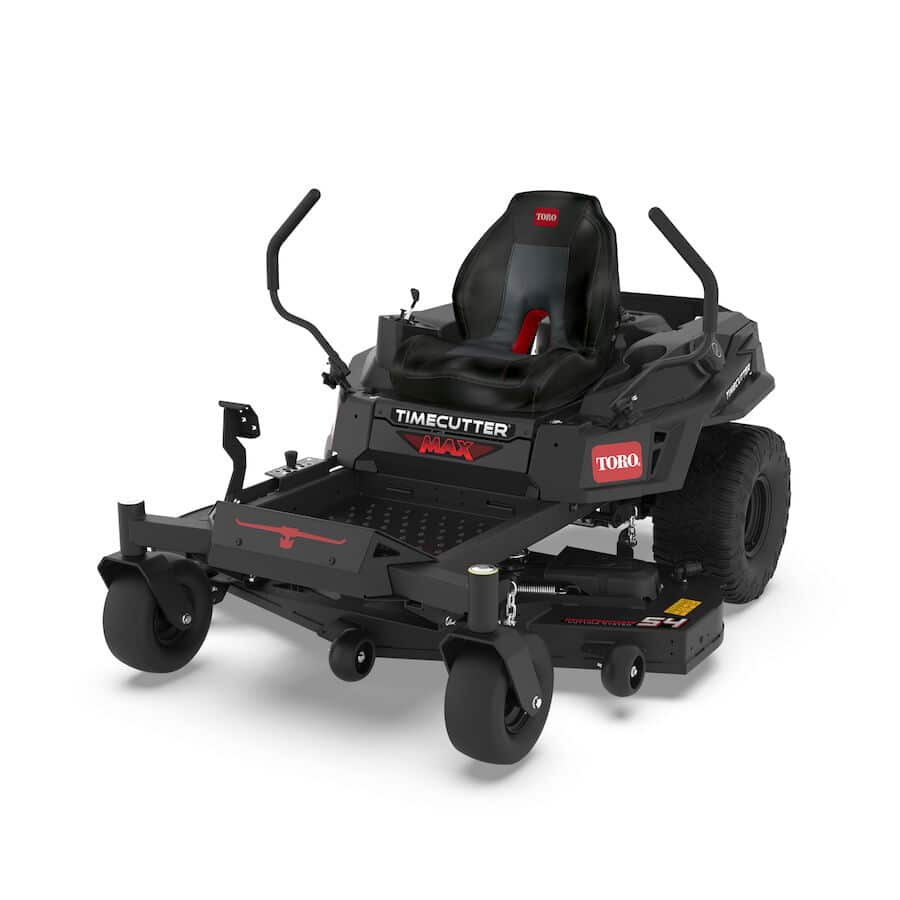

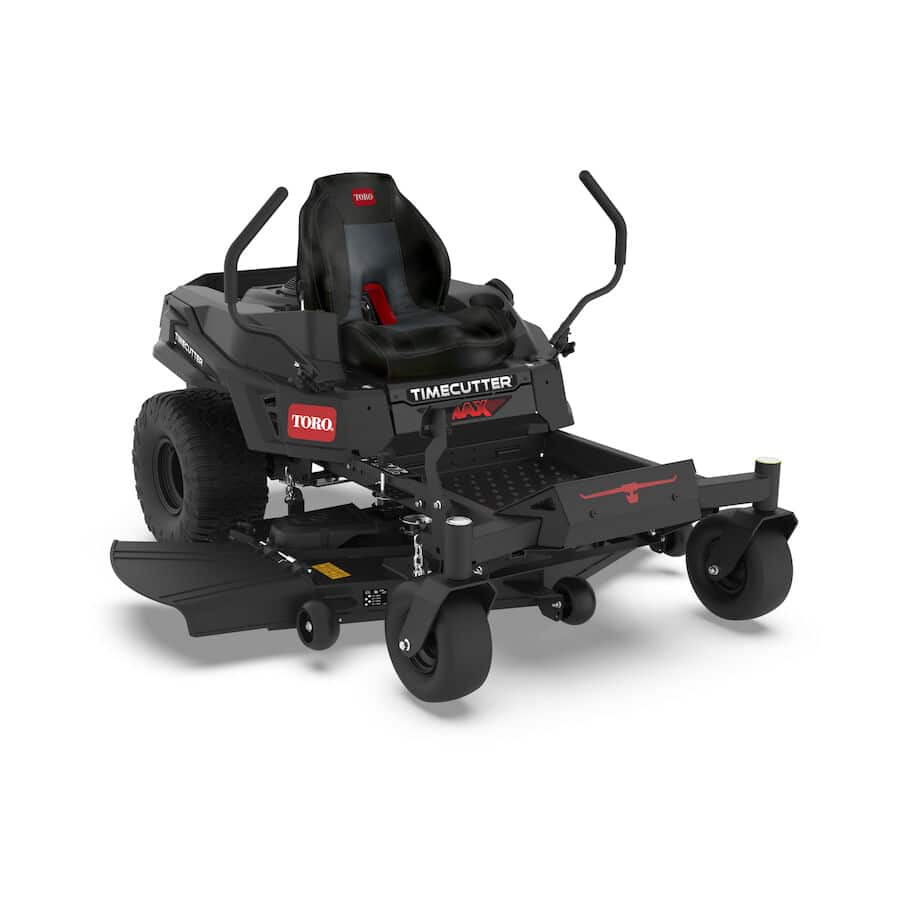

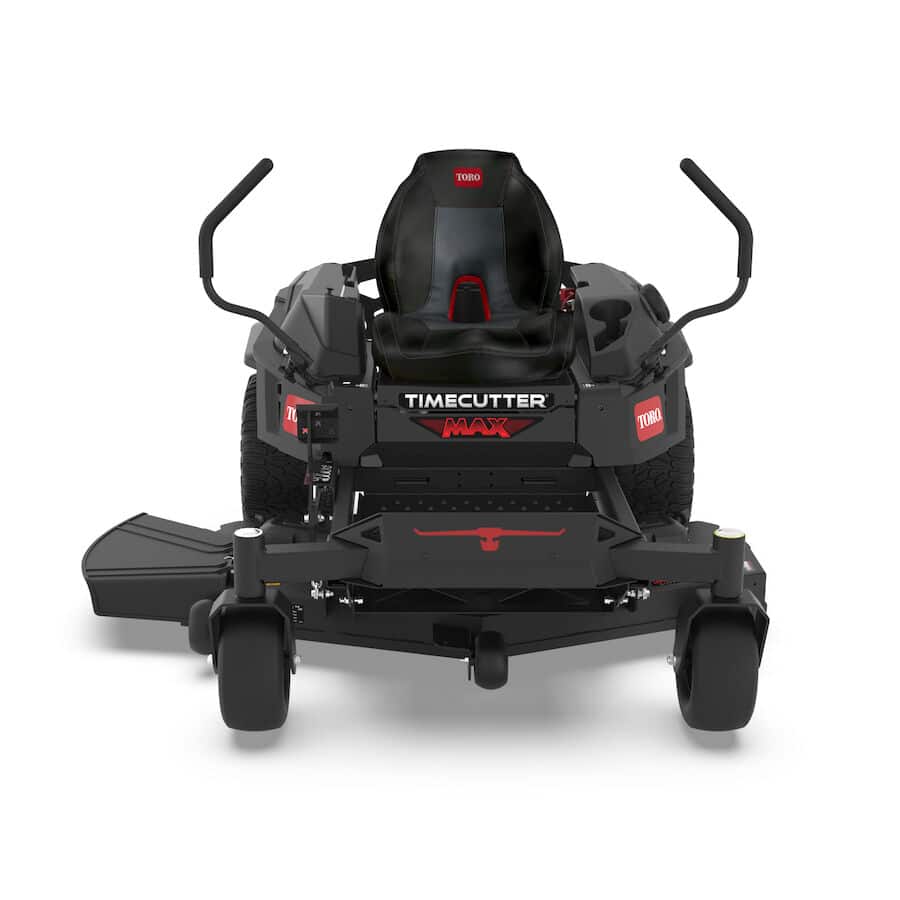

Toro 54 in. (137 cm) Timecutter® Max Havoc Zero Turn Mower (77506)

Contact us for price

Stock status: Call Store for Availability

  • Over 100 years of Pro DNA course through the veins of every mower we build.
  • Its heavy duty steel IronForged® Deck doesn’t flinch no matter what you throw its way.
  • The gaming-style seat gives you big time support exactly where you need it.
  • The four-point deck hanging system doesn’t flinch under your feet when you get on or off the mower.
  • Beefy hybrid-tread rear tires give you maximum traction without tearing up your turf.
  • Automotive-style fuel fill means less mess as you top off the huge 5 gallon tank.
  • Spray blocking fenders keep tire spray off your engine, and more importantly, you.
  • The integrated drain hose makes oil changes effortless and takes the mess out of maintenance.
  • Built upon an ultra-strong, fully tubular steel frame, this beast is rock solid and ready to ride.
  • The same drop pin height of cut used by the pros. So you can adjust to the perfect height, quickly.
  • The extra-large, built-in drink holder keeps your beverage handy so you can keep powering through.
  • Aggressive paint job that says you don’t keep up with the Jones’, you are the Jones’.
  • Download the MyToro app from your mobile device’s app store for easy access to product resources, including manuals, how-to’s, and more
Call Us Now

Specs

Air Filter Standard Kawasaki Air Cleaner
Anti Scalp Wheels 3 Standard
Armrests Optional
Bagger Capacity 4.9 bushels
Blade Tip Speed 17,700 ft/min / 5,395 m/min
Box Dimensions 82.0 in. x 57.0 in. x 35.0 in. / 208.3 cm x 144.8 cm x 88.9 cm
CARB Compliant Not CARB Compliant
Carrier Frame 3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel
Caster Tires 12 in. x 6 in. - 5 in. (30.5 x 12.2 cm - 12.7 cm) Pneumatic
Clutch Electromagnetic
Comfort Platform Standard Suspension
Cooling System Air Cooled
Crankshaft 1" (25 mm) w/Steel Protector
Cup Holder Standard
Cutter System Steel Cutting Blade
Deck Design 10-Gauge steel IrongForged®
Deck Material 10 Gauge Steel
Deck Size 54 in / 137 cm
Discharge Chute Side
Drive System Hydrostatic
Drive Tires 20 in. x 10 in. - 8 in (51 cm x 26 cm - 20.3 cm)
Drive Type Rear-Wheel Drive
Engine 23 hp* Kawasaki® V-Twin 726cc
Engine Brand Kawasaki
Engine Displacement (cc) 726 cc
Engine Horsepower 23.0 hp
Engine Power (kW) 17.2 kW
Foot Operated Height of Cut Standard
Forward Ground/Transport Speed Up to 7.0 mph / 11.2 kph
Forward Mowing Speed Up to 7.0 mph / 11.2 kph
Frame 3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing
Fuel Capacity 5 gal. / 18.9 L / 20 Qt.
Fuel Type Gasoline
Greasable Bearings Yes
Height of Cut 1.0 - 5.0 in. / 2.5 - 12.7 cm
Hitch Bracket Standard
Hour Meter Optional
Hydraulic Drive Standard
Lighting Optional
Number of Blades 3
Product Type TimeCutter Max
Product Use Residential
Recommended Oil Type 10W-30
Roll-Over Protection (ROPS) Optional
Seat 19" Gaming Style
Spindle Bearings Maintenance-free
Spindle Housing Cast-Aluminum
Start Type Electric
Steering Controls Twin Lever
Steering Dampeners Standard Dampers
Terrain Type Flat with Obstacles
Tires 12 in. x 6 in. (30.5 cm x 15.2cm) Front, 20 in. x11 in. (50.8 cm x 27.9 cm) Rear
Transmission Dual Hydrostatic HG-EZT2200
Washout Port Standard
Weight 653 lbs / 296.2 kg
