Specs
Technical specifications

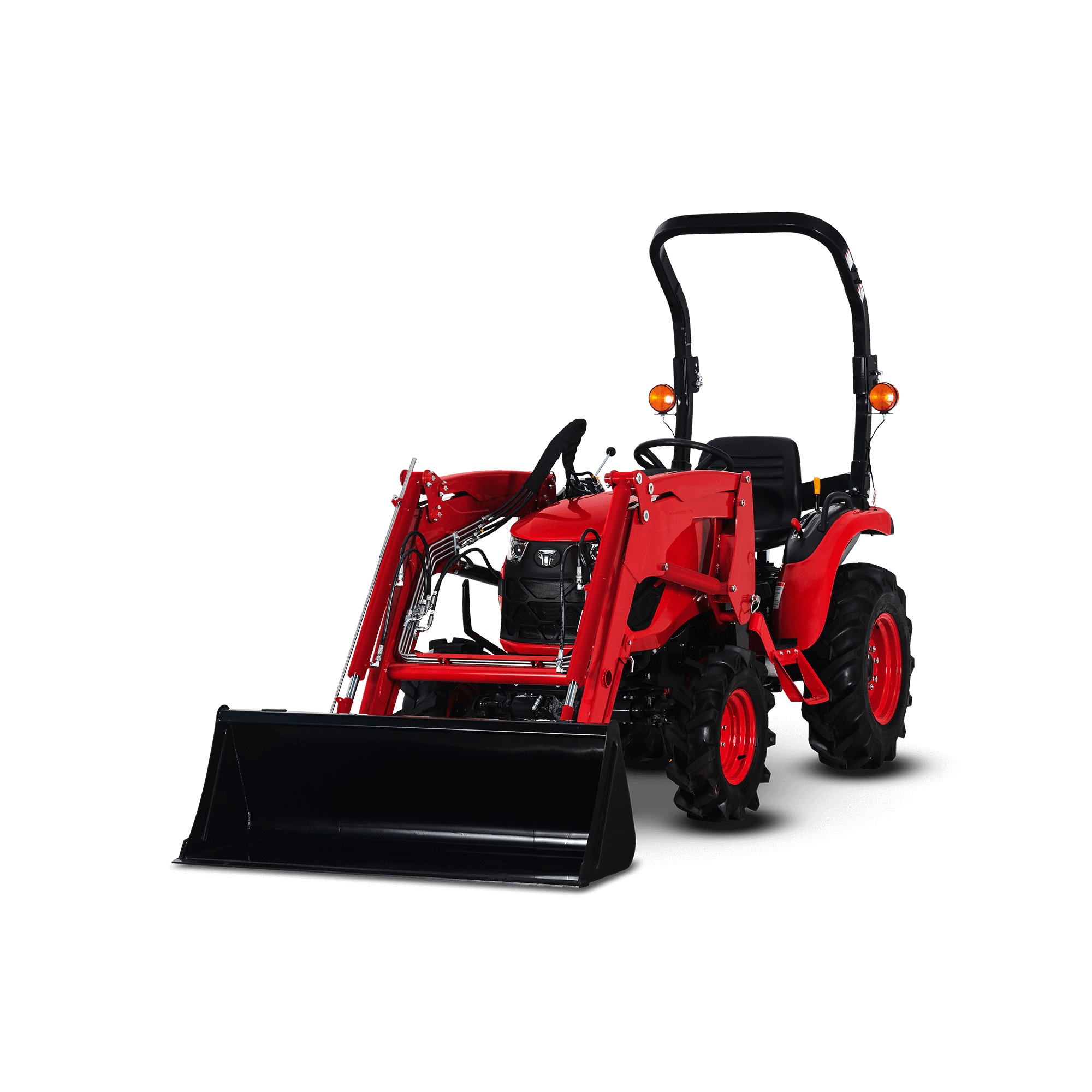

| Tractors Model | 2400R  | 2400H |
Engine manufacturer | TYM T1100N2 | TYM T1100N2 |
Engine power | 24 hp | 17.9 kW | 24 hp | 17.9 kW |
Rated engine speed | 2850 rpm | 2850 rpm |
Displacement | 71.7 cu. in. | 1175 cc | 71.7 cu. in. | 1175 cc |
No. of speeds | F6 x R2 | 2-Range |
Hitch lift capacity | 1499 lb | 680 kg | 1499 lb | 680 kg |
PTO rear | 540/1000 rpm | 540/1000 rpm |
Fuel tank | 6.0 gal | 23 L | 6.0 gal | 23 L |
Overall length with 3-point hitch | 120.3 in. | 3055 mm | 120.3 in. | 3055 mm |
Overall width | 44.2 in. | 1122.7 mm | 44.2 in. | 1122.7 mm |
Wheelbase | 59.1 in. | 1502 mm | 59.1 in. | 1502 mm |
Height to top of ROPS | 87.3 in. | 2219 mm | 87.3 in. | 2219 mm |
Min. ground clearance | 12.1 in. | 307.3 mm | 12.1 in. | 307.3 mm |
Weight with ROPS | 1792 lb | 813 kg | 1829 lb | 830 kg |
R1 Agricultural - Front | 6-12 | 6-12 |
R1 Agricultural - Rear | 9.5-16 | 9.5-16 |
| Download | - | Technical Brochure |
