Specs
Technical Specification

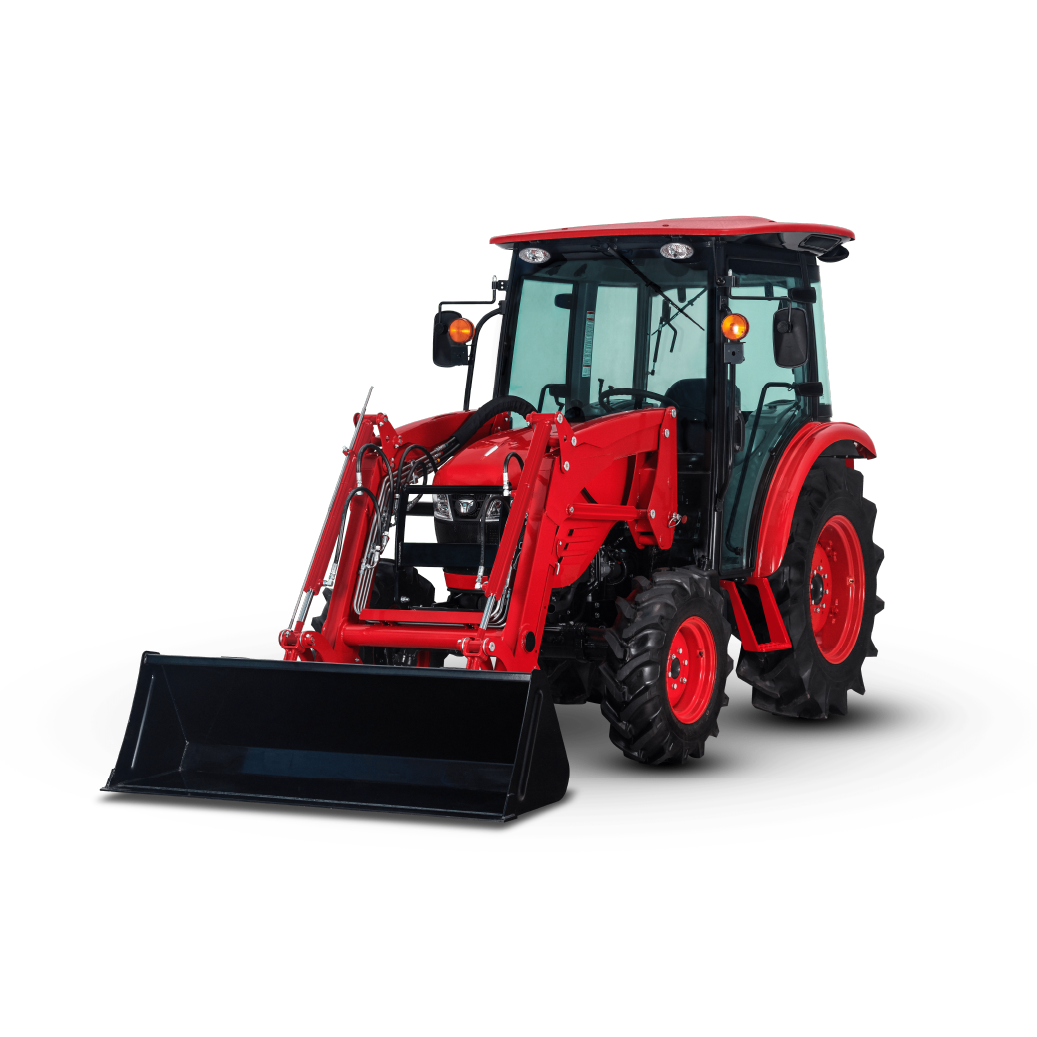

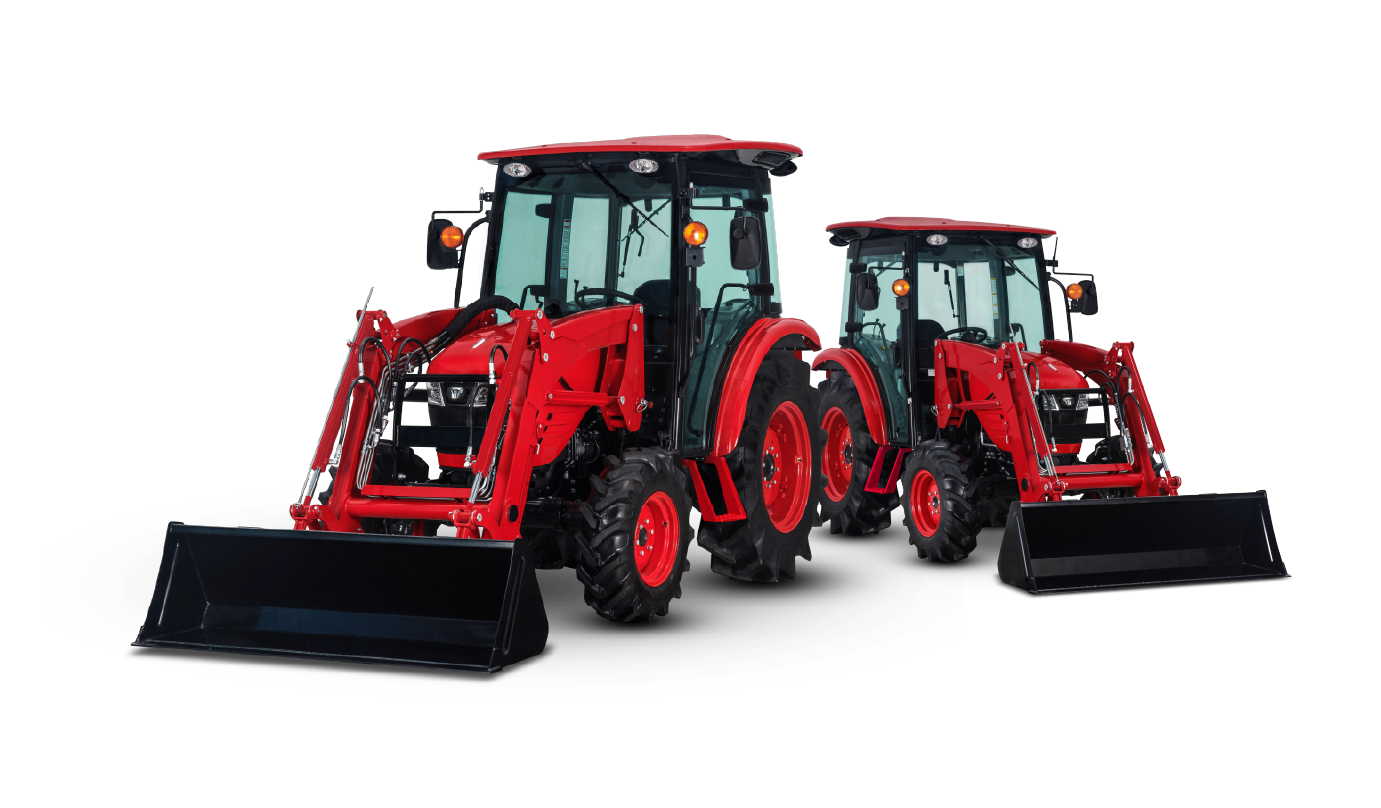

| Tractors Model | 4820C  |
Engine manufacturer | TYM T2300N2 |
Engine power | 48 hp | 36 kW |
Rated engine speed | 2600 rpm |
Displacement | 139.5 cu. in. | 2286 cc |
No. of speeds | F16 x R16 |
Hitch lift capacity | 3306 lb | 1500 kg |
PTO rear | 540/750 rpm |
Fuel tank | 11.8 gal | 45 L |
Overall length with 3-point hitch | 127.4 in. | 3236 mm |
Overall width | 64.9 in. | 1650 mm |
Wheelbase | 71.1 in. | 1806 mm |
Height to top of ROPS | 97 in. | 2463 mm |
Min. ground clearance | 15.5 in. | 394 mm |
Weight with cab | 4349 lb | 1973 kg |
R1 Agricultural - Front | 9.5-16 |
R1 Agricultural - Rear | 13.6-26 |
