Specs
Technical Specification

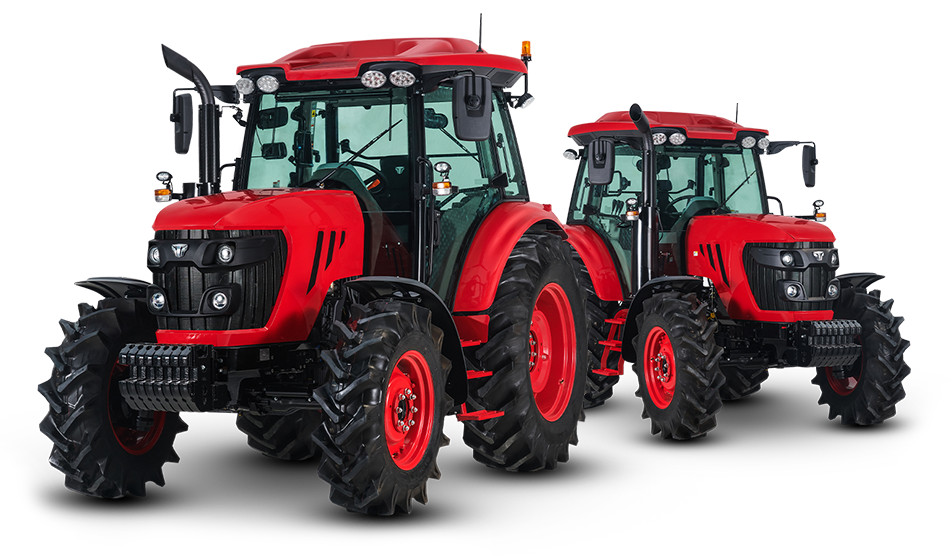

| Tractors Model | T115  | T130  | T754  |
Engine manufacturer | Deutz TCD 3.6L4-C5VT83E | Deutz TCD3.6L4 | Deutz TCD2.9L4 |
Engine power | 111 hp | 83 kW | 127 hp | 95 kW | 74 hp | 55.4 kW |
Rated engine speed | 2200 rpm | 2200 rpm | 2200 rpm |
Displacement | 221 cu. in. | 3621.5 cc | 221 cu. in. | 3621.5 cc | 177 cu. in. | 2900 cc |
No. of speeds | F32 × R32 w/Creep | F36 × R36 w/Creep | F16 x R16 (Creep interlock) |
Hitch lift capacity | 7294.9 lb | 3309 kg | 8260.7 lb | 3747 kg | 5115 lb | 2320 kg |
PTO rear | 540/540E/1000 rpm (Reversible shaft) | 540/540E/1000 rpm (Reversible shaft) | 540/750 540/1000 (Opt) rpm |
Fuel tank | 31.7 gal | 120 L | 50.2 gal | 190 L | 23.8 gal | 90 L |
Overall length with 3-point hitch | 175.2 in. | 4450 mm | 176.8 in. | 4490.7 mm | 155.7 in. | 4002 mm |
Overall width | 89.4 in. | 2270.8 mm | 92.9 in. | 2359.7 mm | 76.4 in. | 1940 mm |
Wheelbase | 93.7 in. | 2380 mm | 102 in. | 2938.8 mm | 86.1 in. | 2188 mm |
Height to top of cabin | 112.2 in. | 2850 mm | 115.7 in. | 2359.7 mm | 103.3 in. | 2624 mm |
Min. ground clearance | 16.7 in. | 424.2 mm | 16.1 in. | 410 mm | 18.3 in. | 465 mm |
Weight with cab | 8940 lb | 4055.1 kg | 10020 lb | 4545 kg | 6052 lb | 2745 kg |
R1 Agricultural - Front | 13.6-24 | 380/85 R28 | FSTR 280/85R24 TL (11R24) |
R1 Agricultural - Rear | 18.4-34 | 460/85 R38(18.4R38) | FSTR 420/85R30 TL (16.9R30) |
| Download | Technical Brochure | Technical Brochure | Technical Brochure |
