Specs
Technical specifications

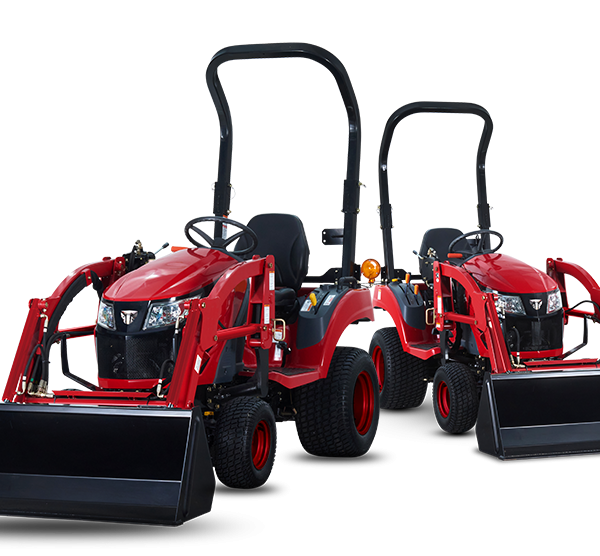

| Tractors Model | T224  | T254  | T264  |
Engine manufacturer | Yanmar 3TNV74F | Yanmar 3TNV80F | TYM T1100N2 |
Engine power | 21.5 hp | 16 kW | 23.9 hp | 17.8 kW | 24 hp | 18 kW |
Rated engine speed | 3200 rpm | 3000 rpm | 2800 rpm |
Displacement | 60.6 cu. in. | 993 cc | 77.3 cu. in. | 1267 cc | 71.7 cu. in. | 1175 cc |
No. of speeds | 2 Range | Infinite 2-Range | Infinite 2-Range |
Hitch lift capacity | 1100 lb | 499 kg | 1214 lb | 551 kg | 1534 lb | 696 kg |
PTO rear | 540 rpm | 540 rpm | 540 rpm |
Fuel tank | 6.6 gal | 25 L | 5.8 gal | 22 L | 6.6 gal | 25 L |
Overall length with 3-point hitch | 94.2 in. | 2394 mm | 100.5 in. | 2553 mm | 107.8 in. | 2740 mm |
Overall width | 44.5 in. | 1130 mm | 45.8 in. | 1164 mm | 52.8 in. | 1342 mm |
Wheelbase | 53.1 in. | 1350 mm | 57.5 in. | 1460 mm | 58.3 in. | 1480 mm |
Height to top of ROPS | 86.6 in. | 2200 mm | 91.3 in. | 2320 mm | 89.8 in. | 2280 mm |
Min. ground clearance | 8.3 in. | 210 mm | 9.4 in. | 240 mm | 7.7 in. | 196 mm |
Weight with ROPS | 1472 lb | 668 kg | 1638 lb | 743 kg | 1881 lb | 853 kg |
Weight with cab | - | - | - |
R1 Agricultural - Front | BAR F 16x6.50-8 | 6.0-12 | - |
R1 Agricultural - Rear | BAR R 24x12.00-12 | 9.5-16 | - |
