Specs
Technical Specification

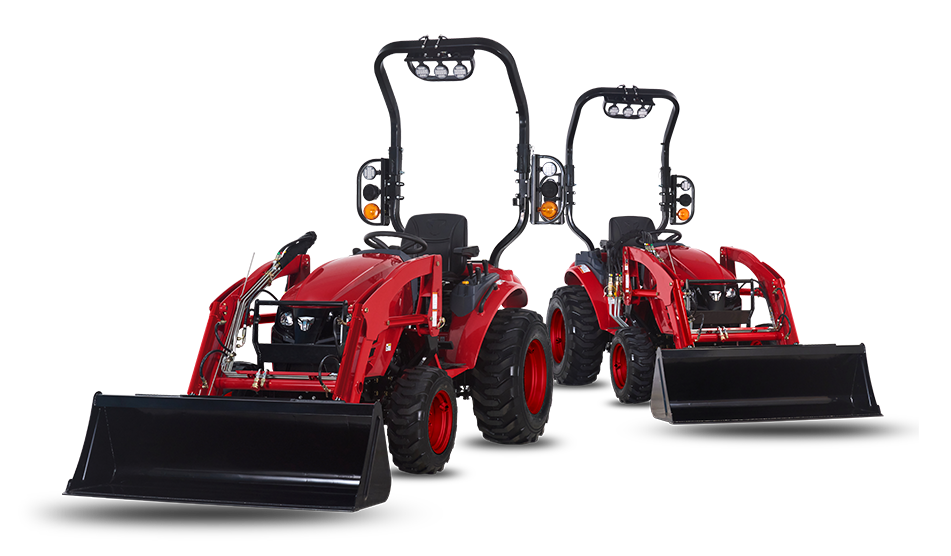

| Tractors Model | T25  | T394  | 2515  |
Engine manufacturer | Yanmar 3TNV80F | Yanmar 3TNV88-CR | TYM T1700N6 |
Engine power | 24.7 hp | 18.4 kW | 37.4 hp | 27.5 kW | 24 hp | 18 kW |
Rated engine speed | 3000 rpm | 3000 rpm | 2100 rpm |
Displacement | 77.3 cu. in. | 1267 cc | 100.2 cu. in. | 1642 cc | 104.5 cu. in. | 1714 cc |
No. of speeds | Infinite 2-Range | F12xR12 | 2515R: F12 x R12 2515H: 3-Range |
Hitch lift capacity | 1551.2 lb | 703.6 kg | 2639 lb | 1197 kg | 3306 lb | 1500 kg |
PTO rear | 540 rpm | 540 rpm | 540 rpm |
Fuel tank | 6.6 gal | 25 L | 9.0 gal | 34 L | 7.1 gal | 27 L |
Overall length with 3-point hitch | 102.8 in. | 2610 mm | 126 in. | 3200 mm | 120.9 in. | 3071 mm |
Overall width | 50 in. | 1270 mm | 53.5 in. | 1360 mm | 56.3 in. | 1430 mm |
Wheelbase | 61 in. | 1550 mm | 64.5 in. | 1640 mm | 65.7 in. | 1670 mm |
Height to top of ROPS | 91.3 in. | 2320 mm | 94.5 in. | 2400 mm | 97.3 in. | 2471 mm |
Min. ground clearance | 10.2 in. | 260 mm | 12.8 in. | 325 mm | 14.4 in. | 366 mm |
Weight with ROPS | 2046 lb | 928 kg | 3020 lb | 1370 kg | 2515R: 1356 kg | 2989 lb 2515H: 1347 kg | 2969 lb |
Weight with cab | - | - | - |
R1 Agricultural - Front | 6-12 4PR | Farm Specialist 8.0-16 NHS TL 6PR | 8-16 |
R1 Agricultural - Rear | 9.5-20 6PR | Farm Specialist 12.4-24 NHS TL 6PR | 12.4-24 |
| Download | Technical Brochure | Technical Brochure | Technical Brochure |
