Specs
Technical specifications

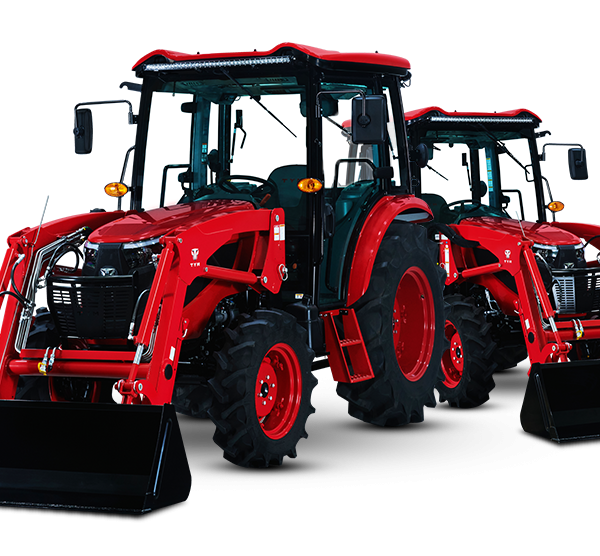

| Tractors Model | T4058PC  | T4058P  | T574C  |
Engine manufacturer | TYM T2300T1-UTC_4 | TYM T2300T1-UTR_4 | TYM T2300T2 |
Engine power | 58 hp | 43.3 kW | 58 hp | 43.3 kW | 55 hp | 41 kW |
Rated engine speed | 2600 rpm | 2600 rpm | 2600 rpm |
Displacement | 139.5 cu. in. | 2287 cc | 139.5 cu. in. | 2286 cc | 139.5 cu. in. | 2286 cc |
No. of speeds | F12 x R12 | F12 x R12 | F8 x R8 |
Hitch lift capacity | 4409 lb | 2000 kg | 4409 lb | 2000 kg | 3822 lb | 1733 kg |
PTO rear | 540 rpm | 540 rpm | 540 rpm |
Fuel tank | 15.3 gal | 58 L | 15.32 gal | 58 L | 17.0 gal | 60 L |
Overall length with 3-point hitch | 141.5 in. | 3595 mm | 141.5 in. | 3595 mm | 141.3 in. | 3590 mm |
Overall width | 68.9 in. | 1750 mm | 68.9 in. | 1750 mm | 63.8 in. | 1620 mm |
Wheelbase | 78.7 in. | 2000 mm | 78.7 in. | 2000 mm | 76.2 in. | 1935 mm |
Height to top of ROPS | - | 104.7 in. | 2660 mm | - |
Min. ground clearance | 18.1 in. | 460 mm | 18.1 in. | 460 mm | 13.8 in. | 350 mm |
Weight with ROPS | - | 4506.2 lb | 2044 kg | - |
Weight with cab | 4951.5 lb | 2246 kg | - | 4233 lb | 1920 kg |
R1 Agricultural - Front | 9.5–20 | 9.5–20 | Farm Specialist 9.5-16 NHS TL 6PR |
R1 Agricultural - Rear | 14.9–28 | 14.9–28 | Farm Specialist 13.6-26 NHS TL 6PR |
| Download | Technical Brochure | Technical Brochure | Technical Brochure |
