Specs
Technical Specification

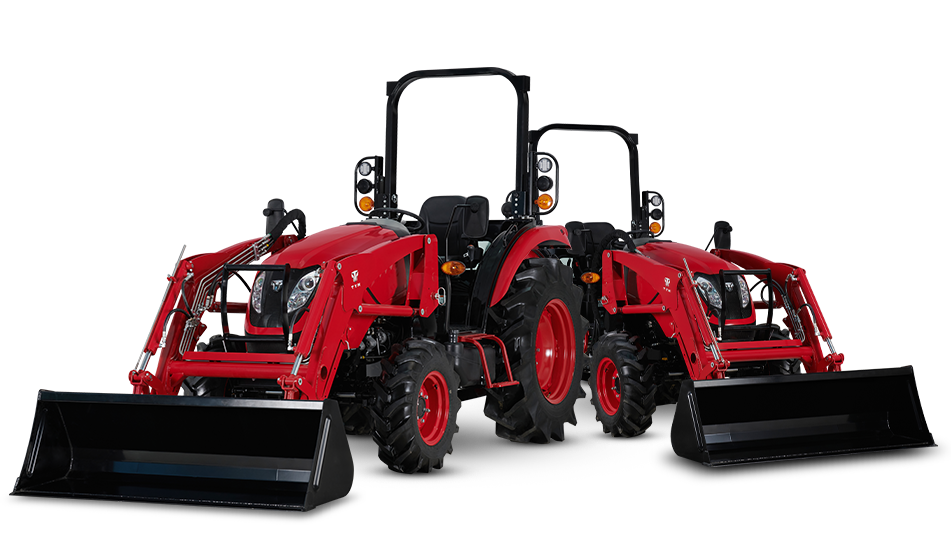

Tractors Model | T454 | T454C | T474 |
Engine manufacturer | Yanmar 4TNV88CR | Yanmar 4TNV88CR | TYM T2300N2 |
Engine power | 46.6 hp | 34.3 kW | 46.6 hp | 34.3 kW | 48.3 hp | 36 kW |
Rated engine speed | 2800 rpm | 2800 rpm | 2600 rpm |
Displacement | 133.6 cu. in. | 2189 cc | 133.6 cu. in. | 2189 cc | 139.5 cu. in. | 2286 cc |
No. of speeds | F16 x R16 | F16xR16 | F12xR12 |
Hitch lift capacity | 3314 lb | 1503 kg | 3314 lb | 1503 kg | 2689.6 lb | 1220 kg |
PTO rear | 540 rpm | 540 rpm | 540 rpm |
Fuel tank | 17.0 gal | 60 L | 17.0 gal | 60 L | 9.0 gal | 34 L |
Overall length with 3-point hitch | 141.3 in. | 3590 mm | 141.3 in. | 3590 mm | 131 in. | 3320 mm |
Overall width | 63.8 in. | 1620 mm | 63.8 in. | 1620 mm | 54.5 in. | 1385 mm |
Wheelbase | 76.2 in. | 1935 mm | 76.2 in. | 1935 mm | 69.7 in. | 1770 mm |
Height to top of ROPS | 102.1 in. | 2594 mm | - | 94.5 in. | 2400 mm |
Min. ground clearance | 13.8 in. | 350 mm | 13.8 in. | 350 mm | 12.8 in. | 325 mm |
Weight with ROPS | 3814 lb | 1730 kg | - | 3289 lb | 1492 kg |
R1 Agricultural - Front | Farm Specialist 9.5-16 NHS TL 6PR | Farm Specialist 9.5-16 NHS TL 6PR | Farm Specialist 8.0-16 NHS TL 6PR |
R1 Agricultural - Rear | Farm Specialist 13.6-26 NHS TL 6PR | Farm Specialist 13.6-26 NHS TL 6PR | Farm Specialist 12.4-24 NHS TL 6PR |
