Specs
Bale Size
- Bale Diameter 36 in - 60 in (91 cm - 150 cm)
- Bale Width 48 in 121.9 cm
- Maximum bale weight 2400 lbs 1088.6 kg
Dimensions and Weights
- Length standard 205 in 520.7 cm
- Length with net 205 in 520.7 cm
- Length with ramp 205 in 520.7 cm
- Height 120 in 304.8 cm
- Width with standard tires 112 in 284.5 cm
- Tires 21.5L-16.1 flotation tire
- Weight fully optioned 10250 lbs 4649.3 kg

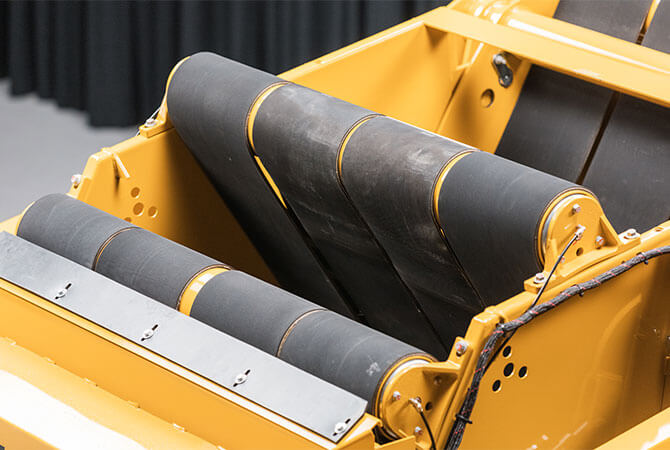

Bale Forming Chamber
- Drive Roller Size 7.1-in (18-cm) rubber and (1) 6.6-in (17-cm) steel
- Drum roller size 9.5 in 24.1 cm
- Idler roller size 6.6 in, 4.5 in (17 cm, 11 cm)
- Start Roller Size 8 in 20.3 cm
- Belt Type Endless belts
- Number of Belts 4
- Width of Belt 11.2 in 28.4 cm
- Length of belt (long) 433 in 1099.8 cm
- Type of Lace No laces
Drive System

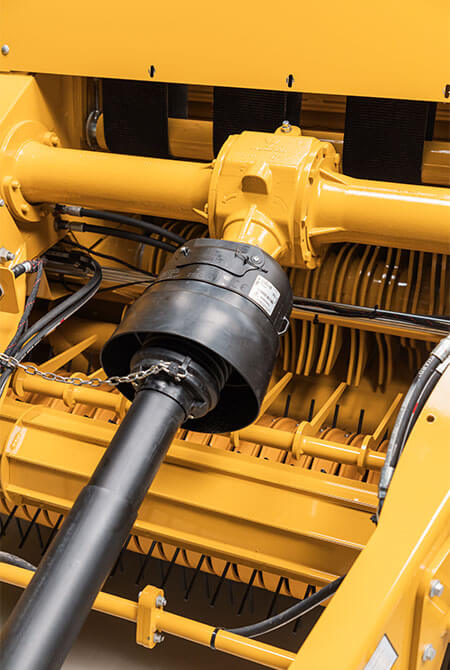

- Driveline 540 rpm, standard lube, cut-out clutch
- Torque protection pickup Radial pin clutch
- Roller chains Single 60, 80, 100 and double 80
- Bearing and Sprocket Configuration Round and hex drive shafts, greaseable roller bearings
Tractor Requirements
- PTO horsepower minimum 80 hp 59.7 kw
- PTO horsepower recommended 110 hp 82 kw

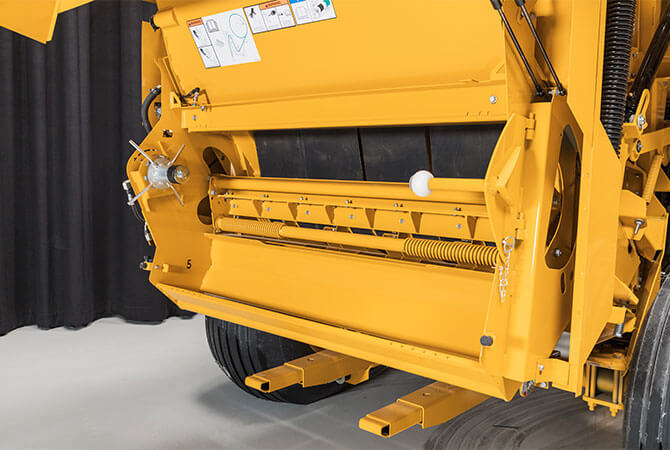

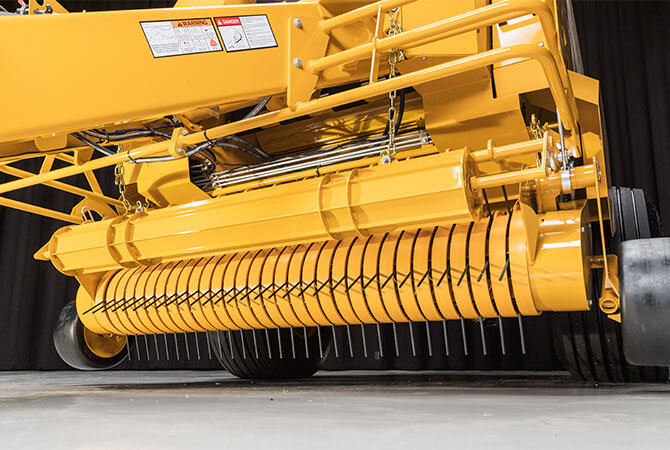

Pickup
- Pickup type Camless wide
- Width tooth to tooth 73 in 185.4 cm
- Width on outside flair 78 in 198.1 cm
- Tooth Bars 5
- Number of Teeth (75) double rubber-mounted
- Teeth spacing 2.5 in (6.4 cm)
- Stripper bands Poly
- Flotation Gauge wheels 7.10-16 HD semi-pneumatic with spring assist
- Pickup Lift Hydraulic
- 3-year pickup warranty Standard
Control system
- Control system type Atlas Pro™ control system
- Display 7-in (18-cm) color touch screen
- Field Statistics 50 fields with names
- Field statistics download USB
- Bale shape indicators Standard
- Bales per hour Standard
Density
- Bale density adjustments Standard through control system monitor
- Density readings Digital gauge
Bale tie system
- Netwrap system Standard
- Net gauge via control system Standard
- Net tension control via control system
- Extra roll storage Standard
Features

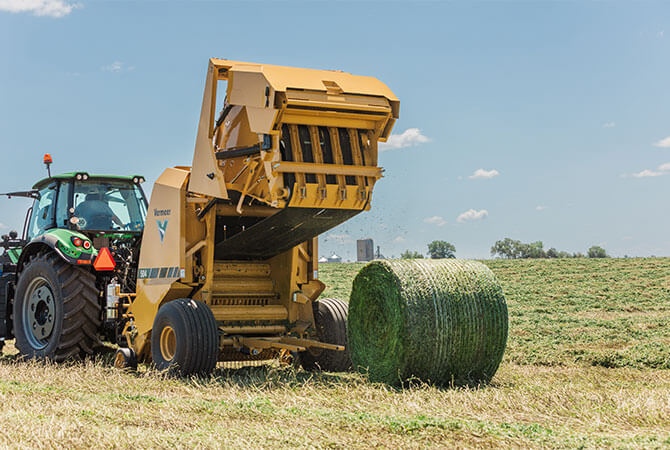

- Bale ramp Spring-loaded
- Grease bank Standard

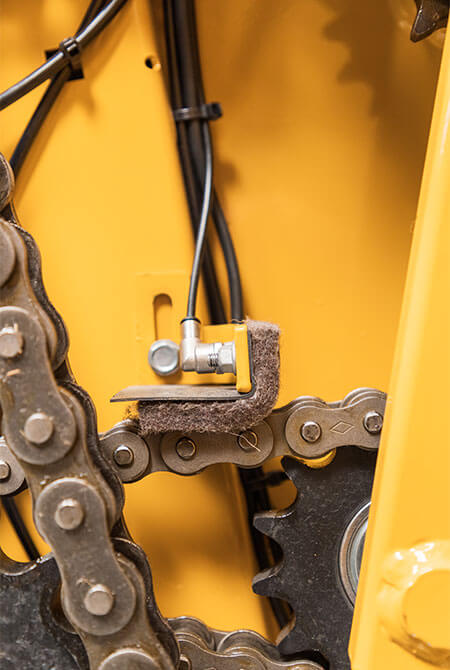

- Automatic chain lube system Optional
- Right-hand door Standard
- LED maintenance lights Optional
- Fire extinguisher, safety chain Optional
