Specs
Bale Size
- Bale Diameter 36 in - 60 in (91.4 cm - 152.4 cm)
- Bale Width 47 in 119.4 cm
- Maximum bale weight 2000 lbs 907.2 kg
Dimensions and Weights
- Length standard 156 in 396.2 cm
- Length with net 173 in 439.4 cm
- Length with ramp 169 in 429.3 cm
- Height 111 in 281.9 cm
- Width with standard tires 100 in 254 cm
- Tires Standard - 31 x 13.5-5; Optional - 480-45 R17 flotation tire
- Weight fully optioned 5460 lbs 2476.6 kg
Bale Forming Chamber
- Drive Roller Size 4.78 in (12.1 cm)
- Idler roller size 3.5 in (8.9 cm)
- Start Roller Size 4.5 in 11.4 cm
- Belt Type Premium mini rough top or endless
- Number of Belts 6
- Width of Belt 6.8 in 17.3 cm
- Length of belt (long) 465.5 in 1182.4 cm
- Length of belt (short) 455.5 in 1157 cm
- Type of Lace Alligator rivet or no laces (endless belts)
- Silage kit Standard
Drive System
- Driveline 540 rpm, extended lube, friction clutch
- Torque protection pickup Radial pin clutch
- Roller chains Single 60 and 80
- Bearing and Sprocket Configuration Round drive shafts and bearings
Tractor Requirements
- PTO horsepower minimum 55 hp 41 kw
- PTO horsepower recommended 65 hp 48.5 kw

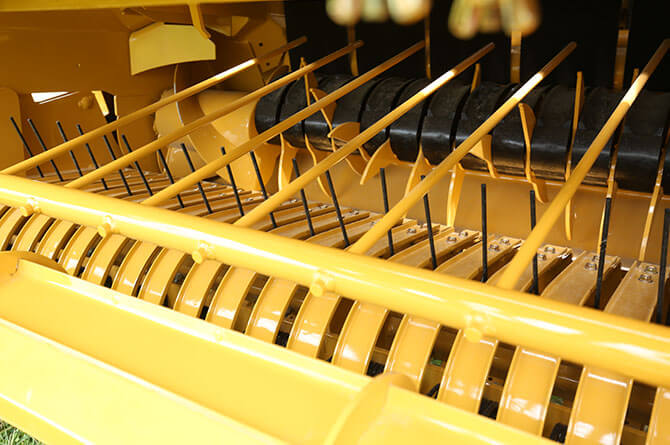

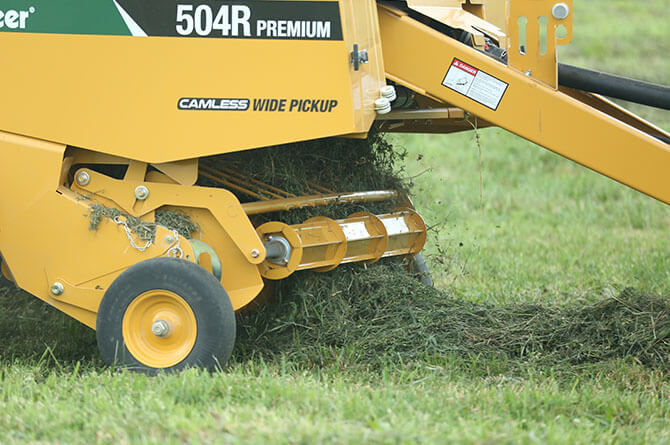

Pickup
- Pickup type Camless wide
- Width tooth to tooth 60 in 152.4 cm
- Tooth Bars 5
- Number of Teeth (60) double steel coil
- Teeth spacing 2.83 in (7.2 cm)
- Stripper bands Steel
- Flotation Gauge wheels 4.8-16 HD semi-pneumatic with spring assist
- Pickup Lift Hydraulic
- 3-year pickup warranty Standard
Control system
- Control system type Atlas Pro™ control system
- Display 7 in (17.8 cm) color touch screen
- Field Statistics 50 fields with names
- Field statistics download USB
- Bale shape indicators Standard
- Moisture Standard - up to 27%
- Bales per hour Standard
Density
- Bale density adjustments Standard manual through hydraulic relief valve
- Density readings Physical gauge
Bale tie system
- Twine system Optional
- Netwrap system Standard
- Net tension control via mechanical adjustment
- Extra roll storage Standard
Features
- Bale ramp Spring-loaded
- Auto Lube greasing system Optional
- Grease bank Standard
- Right-hand door Standard
- LED maintenance lights Optional
- Fire extinguisher, safety chain Optional
