Specs

• Bale Size

  • Bale Diameter 36 in - 60 in (91.4 cm - 152.4 cm)
  • Bale Width 47 in 119.4 cm
  • Maximum bale weight 2000 lbs 907.2 kg

• Dimensions and Weights

  • Length standard 156 in 396.2 cm
  • Length with net 173 in 439.4 cm
  • Length with ramp 169 in 429.3 cm
  • Height 107 in 271.8 cm
  • Width with standard tires 100 in 254 cm
  • Tires Standard - 31 x 13.5-5; Optional - 480-45 R17 flotation tire
  • Weight fully optioned 5400 lbs 2449.4 kg

• Bale Forming Chamber

  • Drive Roller Size 4.78 in (12.1 cm)
  • Idler roller size 3.5 in (8.9 cm)
  • Start Roller Size 4.5 in 11.4 cm
  • Belt Type Standard mini rough top
  • Number of Belts 6
  • Width of Belt 6.8 in 17.3 cm
  • Length of belt (long) 465.5 in 1182.4 cm
  • Length of belt (short) 455.5 in 1157 cm
  • Type of Lace Alligator rivet
  • Silage kit Optional

• Drive System

  • Driveline 540 rpm, standard lube, friction clutch
  • Torque protection pickup Radial pin clutch
  • Roller chains Single 60 and 80
  • Bearing and Sprocket Configuration Round drive shafts and bearings

• Tractor Requirements

  • PTO horsepower minimum 45 hp 33.6 kw
  • PTO horsepower recommended 55 hp 41 kw

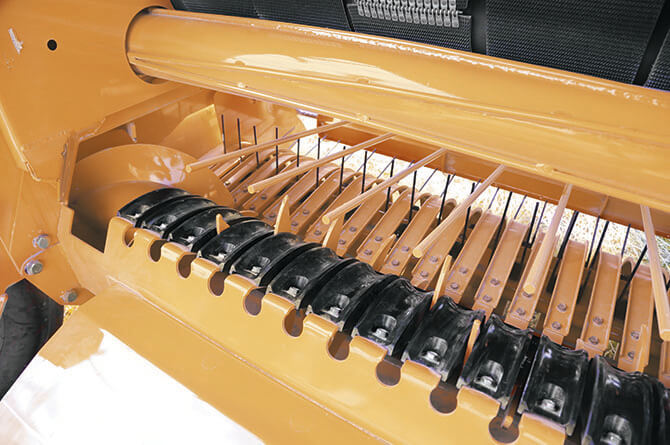

• Pickup

  • Pickup type Camless wide
  • Width tooth to tooth 60 in 152.4 cm
  • Tooth Bars 5
  • Number of Teeth (60) double steel coil
  • Teeth spacing 2.83 in (7.2 cm)
  • Stripper bands Steel
  • Flotation Gauge wheels 4.8-16 HD semi-pneumatic with spring assist

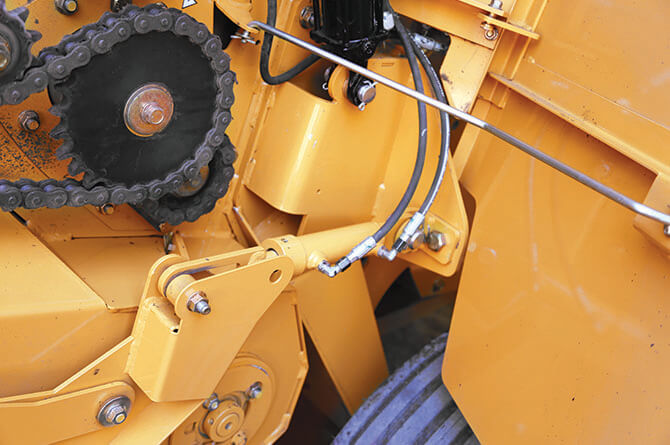

  • Pickup Lift Manual standard, hydraulic optional
  • 3-year pickup warranty Standard

• Control system

  • Control system type Atlas Pro™ control system
  • Display 7 in (17.8 cm) color touch screen
  • Field Statistics 50 fields with names
  • Field statistics download USB
  • Bale shape indicators Standard
  • Moisture Standard - up to 27%
  • Bales per hour Standard

• Density

  • Bale density adjustments Standard manual through hydraulic relief valve
  • Density readings Physical gauge

• Bale tie system

  • Twine system Optional
  • Netwrap system Optional
  • Net tension control via mechanical adjustment
  • Extra roll storage Standard

• Features

  • Bale ramp Optional spring-loaded
  • Right-hand door Standard
  • Fire extinguisher, safety chain Optional
