Specs

• Bale Size

  • Bale Diameter 36 in - 72 in (91.4 cm - 182.9 cm)
  • Bale Width 48 in 121.9 cm
  • Maximum bale weight 2400 lbs 1088.6 kg

• Dimensions and Weights

  • Length standard 213 in 541 cm
  • Height 120 in 304.8 cm
  • Width with standard tires 112 in 284.5 cm
  • Tires 21.5L-16.1 flotation tire
  • Weight fully optioned 10000 lbs 4535.9 kg

• Bale Forming Chamber

  • Drive Roller Size 7.1 in (18 cm) rubber and (1) 6.6 in (16.8 cm) steel
  • Drum roller size 9.5 in 24.1 cm
  • Idler roller size 9.5 in (24.1 cm), 6.6 in (16.8 cm), 4.5 in (11.4 cm)
  • Start Roller Size 8 in 20.3 cm
  • Belt Type Endless belts
  • Number of Belts 4
  • Width of Belt 11.2 in 28.4 cm
  • Length of belt (long) 472.4 in 1199.9 cm
  • Type of Lace No laces

• Drive System

  • Driveline 540 rpm, standard lube, cut-out clutch
  • Torque protection pickup Radial pin clutch
  • Roller chains Single 60, 80, 100 and Double 80
  • Bearing and Sprocket Configuration Round and Hex drive shafts, greaseable roller bearings

• Tractor Requirements

  • PTO horsepower minimum 90 hp 67.1 kw
  • PTO horsepower recommended 120 hp 89.5 kw

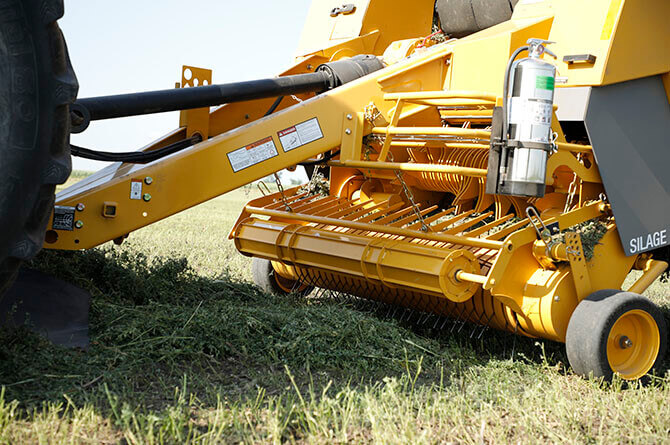

• Pickup

  • Pickup type Camless wide
  • Width tooth to tooth 73 in 185.4 cm
  • Width on outside flair 78 in 198.1 cm
  • Tooth Bars 5
  • Number of Teeth (75) double rubber-mounted
  • Teeth spacing 2.5 in (6.4 cm)
  • Stripper bands Poly
  • Flotation Gauge wheels 7.10-16 HD semi-pneumatic with spring assist
  • Pickup Lift Hydraulic
  • 3-year pickup warranty Standard

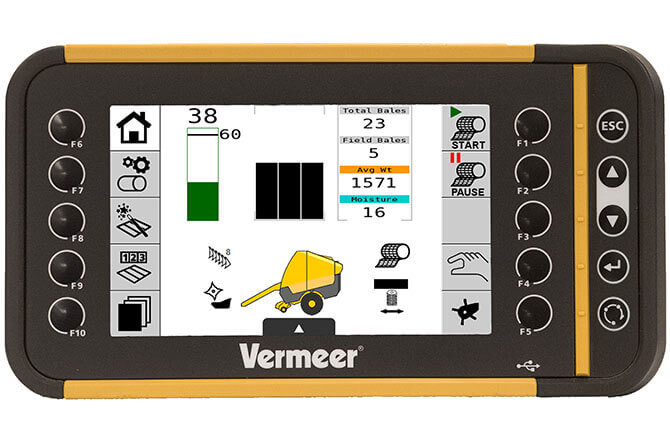

• Control system

  • Control system type Atlas Pro™ control system
  • Display 7 in (17.8 cm) color touch screen
  • Field Statistics 50 fields with names
  • Field statistics download USB
  • Bale shape indicators Standard
  • Bales per hour Standard

• Density

  • Bale density adjustments Standard through control system monitor
  • Density readings Digital gauge

• Bale tie system

  • Netwrap system Standard
  • Net gauge via control system Standard
  • Net tension control via control system
  • Extra roll storage Standard

• Features

  • Bale ramp Spring-loaded
  • Grease bank Standard
  • Automatic chain lube system Optional
  • Right-hand door Standard
  • LED maintenance lights Optional
  • Fire extinguisher, safety chain Optional
