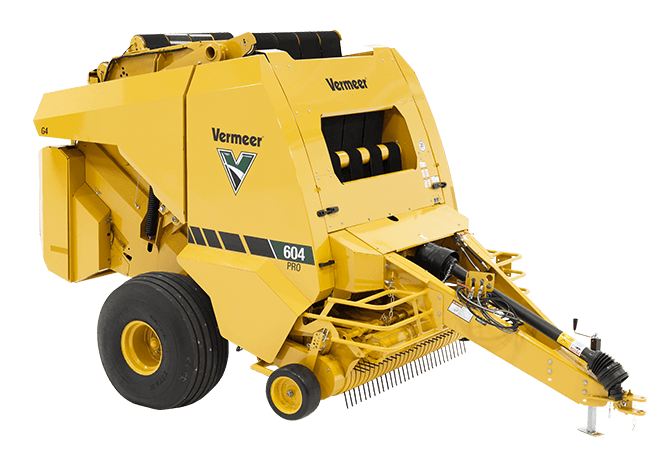

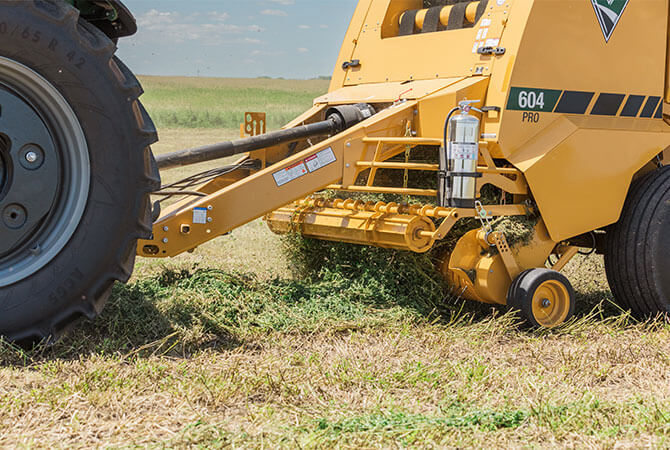

Vermeer 604 Pro G4 Baler

Contact us for price

Stock status: Call Store for Availability

The Vermeer Pro G4 Baler was engineered with versatility, durability and ease of use in mind to produce premium forage for your animals. With a 17-knife chopping system, a convenient and quick netwrap system and smart features like the Atlas Pro™ control system, the Pro G4 Baler was built to work.

Call Us Now

Specs

  • Bale Size

    • Bale Diameter 36 in - 72 in (91 cm - 180 cm)
    • Bale Width 48 in 121.9 cm
    • Maximum bale weight 2400 lbs 1088.6 kg
  • Dimensions and Weights

    • Length standard 213 in 541 cm
    • Length with net 213 in 541 cm
    • Length with ramp 213 in 541 cm
    • Height 120 in 304.8 cm
    • Width with standard tires 112 in 284.5 cm
    • Tires 21.5L-16.1 flotation tire
    • Weight fully optioned 10500 lbs 4762.7 kg
  • Bale Forming Chamber

    • Drive Roller Size 7.1-in (18-cm) rubber and (1) 6.6-in (17-cm) steel
    • Drum roller size 9.5 in 24.1 cm
    • Idler roller size 9.5 in, 6.6 in, 4.5 in (24 cm, 17 cm, 11 cm)
    • Start Roller Size 8 in 20.3 cm
    • Belt Type Endless belts
    • Number of Belts 4
    • Width of Belt 11.2 in 28.4 cm
    • Length of belt (long) 472 in 1198.9 cm
    • Type of Lace No laces

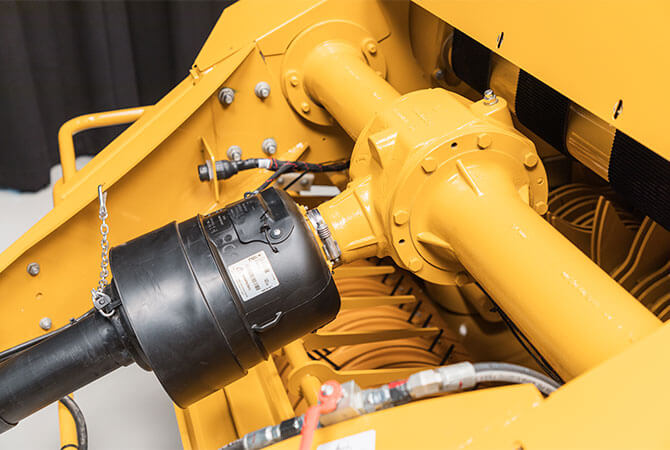

  • Drive System

    • Driveline 540 rpm, standard lube, cut-out clutch
    • Torque protection pickup Radial pin clutch

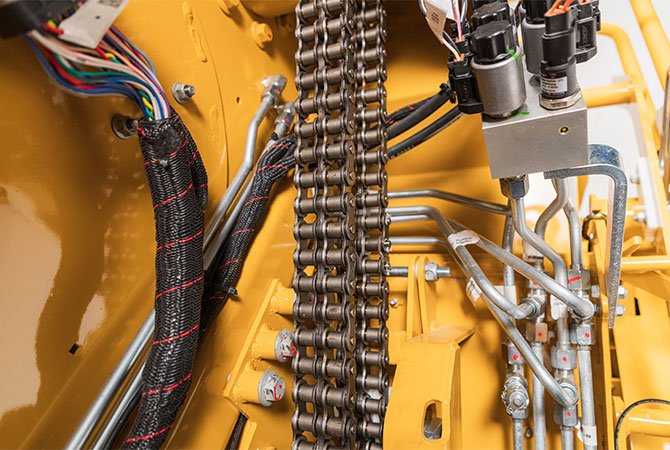

    • Roller chains Single 60, 80 100 and double 80
    • Bearing and Sprocket Configuration Round and hex drive shafts, greaseable roller bearings
  • Tractor Requirements

    • PTO horsepower minimum 90 hp 67.1 kw
    • PTO horsepower recommended 120 hp 89.5 kw

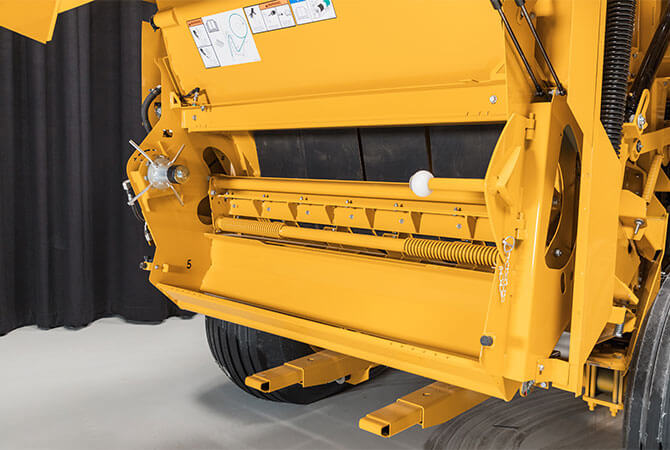

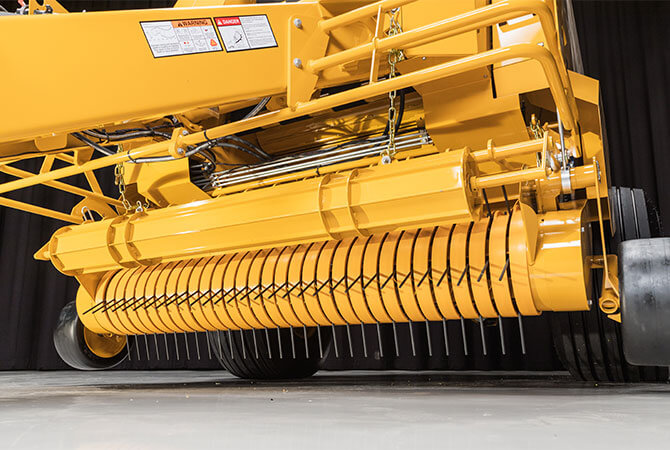

  • Pickup

    • Pickup type Camless wide
    • Width tooth to tooth 73 in 185.4 cm
    • Width on outside flair 78 in 198.1 cm
    • Tooth Bars 5
    • Number of Teeth (75) double rubber-mounted
    • Teeth spacing 2.5 in (6.4 cm)
    • Stripper bands Poly

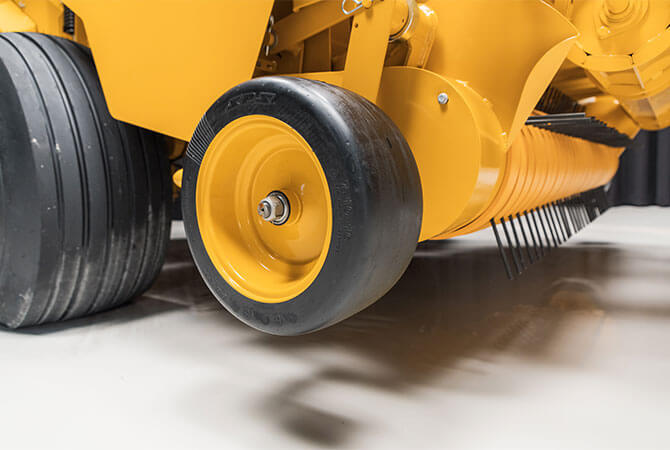

    • Flotation Gauge wheels 7.10-16 HD semi-pneumatic with spring assist
    • Pickup Lift Hydraulic
    • 3-year pickup warranty Standard
  • Control system

    • Control system type Atlas Pro™ control system
    • Display 7-in (18-cm) color touch screen
    • Field Statistics 50 fields with names
    • Field statistics download USB
    • Bale shape indicators Standard
    • Bales per hour Standard
  • Density

    • Bale density adjustments Standard through control system monitor
    • Density readings Digital gauge
  • Bale tie system

    • Netwrap system Standard
    • Net gauge via control system Standard
    • Net tension control via control system
    • Extra roll storage Standard
  • Features

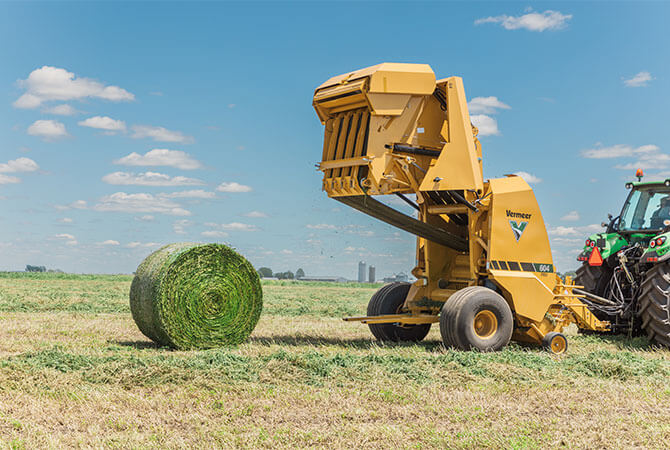

    • Bale ramp Spring-loaded
    • Grease bank Standard
    • Automatic chain lube system Optional
    • Right-hand door Standard
    • LED maintenance lights Optional
    • Fire extinguisher, safety chain Optional
