Specs
Bale Size
- Bale Diameter 36 in - 72 in (91.4 cm - 182.9 cm)
- Bale Width 61 in 154.9 cm
- Maximum bale weight 2400 lbs 1088.6 kg
Dimensions and Weights
- Length standard 166 in 421.6 cm
- Length with net 195 in 495.3 cm
- Length with ramp 195 in 495.3 cm
- Height 117 in 297.2 cm
- Width with standard tires 114 in 289.6 cm
- Width with optional tires 129 in 327.7 cm
- Tires Standard - 14L-16.1; Optional - 21.5L-16.1 flotation tire
- Weight fully optioned 8600 lbs 3900.9 kg
Bale Forming Chamber
- Drive Roller Size 5.5 in (14 cm)
- Drum roller size 12 in 30.5 cm
- Idler roller size 3.5 in (8.9 cm), 4.8 in (12.1 cm), 5.5 in (14 cm)
- Start Roller Size 4.5 in 11.4 cm
- Belt Type Premium mini rough top
- Number of Belts 8
- Width of Belt 6.8 in 17.3 cm
- Length of belt (long) 540 in 1371.6 cm
- Length of belt (short) 533 in 1353.8 cm
- Type of Lace Alligator rivet
- Silage kit Optional
Drive System
- Driveline 540 rpm, standard lube, friction clutch; or 1000 rpm, cut-out clutch
- Torque protection pickup Radial pin clutch or friction with slip-sensing

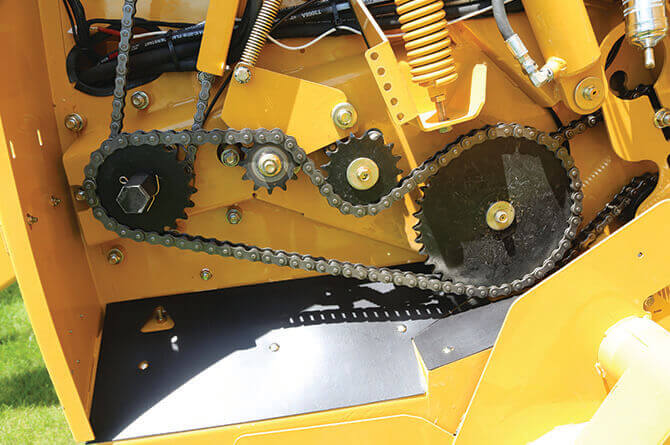

- Roller chains Single 50, 60 and 80
- Bearing and Sprocket Configuration Hex shaft and bearings
Tractor Requirements
- PTO horsepower minimum 80 hp 59.7 kw
- PTO horsepower recommended 100 hp 74.6 kw
Pickup
- Pickup type Cammed wide
- Width tooth to tooth 77 in 195.6 cm
- Width on outside flair 90 in 228.6 cm
- Tooth Bars 10
- Number of Teeth (65) double rubber-mounted
- Teeth spacing 3-1/16 in (7.8 cm)
- Stripper bands Steel
- Flotation Gauge wheels 7.1 - 16 HD semi-pneumatic with spring assist
- Pickup Lift Hydraulic
Control system

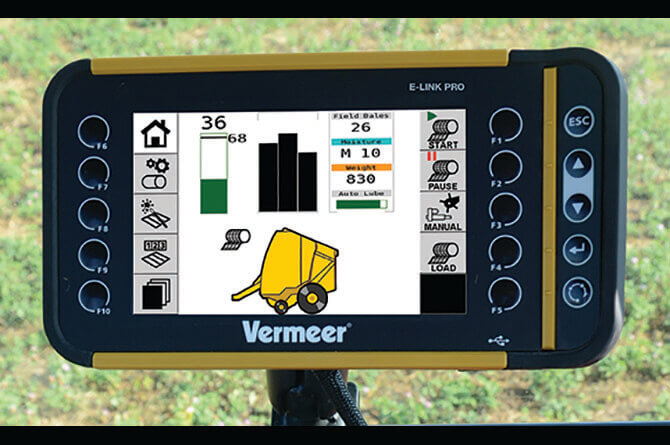

- Control system type E-Link Pro
- Display 7 in (17.8 cm) color touch screen
- Field Statistics 20 customers with 10 fields each
- Field statistics download USB
- Bale shape indicators Standard
- Moisture Standard - up to 27%
- Bales per hour Standard
Density
- Bale density adjustments Standard
- Density readings Physical gauge
- Cylinder size 3 in (7.6 cm)
Bale tie system
- Twine system Optional
- Netwrap system Optional
- Net tension control via mechanical adjustment
- Extra roll storage Standard
Features
- Bale ramp Optional hydraulic
- Auto Lube greasing system Optional
- Grease bank Standard
- Automatic chain lube system Optional
- Right-hand door Standard
- LED maintenance lights Optional
- Fire extinguisher, safety chain Optional
