Specs

• Bale Size

  • Bale Diameter 36 in - 72 in (91 cm - 180 cm)
  • Bale Width 61 in 154.9 cm
  • Maximum bale weight 2400 lbs 1088.6 kg

• Dimensions and Weights

  • Length standard 187 in 475 cm
  • Length with net 187 in 475 cm
  • Length with ramp 208 in 528.3 cm
  • Height 121 in 307.3 cm
  • Width with standard tires 129 in 327.7 cm

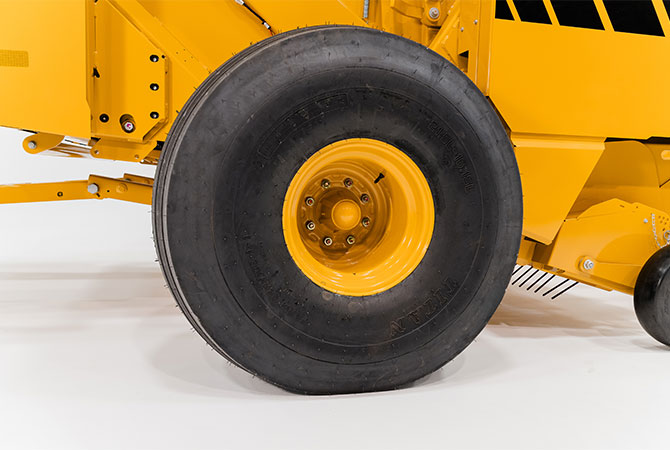

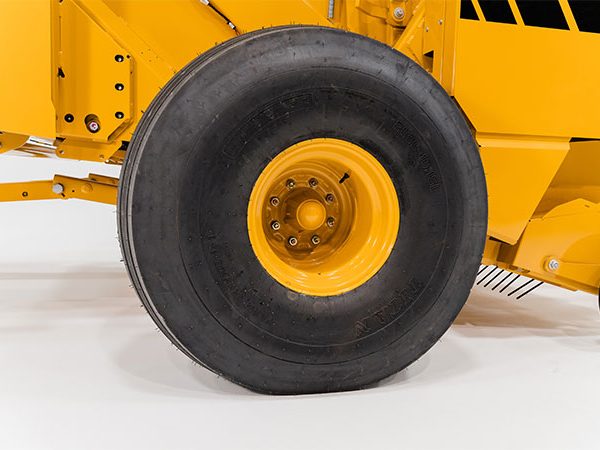

  • Tires 21.5L-16.1
  • Weight fully optioned 8190 lbs 3714.9 kg

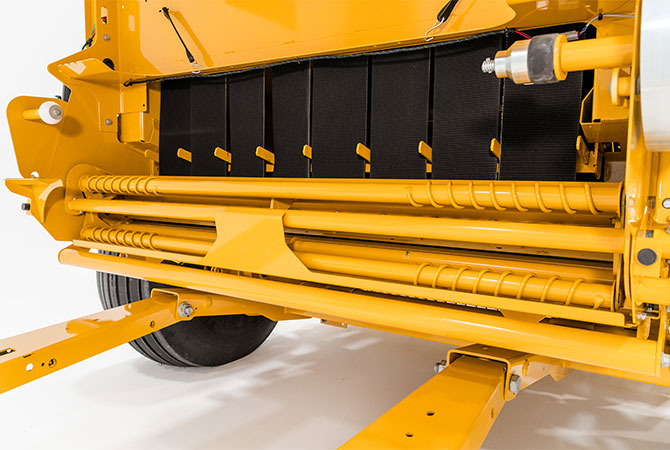

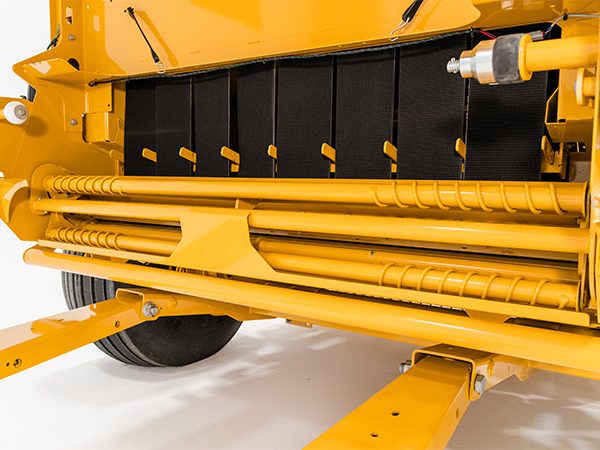

• Bale Forming Chamber

  • Drum roller size 5.5 in 14 cm
  • Idler roller size 3.6 in, 4 in, 5.5 in (8.9 cm, 12 cm, 14 cm)
  • Start Roller Size 5.3 in 13.5 cm
  • Belt Type Standard mini rough top
  • Number of Belts 8
  • Width of Belt 6.8 in 17.3 cm
  • Length of belt (long) 564 in 1432.6 cm
  • Length of belt (short) 557 in 1414.8 cm
  • Type of Lace Alligator rivet
  • Silage kit Optional

• Drive System

  • Driveline 540 rpm standard lube, friction clutch
  • Torque protection pickup Radial pin clutch
  • Roller chains Single 60 and 80
  • Bearing and Sprocket Configuration Hex drive shafts and bearings

• Tractor Requirements

  • PTO horsepower minimum 75 hp 55.9 kw
  • PTO horsepower recommended 100 hp 74.6 kw

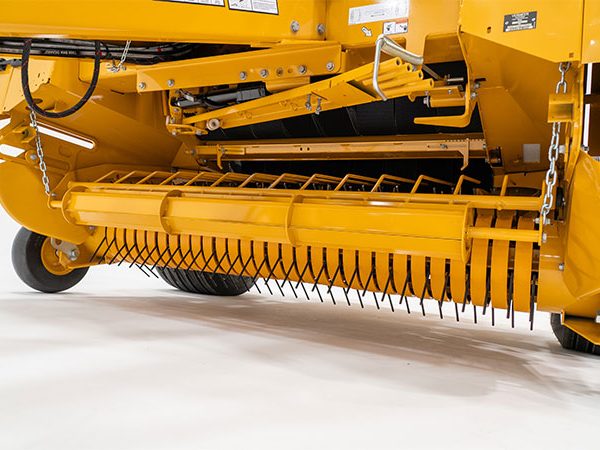

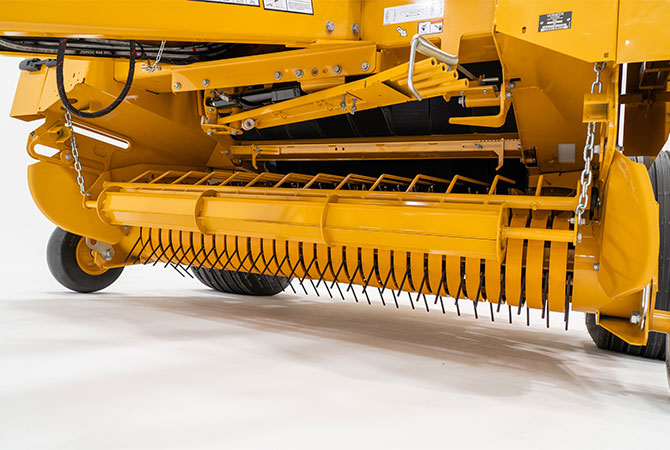

• Pickup

  • Pickup type Camless wide
  • Width tooth to tooth 77 in 195.6 cm
  • Width on outside flair 91 in 231.1 cm
  • Tooth Bars 4
  • Number of Teeth (60) double rubber-mounted
  • Teeth spacing 2.8 in (7.1 cm)
  • Stripper bands Poly
  • Flotation Gauge wheels 4.8 - 16 HD semi-pneumatic with spring assist
  • Pickup Lift Hydraulic
  • 3-year pickup warranty Standard

• Control system

  • Control system type Atlas Pro™ control system
  • Display 7-in (18-cm) color touch screen
  • Field Statistics 50 fields with names
  • Field statistics download USB
  • Bale shape indicators Standard
  • Moisture Standard up to 29%
  • Bales per hour Standard

• Density

  • Bale density adjustments Standard through control system monitor
  • Density readings Physical gauge
  • Cylinder size 3 in (8 cm)

• Bale tie system

  • Twine system Optional
  • Netwrap system Standard
  • Net gauge via control system Standard
  • Net tension control Manual
  • Netlift system Optional
  • Extra roll storage Standard

• Features

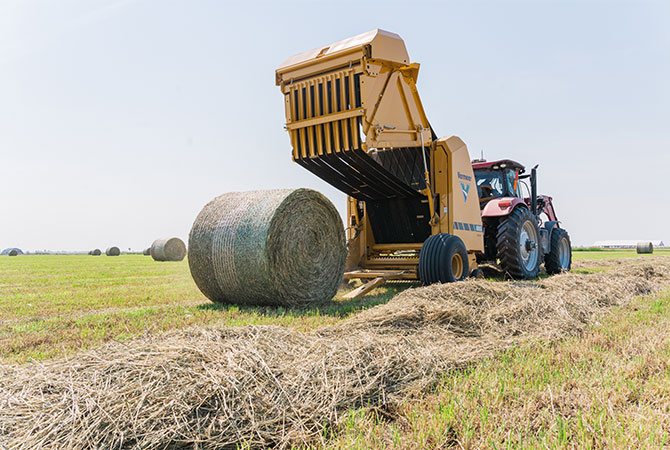

  • Bale ramp Hydraulic
  • Auto Lube greasing system Optional
  • Automatic chain lube system Optional
  • Right-hand door Standard
  • LED maintenance lights Optional
  • Fire extinguisher, safety chain Optional
