Vermeer BPX9010 Bale Processor

Contact us for price

Stock status: Call Store for Availability

BPX9010 highlights

  • Simplicity, durability and versatility
  • An all-around processor ready to perform a variety of applications
  • Waste less, process more
Call Us Now

Specs

  • Dimensions and Weights

    • Length 15.8 ft 4.8 m
    • Height 8.5 ft 2.6 m
    • Transport Width 8.2 ft 2.5 m
    • Working Width 11.2 ft 3.4 m
    • Weight 5240 lbs 2376.8 kg
    • Drawbar Weight 1480 lbs 671.3 kg
    • Axle adjustment 12 in (30.5 cm) each axle
    • Tires Standard: 14L x 16.1FL; Optional: 16.5L -16.1SL 6 SofTrac II flotation tire
  • Tractor Requirements

    • PTO horsepower minimum 85 hp (63 kW)
    • PTO horsepower recommended 100 hp 74.6 kw
    • PTO horsepower maximum 210 hp 156.6 kw
    • PTO speed 1000 rpm
    • Hydraulic Type 3 double-acting (2 double-acting with optional kit)
    • Hydraulics Pressure 2000 psi 137.9 bar
    • Hydraulic flow rate 8 gpm 30.3 L/min
  • Tub

    • Bale rotation 3 roller chains with bolt-on cross slat
    • Bale size capacity (2) bales, 6 ft x 5 ft (1.8 m x 1.5 m)
    • Bale weight capacity 2500 lbs 1134 kg
  • Processing System

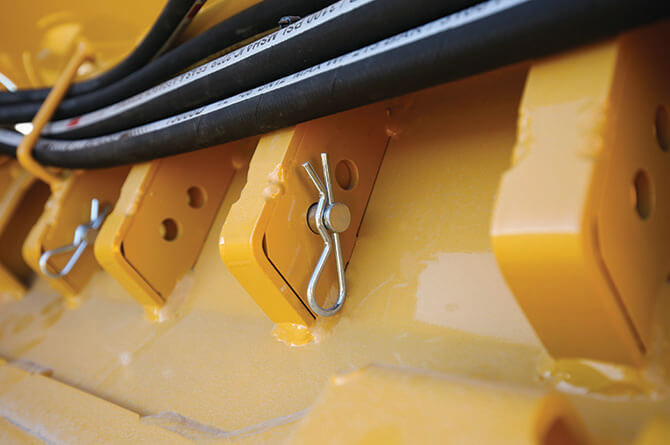

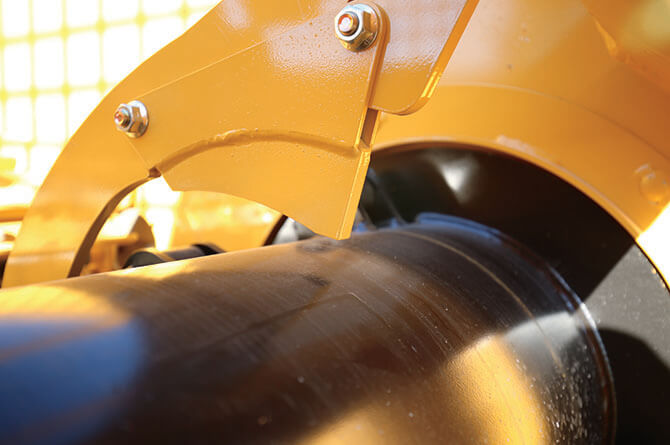

    • Cut Control Bar Adjustment Hand lever with 5 settings, plus an additional high/low setting
    • Cut Control Bar Quantity 7
    • Flail description 7/16 in x 5-9/16 in (1.1 cm x 14.1 cm) in tempered spring
    • Flail Drum Diameter 26.8 in 68.1 cm
    • Flail Drum Length 78 in 198.1 cm
    • Flail Drum Speed 1000 rpm
    • Flail Drum Quantity 30
  • Discharge System

    • Discharge Direction Right hand
    • Horizontal spread distance Up to 50 ft (15.2 m)
  • Features

    • Safety Chain Optional
    • Torque Protection - Driveline Shear bolt
    • Scale kit Optional
    • Material containment kit Optional
    • Powered sidewall Optional
    • Square bale kit Optional
    • Front discharge curtain Optional
