Specs

• Dimensions and Weights

  • Transport Length 18 ft 5.5 m
  • Transport Height 10 ft 3 m
  • Transport Width 9 ft 2.7 m
  • Machine weight 5500 lbs 2494.8 kg
  • Tires (2) 11Lx15-8, (2) 27x10.5 traction

• Specifications

  • Engine Honda, 13 hp or 20 hp (9.7 kW or 14.9 kW)
  • Engine Start Electric
  • Hydraulics Self-contained
  • Hydraulic flow rate 11.5 gpm (43.5 L/min) for 13-hp (9.7-kW) engine; 14 gpm (53 L/min) for 20-hp (15-kW) engine
  • Control System Digital with LCD display
  • Hitch Drawbar
  • Steering Electric over hydraulic joystick
  • Film Stretcher (3) 30 in (76.2 cm) x 55%
  • Bale Alignment Fixed bale guides
  • Wrapping Capacity 120 bales per hour
  • Hoop Speed Digital controller adjusted
  • Bale size maximum (diameter x width) 6-ft x 5-ft (1.7-m x 1.5-m) round

• Features

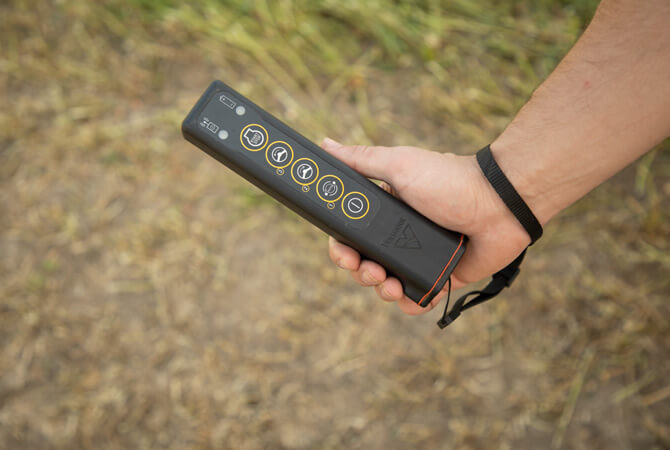

  • Remote Steer, Engine Start/Stop Standard
  • LED work lights Optional
  • Discharge Guide Rollers Optional
  • Plastic Sensor Alert Optional
  • Spring-assisted final bale push off Optional
  • Laser guidance Optional
