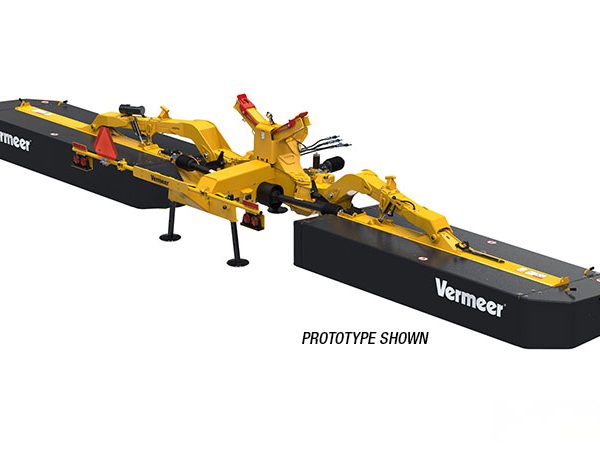

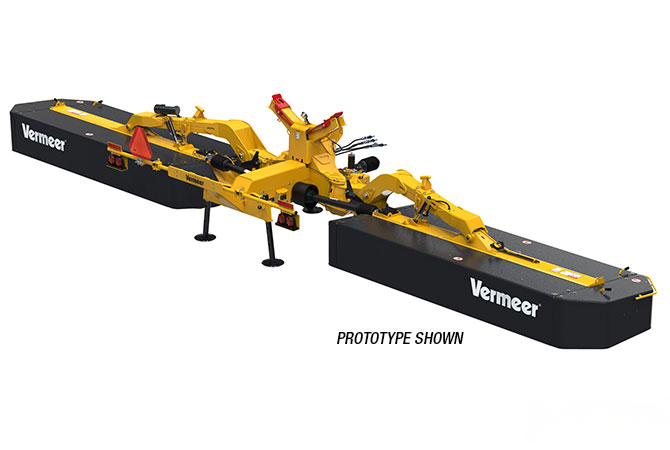

Vermeer CM295 Combination Mower

Vermeer CM295 Combination Mower

Contact us for price

Stock status: Call Store for Availability

CM295 highlights

  • Exceptional efficiency and productivity? Sign me up
  • Perfect for large operations who demand reliability, durability and versatile adaptation
  • Add the FM110 front mower to the mix and you have a triple mower with a working width of 29.8 ft (9.1 m)
Call Us Now

Specs

  • Dimensions and Weights

    • Transport Height 157.5 in 400.1 cm
    • Transport width - standard 10 ft 3 m
    • Transport Length 8.4 ft 2.6 m
    • Cutting Width 29.3 ft 8.9 m
    • Working Height 60 in 152.4 cm
    • Working Width 32 ft 9.8 m
    • Working Length 7.2 ft 2.2 m
    • Cutter bar lift height clearance 22 in 55.9 cm
    • Total Weight 5160 lbs 2340.5 kg
    • Total weight - with rubber roller conditioner 6810 lbs 3089 kg
    • Total weight - with tine conditioner 6658 lbs 3020 kg
    • Suspension Hydraulic
    • Torque Protection Friction and over-running clutch

  • Tractor Requirements

    • Tongue/hitch Front 3-point, CAT II
    • Drive PTO 1000 rpm
    • PTO horsepower recommended 200 hp (150 kW) when used with front mower
    • PTO horsepower recommended - with rubber roller conditioner 240 hp (180 kW) when used with front mower
    • PTO horsepower recommended - with flail conditioner 230 hp (170 kW) when used with front mower
    • Hydraulic Type 2 double-acting, 1 single-acting
    • Hydraulic Pressure 2030 psi 140 bar

  • Cutter bar

    • Cutter bar type Gear bed cutter bar
    • Cut height 1.6 in - 2.8 in (4 cm - 7 cm)
    • Number of Discs 16
    • Disc Speed 3000 rpm
    • Number of Blades 32
    • Angle Adjustment Top-link on 3-point
    • Quick Clip® blade retention system Quick blade change
    • Quick-Changeâ„¢ shear ring 4 brass pins shear protection
    • 3-year limited cutter bar warranty Standard

  • Features

    • Optional swath formation Without conditioner: swath wheels; With conditioner: swathboards
    • Skid Shoes Standard wear skids, optional topping skids
    • Highway Lights Standard

  • Roller Conditioner

    • Type Intermeshing rubber rollers
    • Conditioner Drive (3) V-belt
    • Conditioner Width 105 in 266.7 cm
    • Roller Diameter 8.9 in 22.6 cm
    • Roller Speed 1000 rpm
    • Windrow width minimum 44 in 111.8 cm
    • Windrow width maximum 91 in 231.1 cm
    • Topping high cut kit Optional topping skids

  • Flail conditioner

    • Type Steel V-tine
    • Conditioner Drive Cogged belt
    • Conditioner Width 105 in 266.7 cm
    • Working Diameter 19 in 48.3 cm
    • Tine Speed Low 750 rpm
    • Tine Speed High 1000 rpm
    • Windrow width minimum 75 in 190.5 cm
    • Windrow width maximum 106 in 269.2 cm
    • Topping high cut kit Optional topping skids
