Specs
Dimensions and Weights
- Transport Height 73 in 185.4 cm
- Transport Width - ends up 9.8 ft 3 m
- Transport Width - ends down 12.8 ft 3.9 m
- Transport Length 20.2 ft 6.2 m
- Cutting Width 10.5 ft 3.2 m
- Working Height 73 in 185.4 cm
- Working Width 12.8 ft 3.9 m
- Mower swung out offset 62 in 157.5 cm
- Cutter bar lift height clearance 17 in 43.2 cm
- Total Weight 5140 lbs 2331.5 kg
- Total weight - roller conditioner 5140 lbs 2331.5 kg
- Tongue Weight 1340 lbs 607.8 kg
- Suspension Nitrogen-charged accumulator suspension system
- Torque Protection Friction over - running clutch — cutter bar; Banded V-belt — rollers
- Tires 12.5L-15
Tractor Requirements

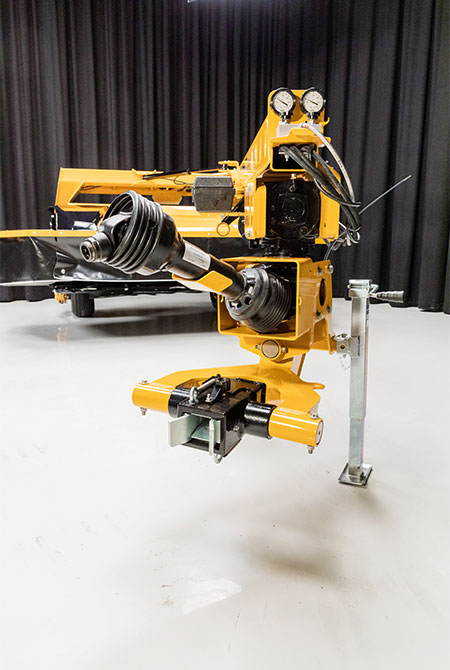

- Tongue/hitch Drawbar with swivel gearbox OR 2-point with swivel gearbox, category II or III N
- Drive PTO 540 rpm
- PTO horsepower recommended 75 hp 55.9 kw
- Hydraulic Type 2 double-acting
- Hydraulic Pressure 1900 psi 131 bar
- Hydraulic flow rate 6 gpm 22.7 L/min

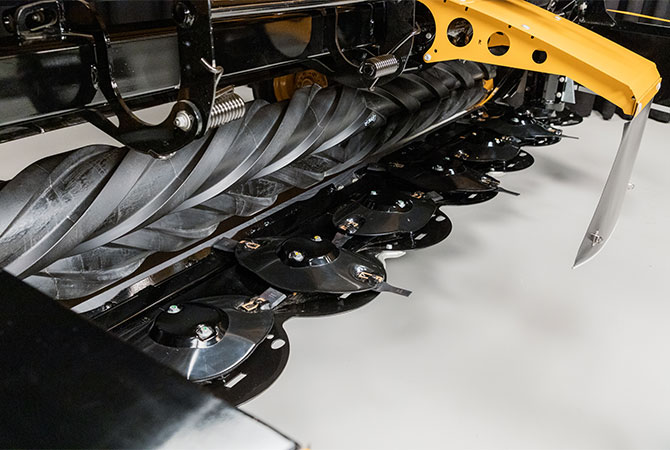

Cutter bar
- Cutter bar type Q3® cutter bar
- Cut height 1 in - 8 in (2.5 cm - 20 cm)
- Number of Discs 7
- Disc Diameter 23 in 58.4 cm
- Disc Speed 2700 rpm
- Number of Blades 14
- Angle Adjustment Hydraulic pitch control
- Quick Clip® blade retention system Standard
- Quick-Changeâ„¢ shear ring Standard

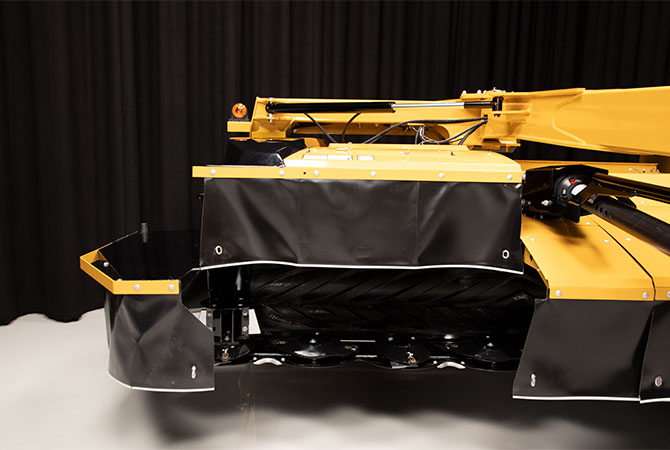

- Curtain material 1,400 gm/m2 polyester woven material with flexible PVC covering
- 3-year limited cutter bar warranty Standard
Features
- Skid Shoes Optional wear skids
- Highway Lights Standard

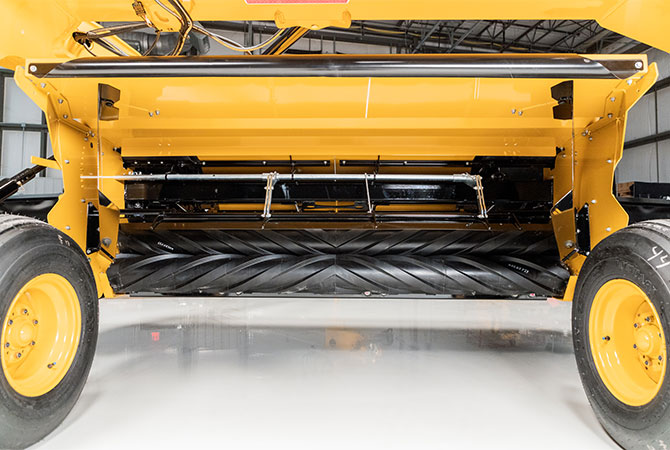

Roller Conditioner

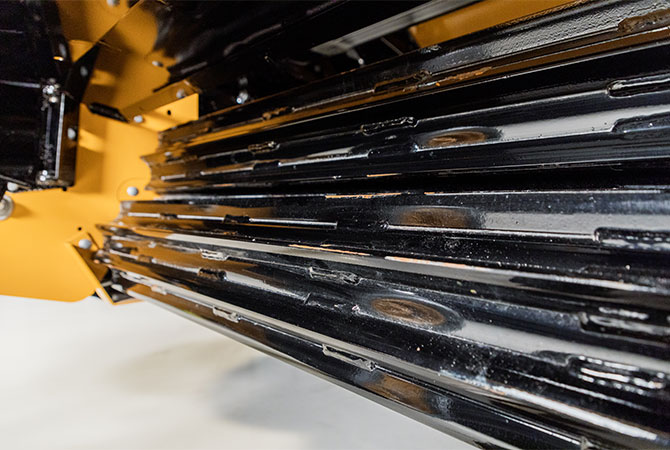

- Type Intermeshing steel rollers or rubber rollers
- Conditioner Drive 4-band banded V-belt
- Conditioner Width 102 in 259.1 cm
- Roller Diameter 9.3 in 23.6 cm
- Roller Speed 740 rpm
- Windrow width minimum 40 in 101.6 cm
- Windrow width maximum 95 in 241.3 cm
- Platform (for tall crops) Standard
- Topping high cut kit Standard
