Specs
Dimensions and Weights
- Transport Height 73 in 185.4 cm
- Transport Width - ends up 8.6 ft 2.6 m
- Transport Width - ends down 11.4 ft 3.5 m
- Transport Length 19.8 ft 6 m
- Cutting Width 9 ft 2.7 m
- Working Height 73 in 185.4 cm
- Working Width 11.4 ft 3.5 m
- Mower swung out offset 54 in 137.2 cm
- Cutter bar lift height clearance 17 in 43.2 cm
- Total Weight 4800 lbs 2177.2 kg
- Total weight - with steel roller conditioner 4800 lbs 2177.2 kg
- Tongue Weight 1340 lbs 607.8 kg

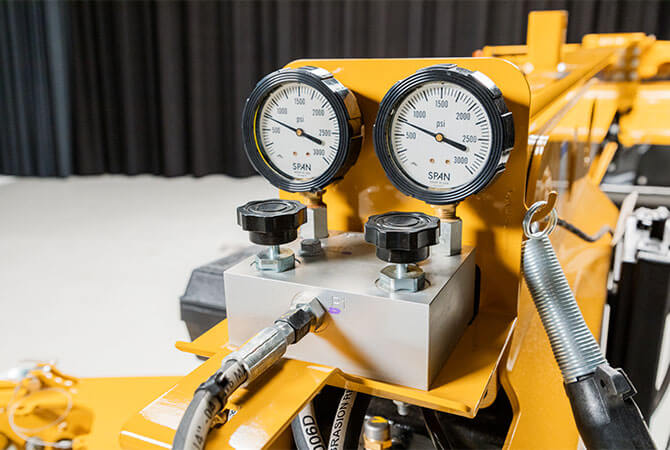

- Suspension Nitrogen-charged accumulator suspension system
- Torque Protection Friction over - running clutch — cutter bar
- Tires 11L-15
Tractor Requirements
- Tongue/hitch Drawbar with swivel gearbox OR 2-point with swivel gearbox, category II or III N
- Drive PTO 540 rpm
- PTO horsepower recommended 65 hp 48.5 kw
- Hydraulic Type 2 double-acting
- Hydraulic Pressure 1900 psi 131 bar
- Hydraulic flow rate 6 gpm 22.7 L/min
Cutter bar
- Cutter bar type Q3® cutter bar
- Cut height 1 in - 8 in (2.5 cm - 20 cm)
- Number of Discs 6
- Disc Diameter 23 in 58.4 cm
- Disc Speed 2700 rpm
- Number of Blades 12
- Angle Adjustment Hydraulic pitch control
- Quick Clip® blade retention system Standard
- Quick-Changeâ„¢ shear ring Standard
- Curtain material 1,400 gm/m2 polyester woven material with flexible PVC covering
- 3-year limited cutter bar warranty Standard
Features
- Skid Shoes Optional wear skids
- Highway Lights Standard
Roller Conditioner
- Type Intermeshing steel rollers or rubber rollers
- Conditioner Drive 4-band banded V-belt
- Conditioner Width 83 in 210.8 cm
- Roller Diameter 9.3 in 23.6 cm
- Roller Speed 740 rpm
- Windrow width minimum 36 in 91.4 cm
- Windrow width maximum 82 in 208.3 cm
- Platform (for tall crops) Standard
- Topping high cut kit Standard
