Specs

• Dimensions and Weights

  • Machine weight 9300 lbs 4218.4 kg
  • Width with standard tires 108 in 274.3 cm
  • Total height 103 in 261.6 cm
  • Loading height 71 in 180.3 cm
  • Tires 425/65 R22.5 New

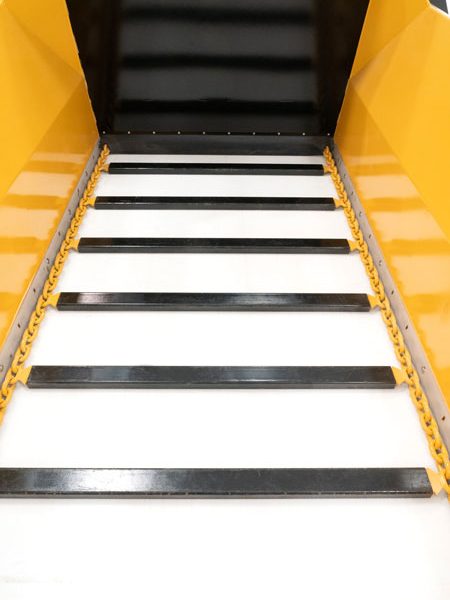

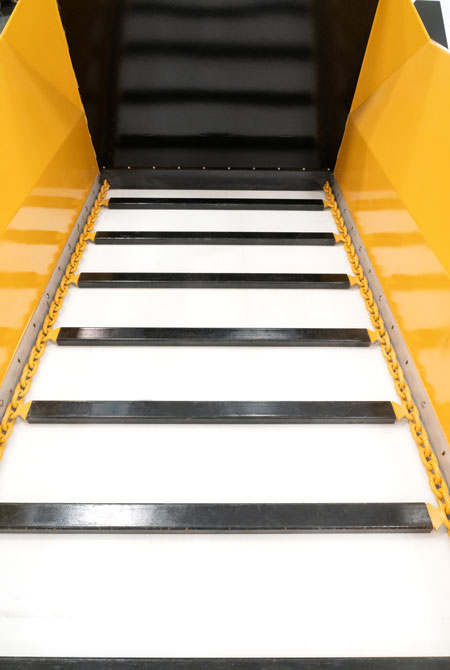

• Box

  • Heaped capacity 300 cu ft 8.5 cu m
  • Maximum net load 19000 lbs 8618.3 kg
  • Inside width of bed 59 in 149.9 cm
  • Inside bed depth, top of flare 37 in 94 cm
  • Inside bed length 165 in 419.1 cm
  • Floor drive RT350/50

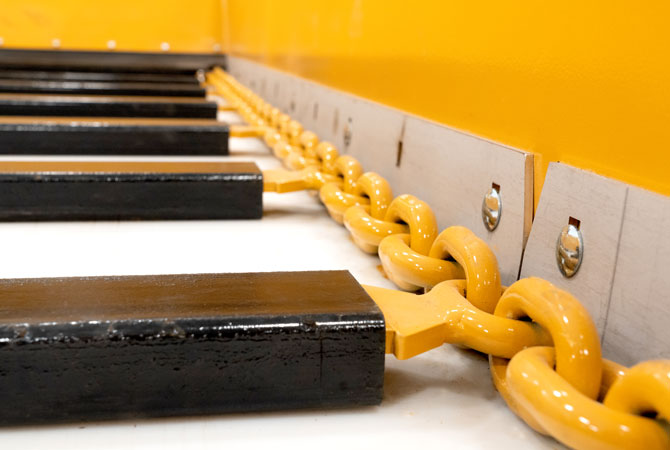

  • Floor chain size 5/8 in (16 mm)
  • Floor plate .2 in (5 mm)
  • Side plate .2 in (4 mm)

• Discharge System

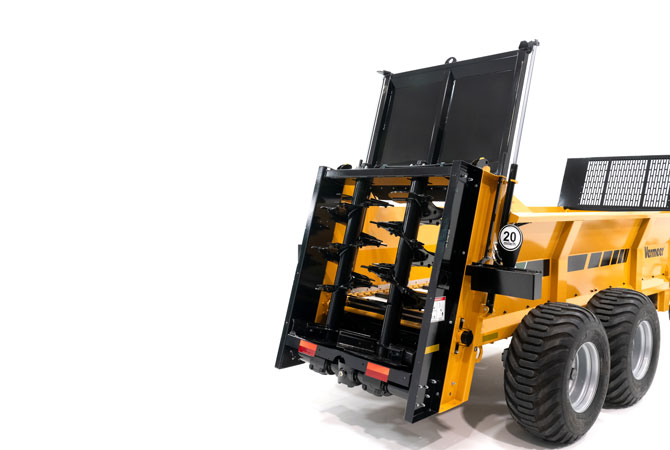

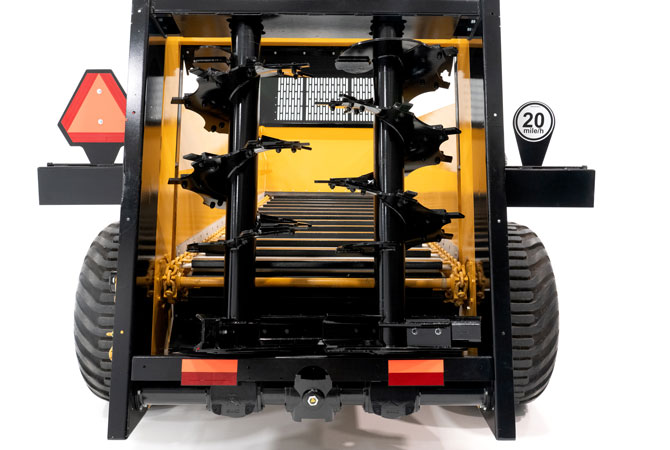

  • Spreading mechanism Twin vertical augers
  • Maximum spread width 52 ft 15.8 m

• Tractor Requirements

  • Recommended PTO horsepower 80 hp 59.7 kw
  • PTO speed 540 rpm or 1,000 rpm
  • Hydraulic Type 2 double-acting
  • Hydraulic flow 20 gpm (80 L/min)
