Specs

• Dimensions and Weights

  • Machine weight 9700 lbs 4399.8 kg
  • Width with standard tires 108 in 274.3 cm
  • Total height 108 in 274.3 cm
  • Loading height 75 in 190.5 cm

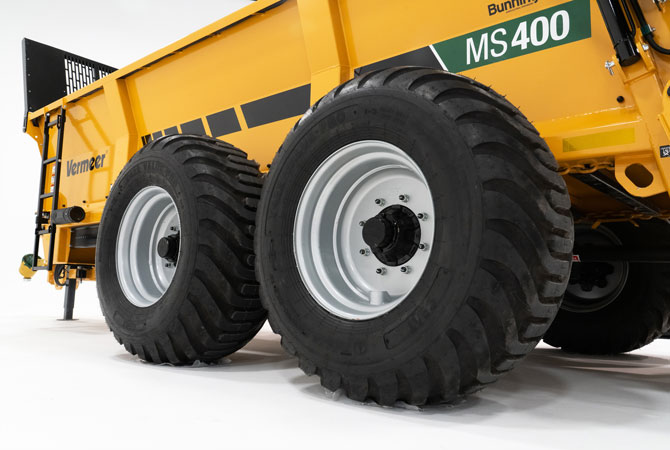

  • Tires 425/65 R22.5 New

• Box

  • Heaped capacity 400 cu ft 11.3 cu m
  • Maximum net load 25000 lbs 11339.8 kg
  • Inside width of bed 59 in 149.9 cm
  • Inside bed depth, top of flare 43 in 109.2 cm
  • Inside bed length 197 in 500.4 cm
  • Floor drive RT350/50

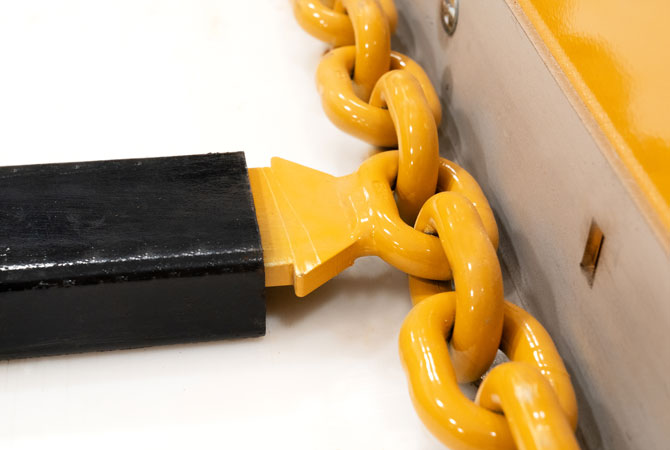

  • Floor chain size 5/8 in (16 mm)
  • Floor plate .2 in (5 mm)

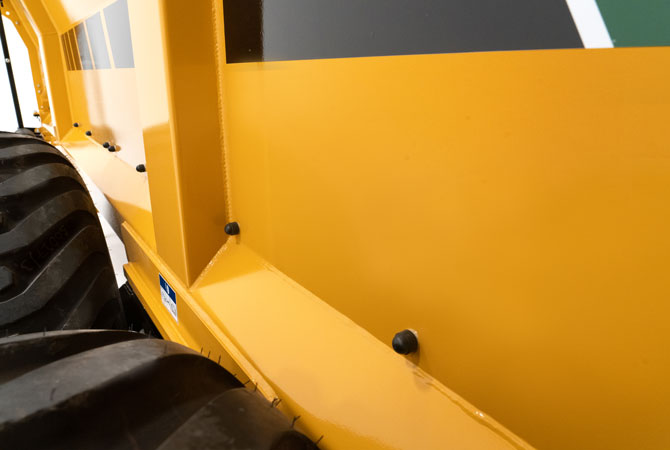

  • Side plate .2 in (4 mm)

• Discharge System

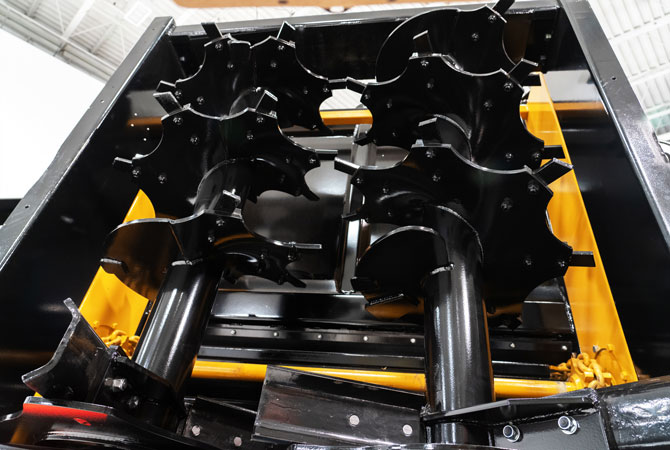

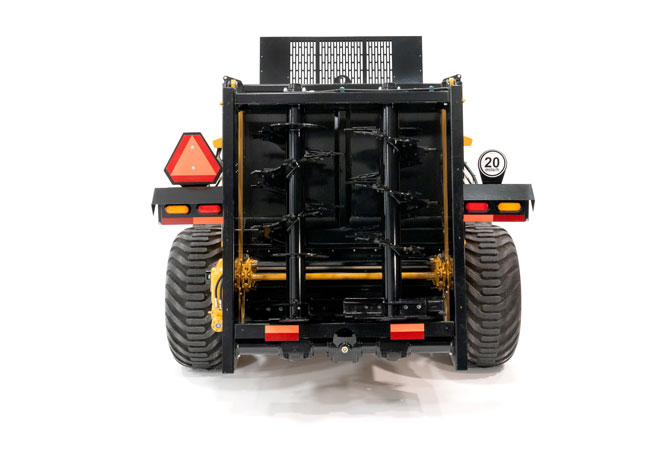

  • Spreading mechanism Twin vertical augers or horizontal beaters and discs
  • Maximum spread width 52 ft 15.8 m

• Tractor Requirements

  • Recommended PTO horsepower 110 hp 82 kw
  • PTO speed 540 rpm or 1,000 rpm
  • Hydraulic Type 2 double-acting
  • Hydraulic flow 20 gpm (80 L/min)
