Contact us for price

Stock status: Call Store for Availability

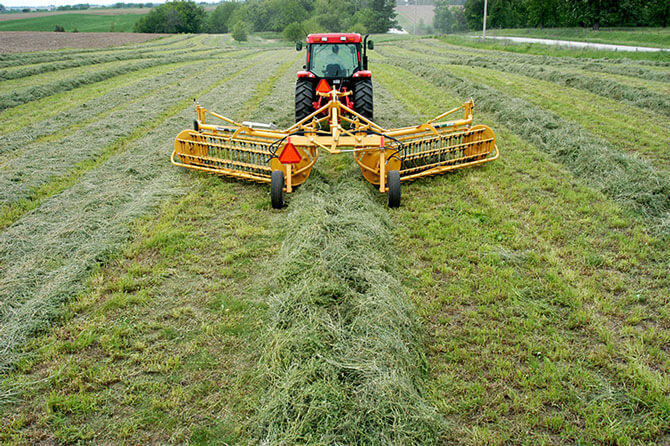

The secret to good bales starts with box-shaped windrows. That’s what the Vermeer R2300 twin rake is designed to produce. Built to last, the R2300 allows you to adjust the width of the windrows to match your baler. Control the width, basket lift and folding/unfolding systems right from the cab of your tractor.

Call Us Now

Specs

  • Dimensions and Weights

    • Raking width minimum 18 ft 5.5 m
    • Raking width maximum 23 ft 7 m
    • Windrow width minimum 36 in 91.4 cm
    • Windrow width maximum 72 in 182.9 cm
    • Transport Width 8.4 ft 2.6 m
    • Transport Length 21.8 ft 6.6 m
    • Transport Height 5.9 ft 1.8 m
    • Total Weight 3220 lbs 1460.6 kg
    • Tongue Weight 1400 lbs 635 kg
    • Transport tire size ST205/75D15
    • Drive Hydraulic

  • Raking components

    • Tines per basket 120
    • Bars per basket 6
    • Basket length 9.5 ft 2.9 m

  • Tractor Requirements

    • PTO horsepower minimum 35 hp 26.1 kw
    • Hydraulic Type 2 double-acting
    • Hydraulic Pressure 1800 psi 124.1 bar
    • Hydraulic flow rate 8 gpm 30.3 L/min

  • Features

    • Highway Lights Optional
    • Center splitter Optional powered
