Specs

• Dimensions and Weights

  • Raking width minimum 19 ft 5.8 m
  • Raking width maximum 28 ft 8.5 m
  • Windrow width minimum 30 in 76.2 cm
  • Windrow width maximum 84 in 213.4 cm

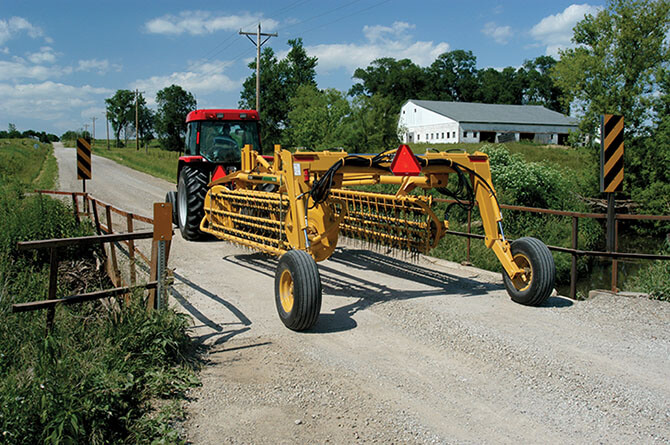

  • Transport Width 8.5 ft 2.6 m
  • Transport Length 24.8 ft 7.6 m
  • Transport Height 6.9 ft 2.1 m
  • Total Weight 4540 lbs 2059.3 kg
  • Tongue Weight 1960 lbs 889 kg
  • Transport tire size 11L-15
  • Drive Hydraulic

• Raking components

  • Tines per basket 182
  • Bars per basket 7
  • Basket length 12 ft 3.7 m
  • Single-side raking Optional

• Tractor Requirements

  • PTO horsepower minimum 70 hp 52.2 kw
  • Hydraulic Type 2 double-acting
  • Hydraulic Pressure 1800 psi 124.1 bar
  • Hydraulic flow rate 8 gpm 30.3 L/min

• Features

  • Highway Lights Optional
  • Center splitter Optional powered
