Specs

• Bale Size

  • Bale Diameter 36 in - 66 in (91.4 cm - 167.6 cm)
  • Bale Width 61 in 154.9 cm
  • Maximum bale weight 1700 lbs 771.1 kg

• Dimensions and Weights

  • Length standard 160 in 406.4 cm
  • Length with net 181 in 459.7 cm
  • Length with ramp 171 in 434.3 cm
  • Height 111 in 281.9 cm
  • Width with standard tires 109 in 276.9 cm
  • Tires 31 x 13.5-15
  • Weight fully optioned 5850 lbs 2653.5 kg

• Bale Forming Chamber

  • Drive Roller Size 5.5 in (14 cm)
  • Drum roller size 12 in 30.5 cm
  • Idler roller size 3.5 in (8.9 cm), 4.8 in (12.1 cm)
  • Start Roller Size 4.5 in 11.4 cm
  • Belt Type Standard mini rough top
  • Number of Belts 8
  • Width of Belt 6.8 in 17.3 cm
  • Length of belt (long) 492 in 1249.7 cm
  • Length of belt (short) 482 in 1224.3 cm
  • Type of Lace Alligator rivet

• Drive System

  • Driveline 540 rpm, standard lube, friction clutch
  • Torque protection pickup Radial pin clutch
  • Bearing and Sprocket Configuration Round drive shafts and bearings — hex shaft on drum

• Tractor Requirements

  • PTO horsepower minimum 60 hp 44.7 kw
  • PTO horsepower recommended 75 hp 55.9 kw

• Pickup

  • Pickup type Standard
  • Width tooth to tooth 57 in 144.8 cm
  • Width on outside flair 72 in 182.9 cm
  • Width of Haysaver wheels *listed for select models only 87 in 221 cm
  • Tooth Bars 5
  • Number of Teeth (50) double rubber-mounted
  • Flotation Spring assist
  • Pickup Lift Manual

• Control system

  • Control system type Bale Expert™
  • Display Monochrome LCD screen
  • Bale shape indicators Standard
  • Moisture Standard - up to 27%

• Density

  • Bale density adjustments Manual adjustment on relief valve
  • Density readings Physical gauge
  • Cylinder size 2.5 in (6.4 cm)

• Bale tie system

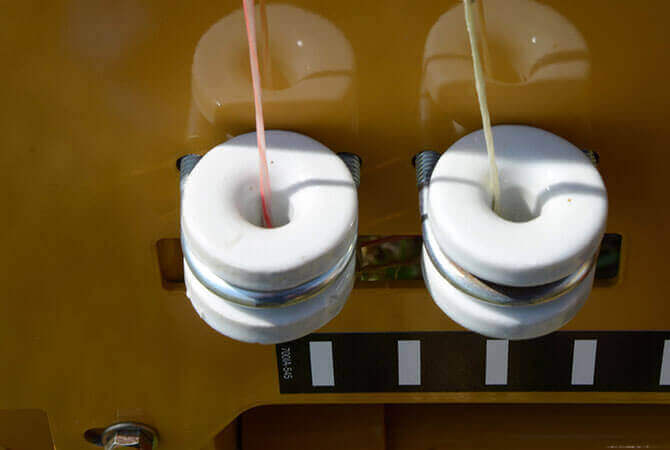

  • Twine system Optional

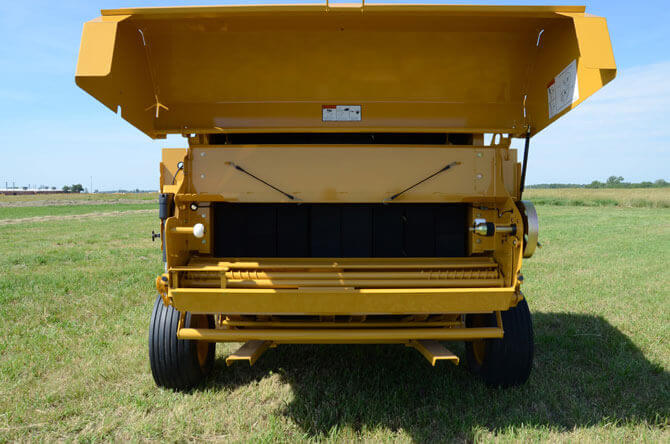

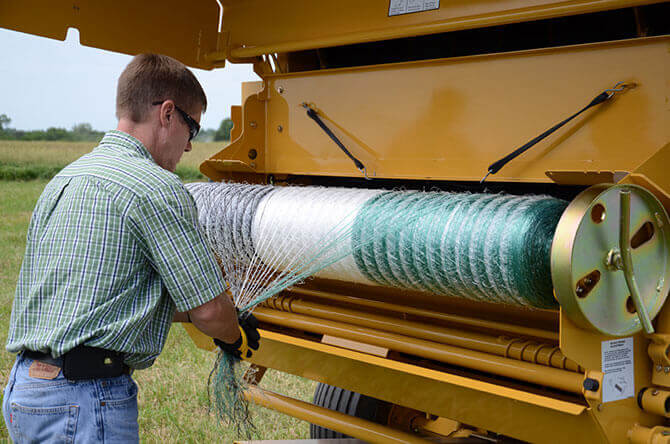

  • Netwrap system Optional
  • Net tension control via mechanical adjustment
  • Extra roll storage Standard

• Features

  • Bale ramp Optional spring-loaded
  • LED maintenance lights Optional
  • Fire extinguisher, safety chain Optional
