Specs

• Dimensions and Weights

  • Raking width minimum 12.7 ft 3.9 m
  • Raking width maximum 15.1 ft 4.6 m
  • Windrow width minimum 28 in 71.1 cm
  • Windrow width maximum 55 in 139.7 cm

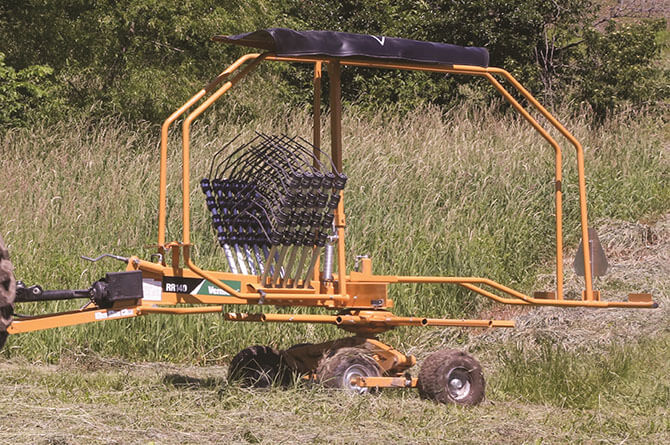

  • Transport Width 6.6 ft 2 m
  • Transport Length 16.4 ft 5 m
  • Transport Height 8.5 ft 2.6 m
  • Total Weight 1676 lbs 760.2 kg
  • Tongue Weight 221 lbs 100.2 kg
  • Transport tire size 18 x 8.5-8
  • Drive PTO, 540 rpm

• Raking components

  • Rotor diameter 135 in 342.9 cm
  • Number of tine arms 11
  • Number of double tines per arm 4

• Tractor Requirements

  • PTO horsepower minimum 30 hp 22.4 kw
  • Hydraulic Type 1 single-acting
  • Hydraulic Pressure 1800 psi 124.1 bar
  • Hydraulic flow rate 8 gpm 30.3 L/min
