Specs

• Dimensions and Weights

  • Tedding width 17 ft 5.2 m
  • Transport Height 8.5 ft 2.6 m
  • Transport Width 9 ft 2.7 m
  • Transport Length 7.2 ft 2.2 m
  • Total Weight 1480 lbs 671.3 kg
  • Tongue Weight 240 lbs 108.9 kg
  • Tire size 18.5 x 8.5-8

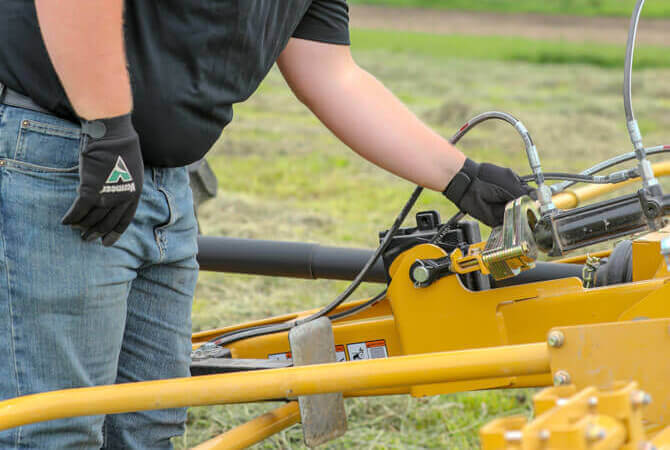

  • Basket tilt and adjustment Hydraulic, toolless adjustment
  • Number of Baskets 4
  • Tine Arms per Basket 6

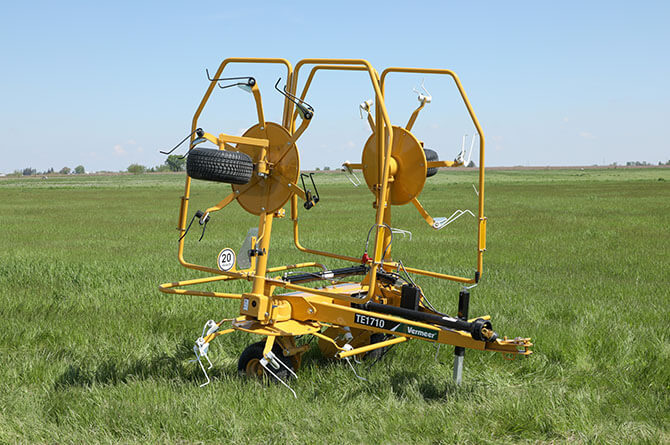

  • Type of Tine Hook tine
  • Torque protection driveline Radial pin clutch

• Tractor Requirements

  • PTO Horsepower Requirements 34 hp 25.4 kw
  • Hydraulic requirements 1 double-acting
  • Hydraulic pressure minimum 2100 psi 144.8 bar
  • Hitch Drawbar clevis connection
  • Drive PTO 540 rpm

• Features

  • SMV Sign Standard
