Specs

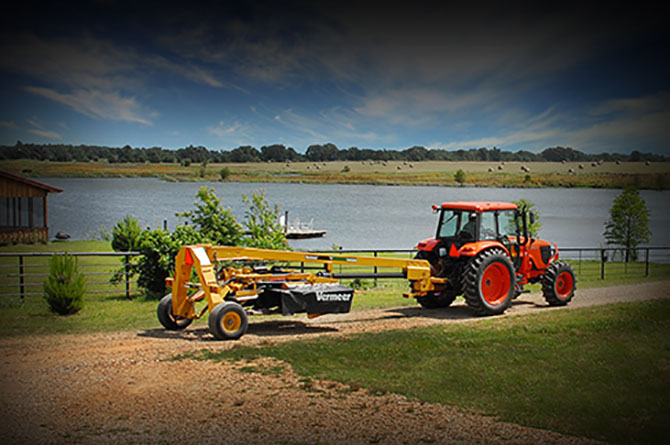

• Dimensions and Weights

  • Transport Height 78 in 198.1 cm
  • Transport width - standard 8.5 ft 2.6 m
  • Transport Length 22 ft 6.7 m
  • Cutting Width 15.5 ft 4.7 m
  • Working Height 78 in 198.1 cm
  • Working Width 22 ft 6.7 m
  • Working Length 18 ft 5.5 m
  • Total Weight 5900 lbs 2676.2 kg
  • Tongue Weight 1580 lbs 716.7 kg
  • Suspension Hydraulic
  • Torque Protection Driveline: friction disc clutch
  • Tires 31x13.5-15

• Tractor Requirements

  • Tongue/hitch 2-point with swivel gearbox, category II or III N
  • Drive PTO 540 or 1000 rpm
  • PTO horsepower recommended 85 hp 63.4 kw
  • Hydraulic Type 2 double-acting
  • Hydraulic Pressure 1500 psi 103.4 bar
  • Hydraulic flow rate 6 gpm 22.7 L/min

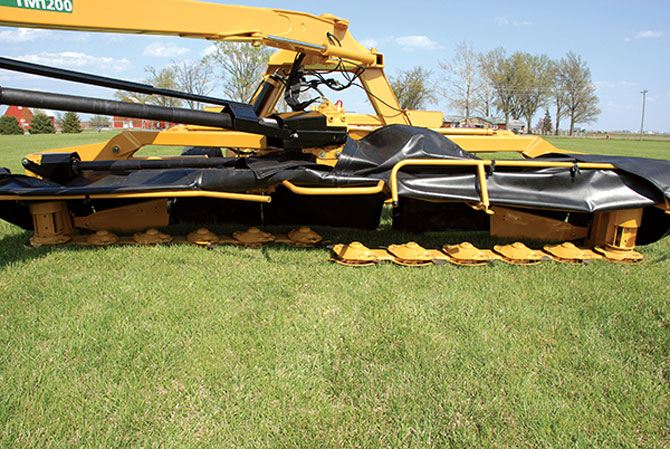

• Cutter bar

  • Cutter bar type Standard
  • Cut height 1.3 in - 3 in (3.2 cm - 7.6 cm)
  • Number of Discs 12
  • Disc Diameter 19.7 in 50 cm
  • Disc Speed 2950 rpm
  • Number of Blades 24
  • Angle Adjustment Hydraulic pitch control
  • Quick Clip® blade retention system Standard
  • Curtain material 1400 g/m2 polyester woven material with flexible PVC covering
  • 3-year limited cutter bar warranty Standard

• Features

  • Optional swath formation Optional swathwheel
  • Skid Shoes Standard modular independent skid shoes; Optional topping wear skids
  • Highway Lights Standard
