Specs

• Dimensions and Weights

  • Raking width minimum 19 ft 5.8 m
  • Raking width maximum 22.6 ft 6.9 m
  • Windrow width minimum 19 in 48.3 cm
  • Windrow width maximum 82 in 208.3 cm

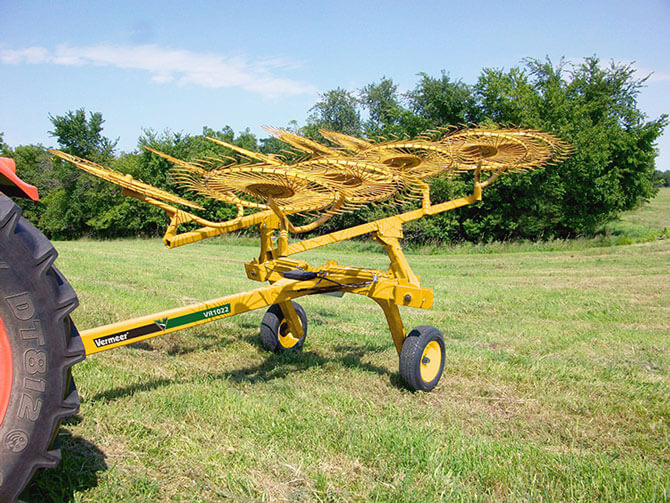

  • Transport Width 10 ft 3 m
  • Transport Length 20.2 ft 6.2 m
  • Transport Height 9.4 ft 2.9 m
  • Total Weight 1520 lbs 689.5 kg
  • Tongue Weight 300 lbs 136.1 kg
  • Transport tire size ST205/75D15
  • Flotation Rubber torsion on toolbar

• Raking components

  • Number of Rake Wheels 10
  • Rake wheel diameter 55 in 139.7 cm
  • Teeth per wheel 40
  • Tooth diameter .3 in .8 cm
  • Rake wheel wind discs Optional
  • Single-side raking Standard left- or right-side capable

• Tractor Requirements

  • PTO horsepower minimum 30 hp 22.4 kw
  • Hydraulic Type 1 double-acting
  • Hydraulic Pressure 1500 psi 103.4 bar
  • Hydraulic flow rate 5 gpm 18.9 L/min

• Features

  • Safety Chain Optional

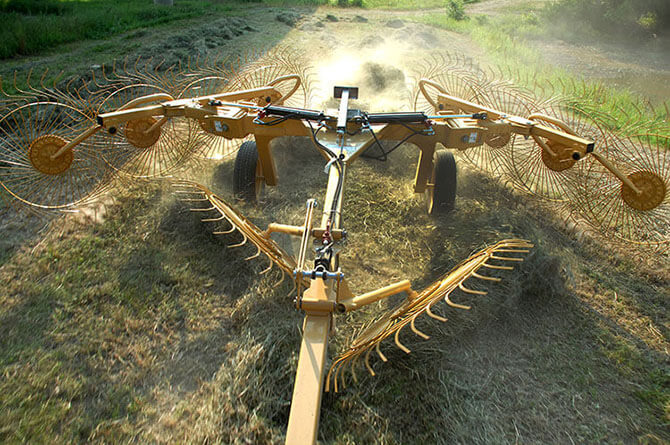

  • Center splitter Optional
