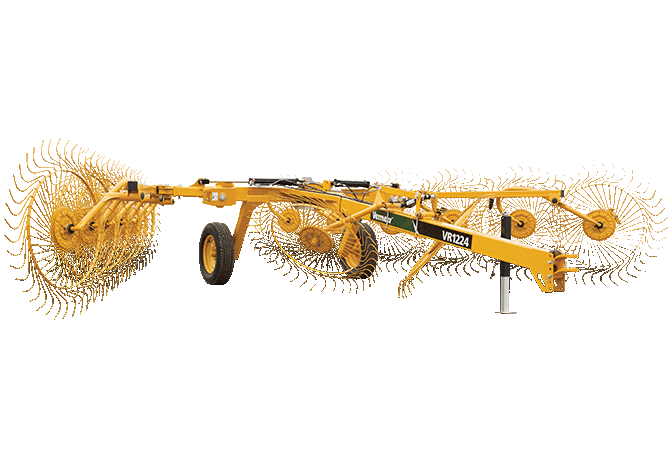

Vermeer VR1224 Carted Wheel Rake

Contact us for price

Stock status: Call Store for Availability

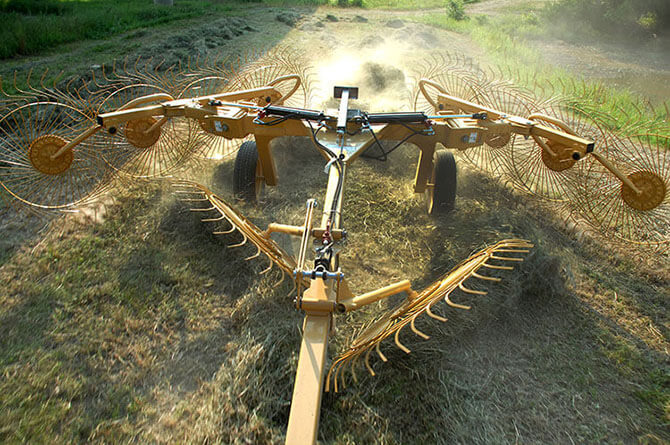

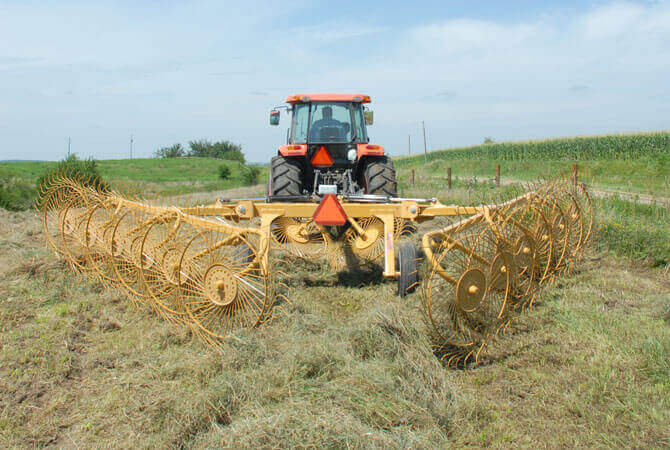

The VR1224 carted wheel rake gives you the capacity, strength and wide-stance balance and posture you need for a heavy diet of hay, starting with the very first cutting. This ruggedly reliable rake cruises across the landscape to get you in and out of the field fast. The VR1224 can be easily adjusted for single- or double-sided raking, and a uniquely designed center splitter attachment option improves windrow dry down and moisture content balance. The telescoping toolbar can be easily adjusted to set the windrow width to fit the intake of your baler.

Call Us Now

Specs

  • Dimensions and Weights

    • Raking width minimum 19.9 ft 6.1 m
    • Raking width maximum 24.4 ft 7.4 m
    • Windrow width minimum 21 in 53.3 cm
    • Windrow width maximum 98 in 248.9 cm
    • Transport Width 10.2 ft 3.1 m
    • Transport Length 23 ft 7 m
    • Transport Height 8.5 ft 2.6 m
    • Total Weight 1812 lbs 821.9 kg
    • Tongue Weight 230 lbs 104.3 kg
    • Transport tire size ST205/75D15
    • Flotation Rubber torsion on toolbar
  • Raking components

    • Number of Rake Wheels 12
    • Rake wheel diameter 55 in 139.7 cm

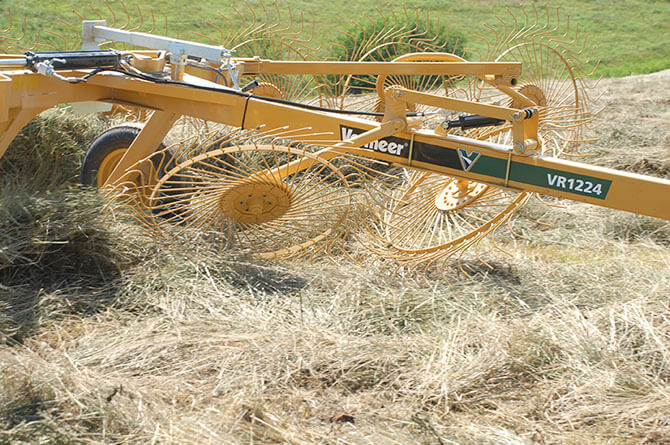

    • Teeth per wheel 40
    • Tooth diameter .3 in .8 cm
    • Rake wheel wind discs Optional
    • Single-side raking Standard left- or right-side capable
  • Tractor Requirements

    • PTO horsepower minimum 30 hp 22.4 kw
    • Hydraulic Type 1 double-acting
    • Hydraulic Pressure 1500 psi 103.4 bar
    • Hydraulic flow rate 5 gpm 18.9 L/min
  • Features

    • Safety Chain Optional
    • Center splitter Optional
