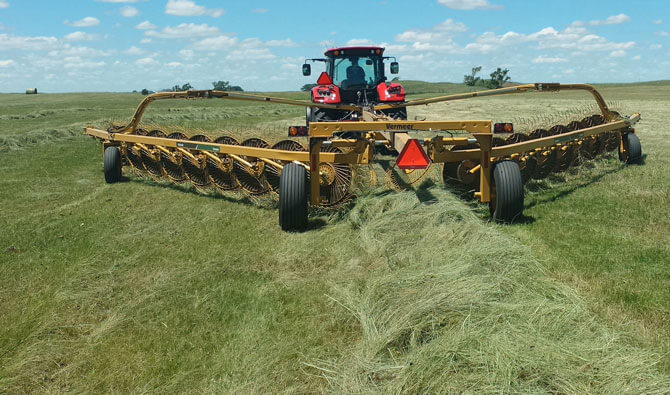

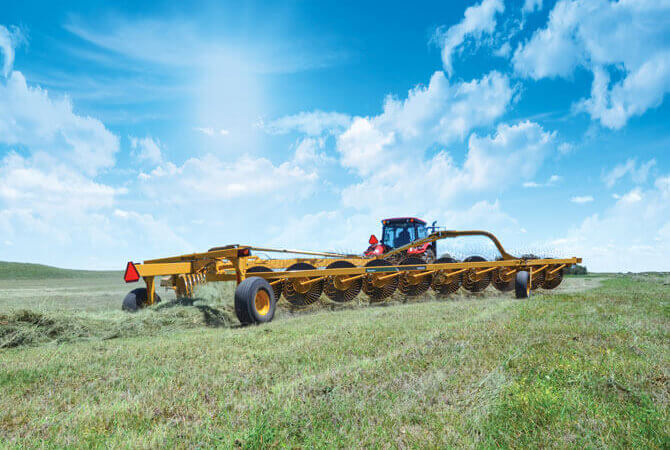

Vermeer VR2040 High-Capacity Wheel Rake

Contact us for price

Stock status: Call Store for Availability

Harness the power and innovation of the Vermeer high-capacity wheel rake in an even larger package with the VR2040 high-capacity wheel rake. A 40-ft (12.2-m) raking width and unique wheel suspension system offer maximum efficiency and raking power. Cover more acres in less time – and with minimal maintenance – with the rugged VR2040 high-capacity wheel rake.

Call Us Now

Specs

Dimensions and Weights
- Raking width minimum 25 ft 7.6 m
- Raking width maximum 40 ft 12.2 m
- Windrow width minimum 36 in 91.4 cm
- Windrow width maximum 72 in 182.9 cm
- Transport Width 12 ft 3.7 m
- Transport Length 38 ft 11.6 m
- Transport Height 6.3 ft 1.9 m
- Total Weight 6780 lbs 3075.4 kg
- Tongue Weight 1840 lbs 834.6 kg
- Transport tire size 14L x 16.1
- Flotation Hydraulic
- Drive Hydraulic
Raking components
- Number of Rake Wheels 20
- Rake wheel diameter 55 in 139.7 cm
- Teeth per wheel 40
- Tooth diameter .3 in .8 cm
- Rake wheel wind discs Optional
Tractor Requirements
- PTO horsepower minimum 60 hp 44.7 kw
- Hydraulic Type 3 double-acting
- Hydraulic Pressure 1800 psi 124.1 bar
- Hydraulic flow rate 5 gpm 18.9 L/min
Features
- Highway Lights Standard
- Safety Chain Optional
- Center splitter Optional
