Specs

• Dimensions and Weights

  • Loading height - standard 139 in 353.1 cm
  • Machine weight - standard 24800 lbs 11249.1 kg
  • Maximum net load 30000 lbs 13607.8 kg
  • Total length 303 in 769.6 cm
  • Transport width - 50-in folding conveyor extension 120 in 304.8 cm
  • Transport width - 119-in bi-directional conveyor 119 in 302.3 cm
  • Working width - 50-in folding conveyor extension 138 in 350.5 cm
  • Working width - 119-in bi-directional conveyor 119 in 302.3 cm

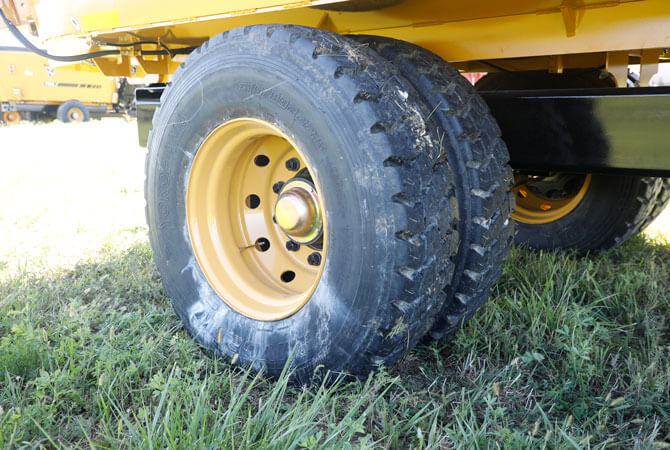

  • Tires (retread) Standard 315/80R-22.5 dual; Optional 255/70R-22.5 dual, tandem; 445/50R-22.5 tandem

• Tub and screws

  • Capacity 1150 cu ft 32.6 cu m
  • Number of screws 2
  • Number of knives per screw 11
  • Tub wall thickness 3/8 in (9.5 mm)
  • Tub wall material AR200
  • Floor thickness 1 in (2.5 cm)
  • Screw flighting thickness 3/4 in (19.1 mm)
  • Screw flighting material AR200

• Discharge System

  • Discharge style Front conveyor
  • Discharge Direction Left or right
  • Folding conveyor extension length 25 in/40 in/50 in (64 cm/100 cm/130 cm)

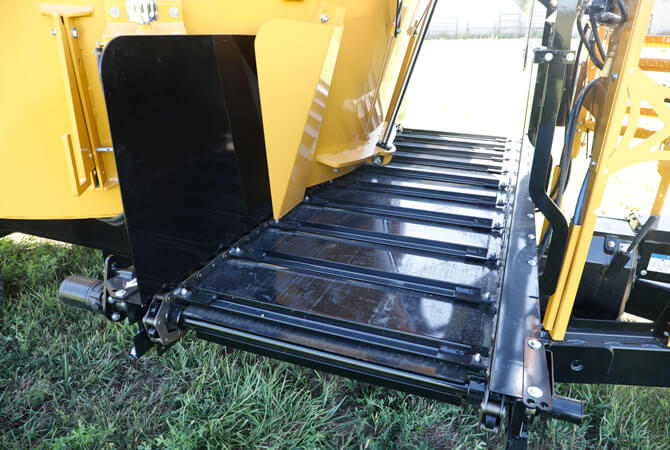

  • Bi-directional conveyor length 101 in/110 in/119 in (257 cm/280 cm/302 cm) OR 101 in (257 cm) hydraulic shift

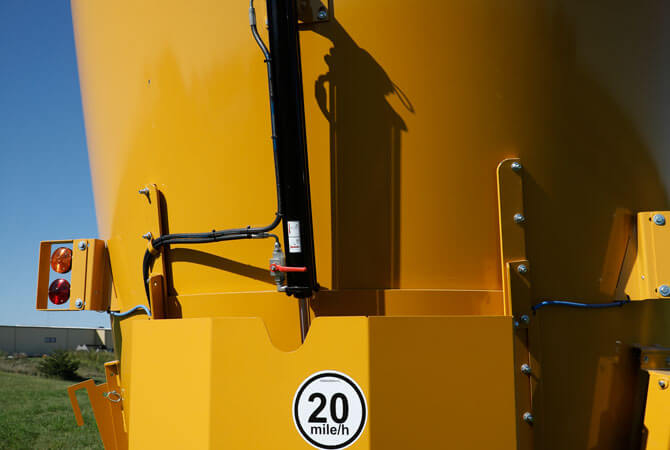

  • Rear discharge door Optional

• Tractor Requirements

  • Minimum PTO horsepower 190 hp (2-speed) (140 kW)
  • Recommended PTO horsepower 220 hp 164.1 kw

• Drive System

  • Driveline 1,000 rpm, CV

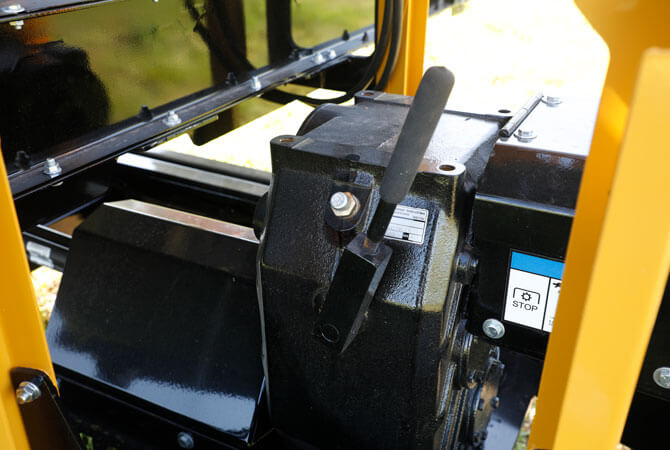

  • Two-speed gearbox Optional
  • Torque Protection Shear bolt
  • Screw rpm 34 (1-speed); 34/23 (2-speed)

• Scale system

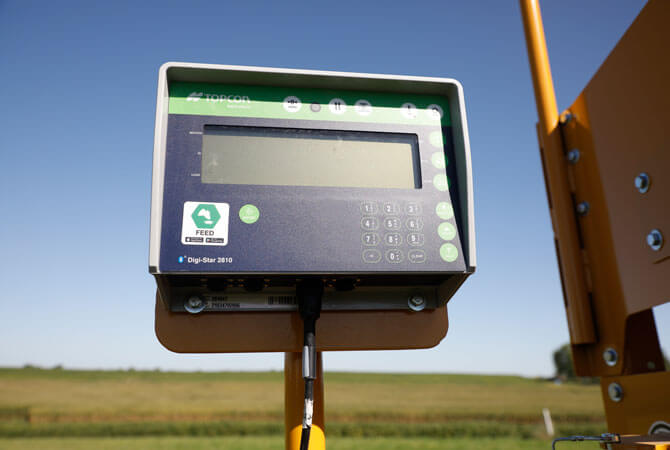

  • Scale display Digi-Star EZ2810-BT
  • Number of weigh bars 4
  • Bluetooth connectivity Standard

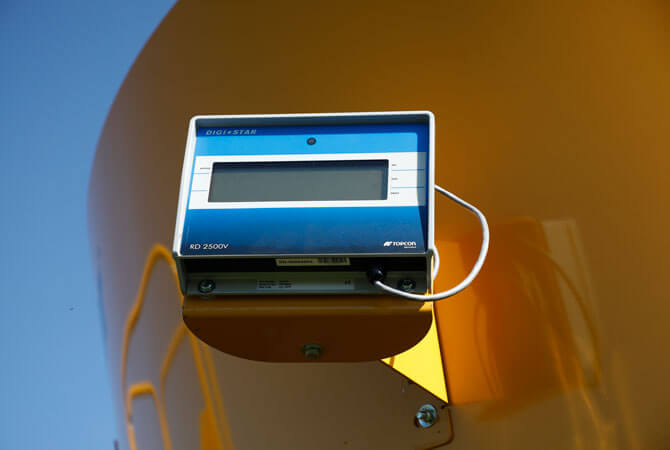

  • Remote Display Standard
