Specs

• Dimensions and Weights

  • Loading height - standard 123 in 312.4 cm
  • Machine weight - standard 17535 lbs 7953.7 kg
  • Maximum net load 21000 lbs 9525.4 kg
  • Total length 277 in 703.6 cm
  • Transport width - 50-in folding conveyor extension 113 in 287 cm
  • Working width - 50-in folding conveyor extension 130 in 330.2 cm
  • Tires (retread) Standard 255/70R-22.5 dual; Optional 425/65R-22.5

• Tub and screws

  • Capacity 750 cu ft 21.2 cu m
  • Number of screws 2
  • Number of knives per screw 7
  • Tub wall thickness 3/8 in (9.5 mm)
  • Tub wall material AR200
  • Floor thickness 1 in (2.5 cm)
  • Screw flighting thickness 3/4 in (19.1 mm)
  • Screw flighting material AR200

• Discharge System

  • Discharge style Front conveyor
  • Discharge Direction Left or right
  • Folding conveyor extension length 25 in/40 in/50 in (64 cm/100 cm/130 cm)
  • Bi-directional conveyor length 101 in/110 in/119 in (257 cm/280 cm/302 cm) OR 101 in (257 cm) hydraulic shift
  • Rear discharge door Optional

• Tractor Requirements

  • Minimum PTO horsepower 150 hp (2-speed) (110 kW)
  • Recommended PTO horsepower 180 hp 134.2 kw

• Drive System

  • Driveline 1,000 rpm, CV
  • Two-speed gearbox Optional
  • Torque Protection Shear bolt
  • Screw rpm 39 (1-speed); 39/26 (2-speed)

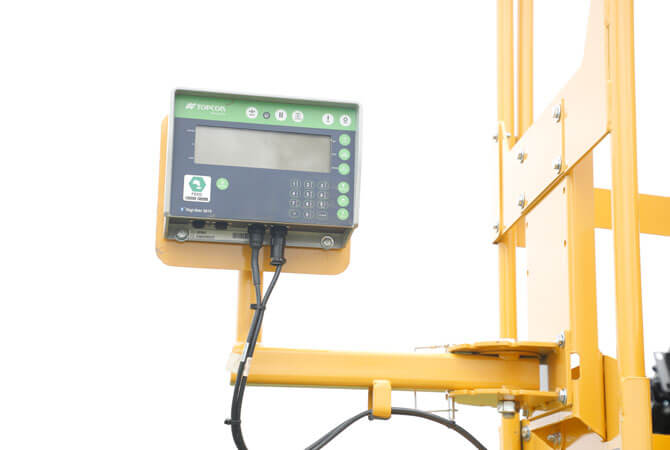

• Scale system

  • Scale display Digi-Star EZ2810-BT
  • Number of weigh bars 4
  • Bluetooth connectivity Standard
  • Remote Display Standard
