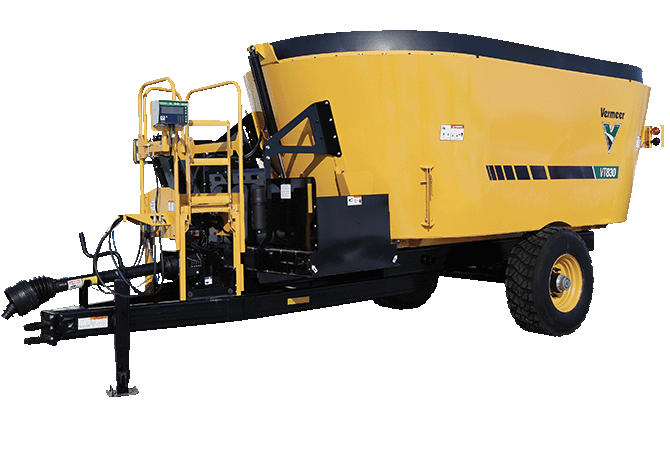

Vermeer VT830 Twin-screw Vertical Mixer

Contact us for price

Stock status: Call Store for Availability

It’s hard to find a mixer with this much capacity at such a low loading height. The Vermeer VT830 twin-screw vertical mixer is the largest model in the lineup available with single tires and a single axle. Perfect for medium-sized dairies or backgrounding operations, it comes with optional stainless steel liners on the floor and sides for minimized rust and maximized durability.

Call Us Now

Specs

  • Dimensions and Weights

    • Loading height - standard 116 in 294.6 cm
    • Machine weight - standard 16240 lbs 7366.3 kg
    • Maximum net load 21000 lbs 9525.4 kg
    • Total length 298 in 756.9 cm
    • Transport width - 50-in folding conveyor extension 117 in 297.2 cm
    • Working width - 50-in folding conveyor extension 135 in 342.9 cm
    • Tires (retread) Standard 425/65R-22.5; Optional 255/70R-22.5 dual

  • Tub and screws

    • Capacity 830 cu ft 23.5 cu m
    • Number of screws 2
    • Number of knives per screw 6
    • Tub wall thickness 1/4 in (6.4 mm)
    • Tub wall material AR200
    • Floor thickness 3/4 in (19.1 mm)
    • Screw flighting thickness 5/8 in (15.9 mm)
    • Screw flighting material AR200

  • Discharge System

    • Discharge style Front conveyor
    • Discharge Direction Left or right
    • Folding conveyor extension length 25 in/40 in/50 in (64 cm/100 cm/130 cm)
    • Bi-directional conveyor length 101 in/110 in/119 in (257 cm/280 cm/302 cm) OR 101 in (257 cm) hydraulic shift
    • Rear discharge door Optional

  • Tractor Requirements

    • Minimum PTO horsepower 150 hp (2-speed) (110 kW)
    • Recommended PTO horsepower 180 hp 134.2 kw

  • Drive System

    • Driveline 1,000 rpm, CV
    • Two-speed gearbox Optional
    • Torque Protection Shear bolt
    • Screw rpm 39 (1-speed); 39/26 (2-speed)

  • Scale system

    • Scale display Digi-Star EZ2810-BT
    • Number of weigh bars 4
    • Bluetooth connectivity Standard
