Vermeer VT970 Twin-screw Vertical Mixer
Vermeer VT970 Twin-screw Vertical Mixer
Vermeer VT970 Twin-screw Vertical Mixer
Vermeer VT970 Twin-screw Vertical Mixer
Vermeer VT970 Twin-screw Vertical Mixer
Vermeer VT970 Twin-screw Vertical Mixer

Vermeer VT970 Twin-screw Vertical Mixer

Contact us for price

Stock status: Call Store for Availability

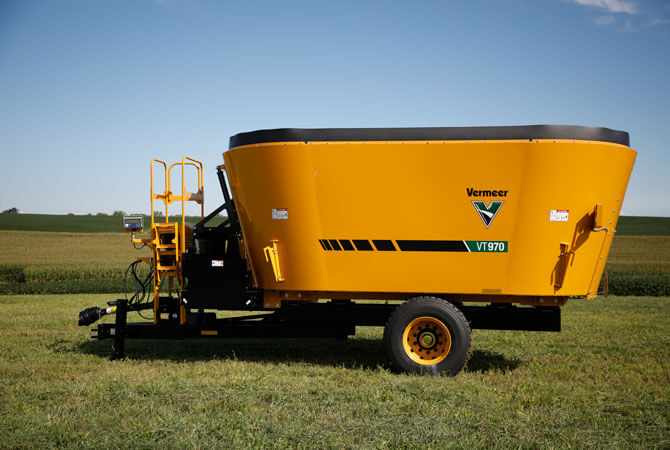

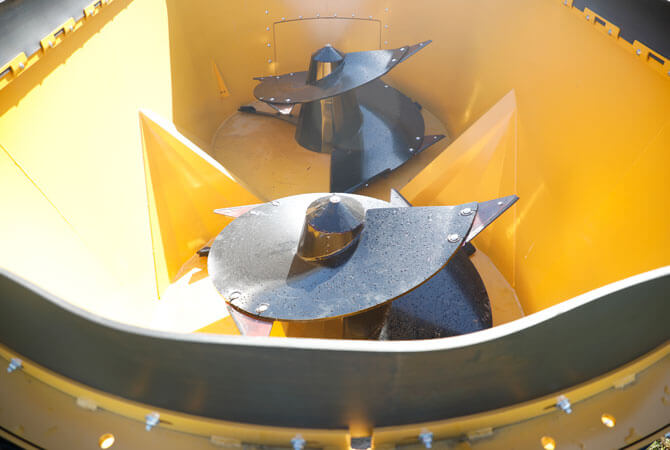

At nearly 1,000 ft3 (28.3 m3) in capacity plus an overlapping screw design that pulls feed from opposite chambers for a quick mixing process, you can’t go wrong with the Vermeer VT970 twin-screw vertical mixer. Choose a single axle with dual tires for an economical option or a tandem-spring axle with four large super-single tires for optimal performance in adverse ground conditions.

Call Us Now

Specs

  • Dimensions and Weights

    • Loading height - standard 127 in 322.6 cm
    • Machine weight - standard 20165 lbs 9146.7 kg
    • Maximum net load 25000 lbs 11339.8 kg
    • Total length 300 in 762 cm
    • Transport width - 50-in folding conveyor extension 119 in 302.3 cm
    • Transport width - 119-in bi-directional conveyor 119 in 302.3 cm
    • Working width - 50-in folding conveyor extension 136 in 345.4 cm
    • Working width - 119-in bi-directional conveyor 119 in 302.3 cm
    • Tires (retread) Standard 315/80R-22.5 dual; Optional 445/50R-22.5 tandem

  • Tub and screws

    • Capacity 970 cu ft 27.5 cu m
    • Number of screws 2
    • Number of knives per screw 7
    • Tub wall thickness 1/4 in (6.4 mm)
    • Tub wall material AR200
    • Floor thickness 3/4 in (19.1 mm)
    • Screw flighting thickness 5/8 in (15.9 mm)
    • Screw flighting material AR200

  • Discharge System

    • Discharge style Front conveyor
    • Discharge Direction Left or right
    • Folding conveyor extension length 25 in/40 in/50 in (64 cm/100 cm/130 cm)
    • Bi-directional conveyor length 101 in/110 in/119 in (257 cm/280 cm/302 cm) OR 101 in (257 cm) hydraulic shift
    • Rear discharge door Optional

  • Tractor Requirements

    • Minimum PTO horsepower 180 hp (2-speed) (130 kW)
    • Recommended PTO horsepower 200 hp 149.1 kw

  • Drive System

    • Driveline 1,000 rpm, CV
    • Two-speed gearbox Optional
    • Torque Protection Shear bolt
    • Screw rpm 39 (1-speed); 39/26 (2-speed)

  • Scale system

    • Scale display Digi-Star EZ2810-BT
    • Number of weigh bars 4
    • Bluetooth connectivity Standard
    • Remote Display Optional
