Specs

• Bale Size

  • Bale Diameter 36 in - 72 in (91 cm - 180 cm)
  • Bale Width 47 in 119.4 cm
  • Maximum bale weight 2400 lbs 1088.6 kg

• Dimensions and Weights

  • Length 263 in 668 cm
  • Height 124 in 315 cm
  • Width 142 in 360.7 cm
  • Weight 20950 lbs 9502.8 kg

• Engine

  • Engine 200-hp (149-kW) Cummins® Stage V 4.5L engine
  • Ground Drive 2-speed hydrostatic
  • Maximum Road Speed 33 mph (53 km/h)
  • Maximum Baling Speed 12 mph 19.3 km/h
  • Rear Tire 18.4 R38 highway
  • Front Tire 21.5L 16.1 highway
  • Fuel Capacity 88 gal 333.1 L
  • DEF Capacity 8.8 gal 33.3 L
  • Suspension Double A-arm independent hydraulic
  • Dual steering mode Standard
  • Counter steer Standard

• Control system

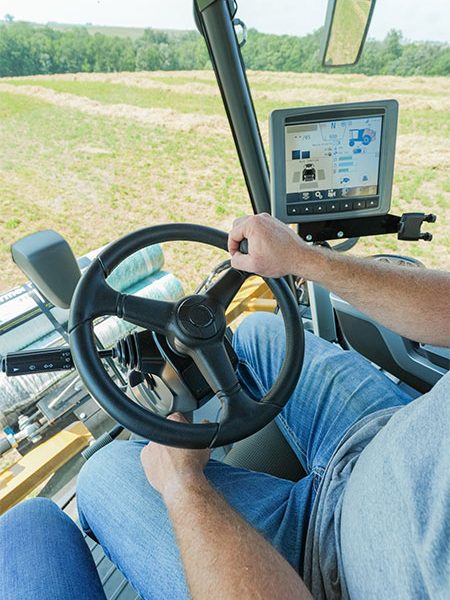

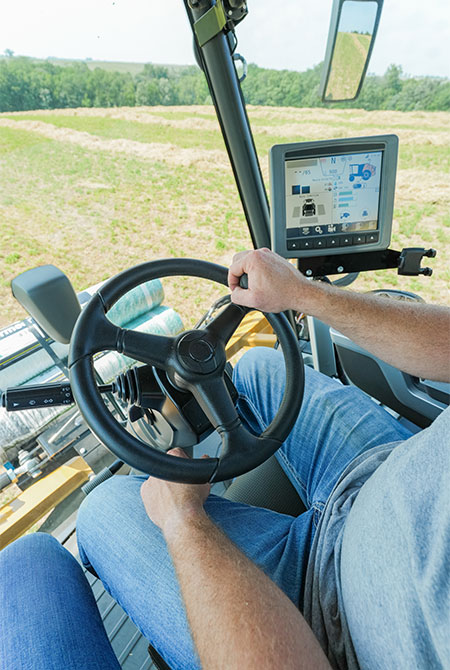

  • Display 10.4-in (26.4-cm) color touchscreen with soft keys
  • Bale shape sensors Standard
  • Real-time moisture data Standard
  • Bales per hour Standard
  • Scales Standard
  • Field Statistics 50 fields with names
  • Field statistics download USB
  • TempSense™ Standard
  • Automation mode Standard

• Cab

  • Seats Leather, heated, air conditioned, air ride, adjustable
  • Entertainment AM/FM Bluetooth® with auxiliary input
  • Steering Tilt and telescoping
  • Camera Two infrared cameras: one pickup view and one tailgate view with auto changing color display
  • Instructional seat Standard
  • In-cab heat Standard
  • In-cab air conditioning Standard

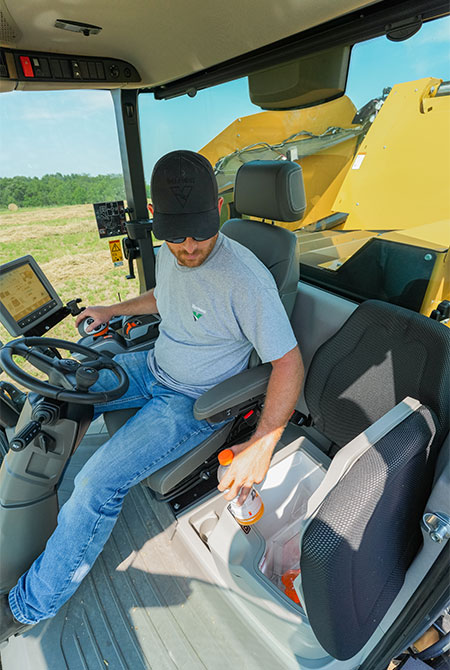

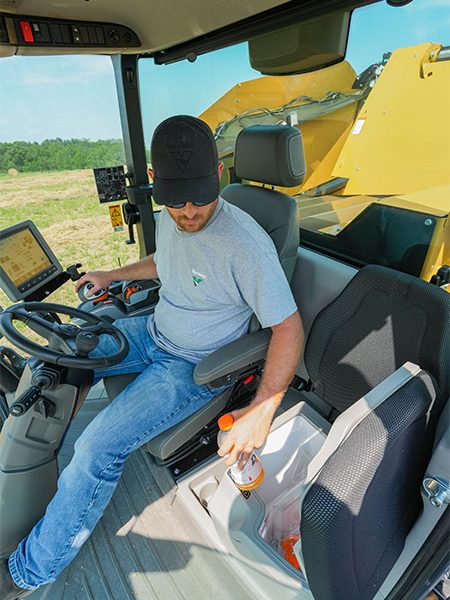

  • Refrigerator compartment Standard

• Bale Forming Chamber

  • Drive roller size 5.5 in 14 cm
  • Idler roller size 3.5 in, 4.8 in (8.9 cm, 12 cm)
  • Start Roller Size 5.3 in 13.5 cm
  • Belt Type Premium mini rough top
  • Number of Belts 6
  • Width of Belt 6.8 in 17.3 cm
  • Length of belt (long) 564 in 1432.6 cm
  • Length of belt (short) 557 in 1414.8 cm
  • Type of Lace Alligator rivet
  • Roller chains Single 60 and 80

• Pickup

  • Pickup type Camless wide
  • Width tooth to tooth 69 in 175.3 cm
  • Width on outside flair 75.5 in 191.8 cm
  • Tooth Bars 5
  • Number of Teeth (70) double rubber-mounted
  • Teeth spacing 2.8 in (7.1 cm)
  • Stripper bands Poly
  • Pickup Lift Hydraulic
  • 3-year pickup warranty Standard

• Density

  • Bale density adjustments Standard through control system monitor
  • Density readings Digital gauge
  • Cylinder size 3 in (8 cm)

• Bale tie system

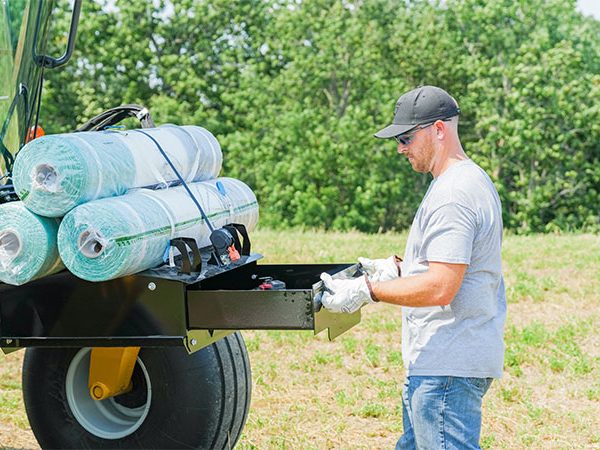

  • Netwrap system Standard
  • Net gauge via control system Standard
  • Netlift system Optional

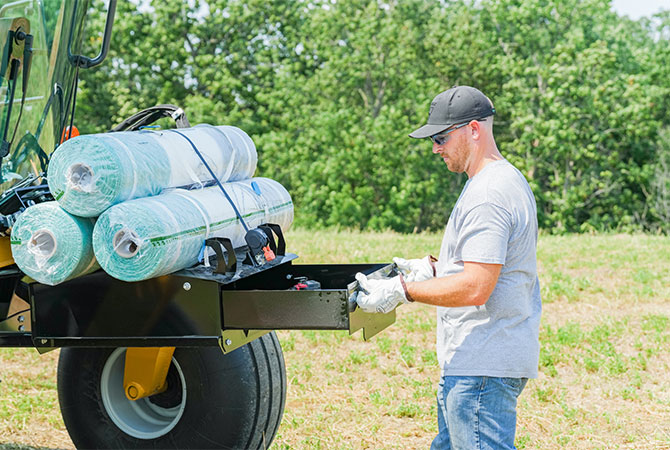

  • Extra roll storage Standard

• Features

  • Bale ramp Standard
  • Auto Lube greasing system Standard
  • LED maintenance lights Standard
  • Fire extinguisher, safety chain Standard
  • Toolbox/front net storage Optional
  • Extended Warranty Optional
