Contact us for price

Stock status: Call Store for Availability

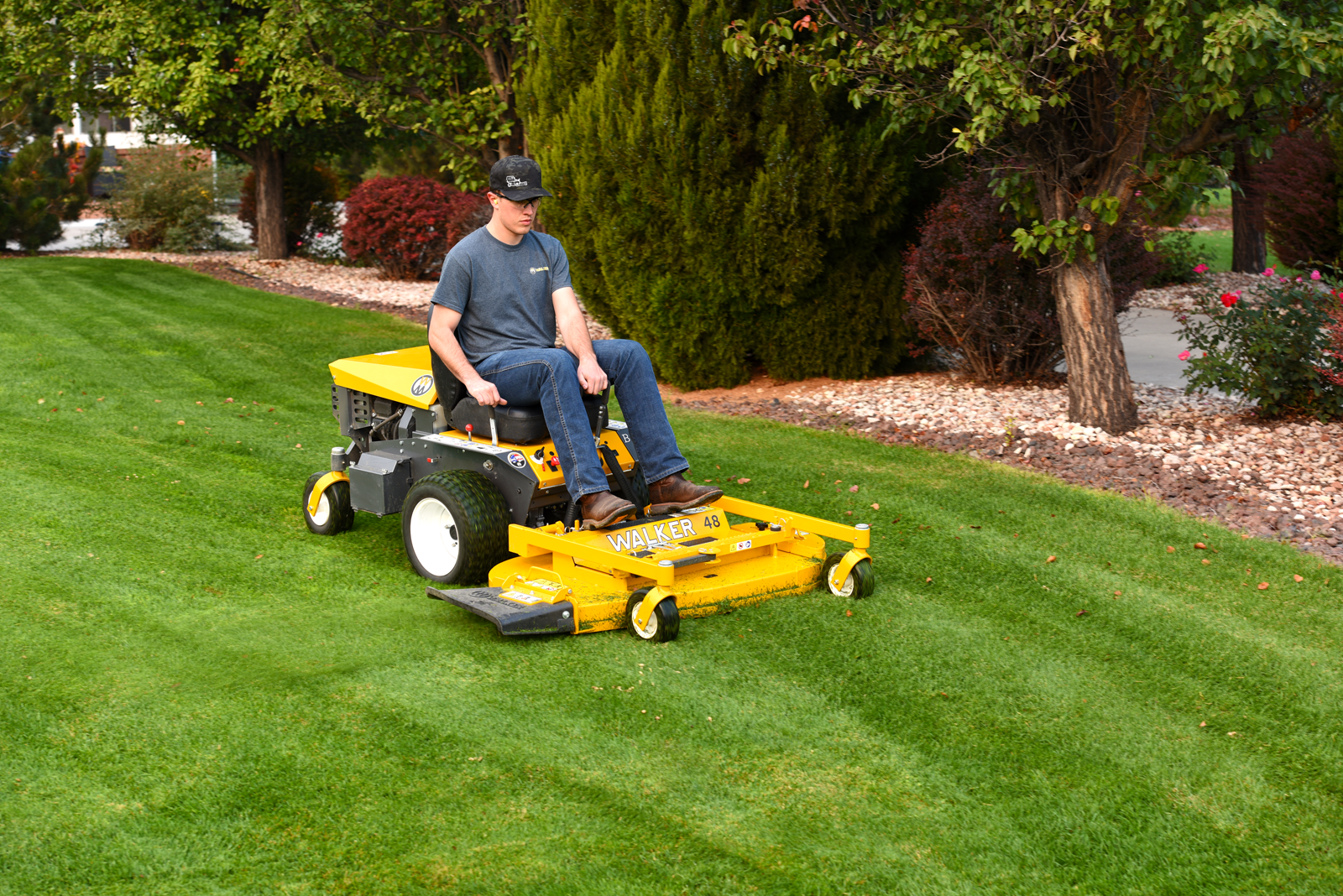

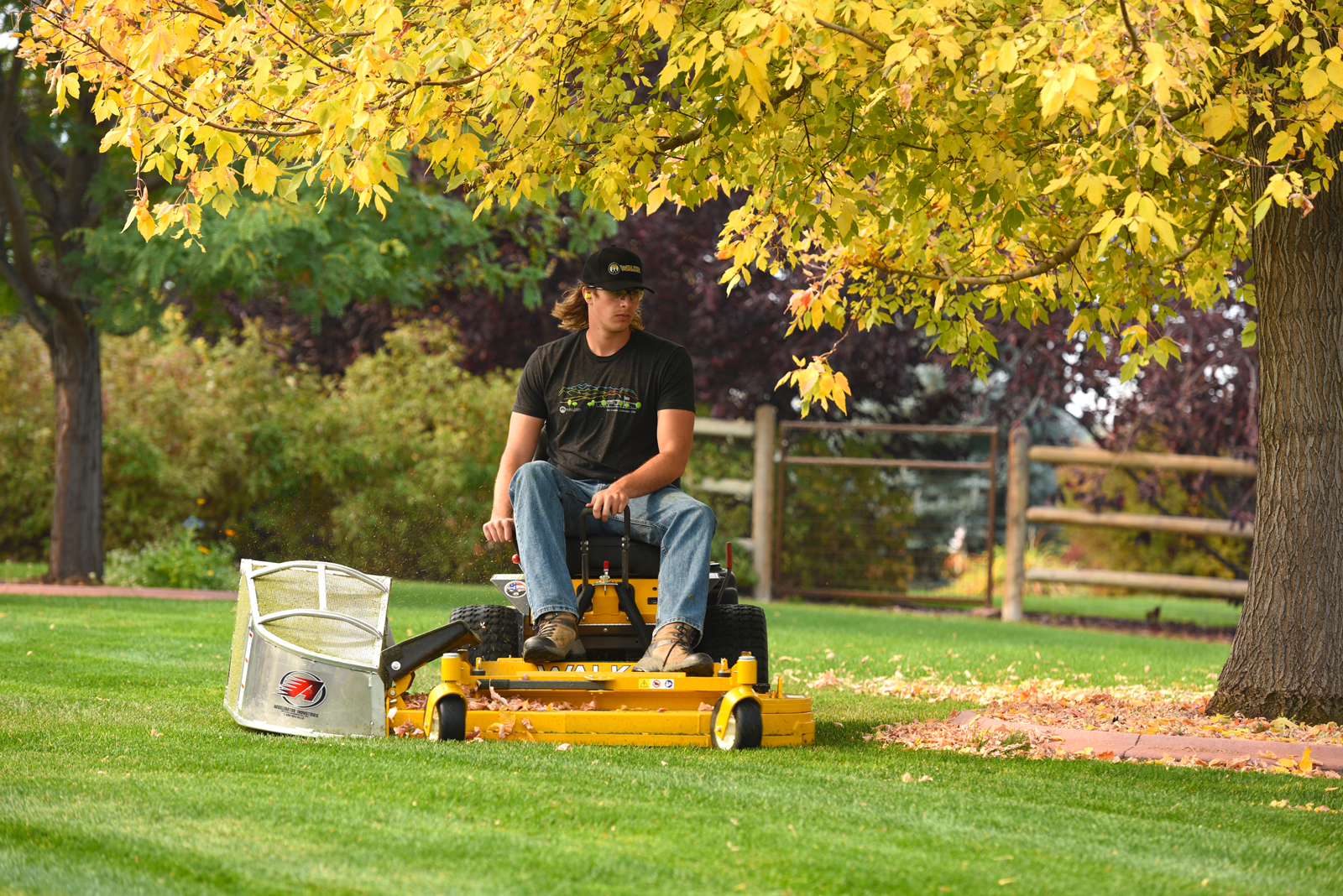

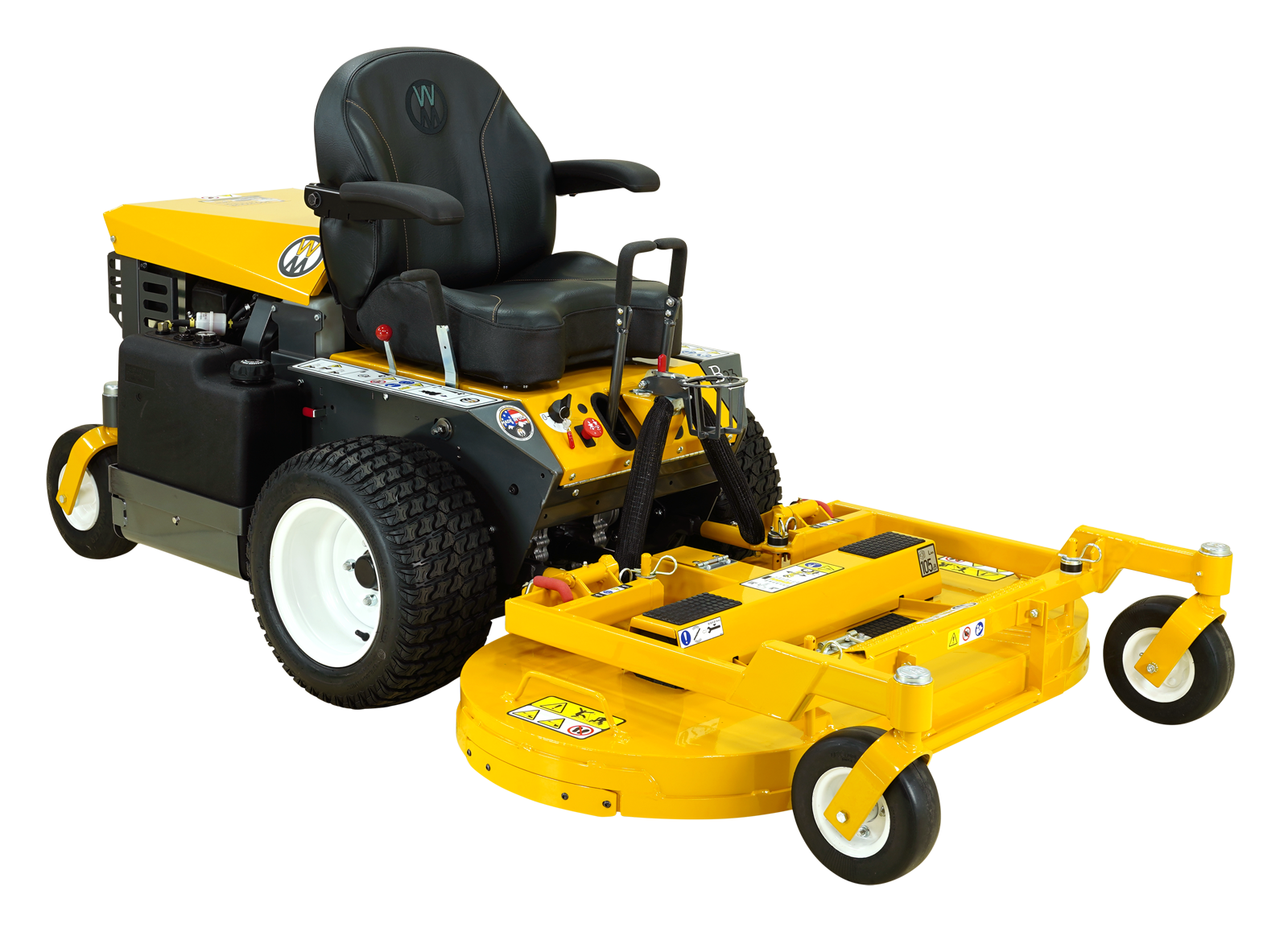

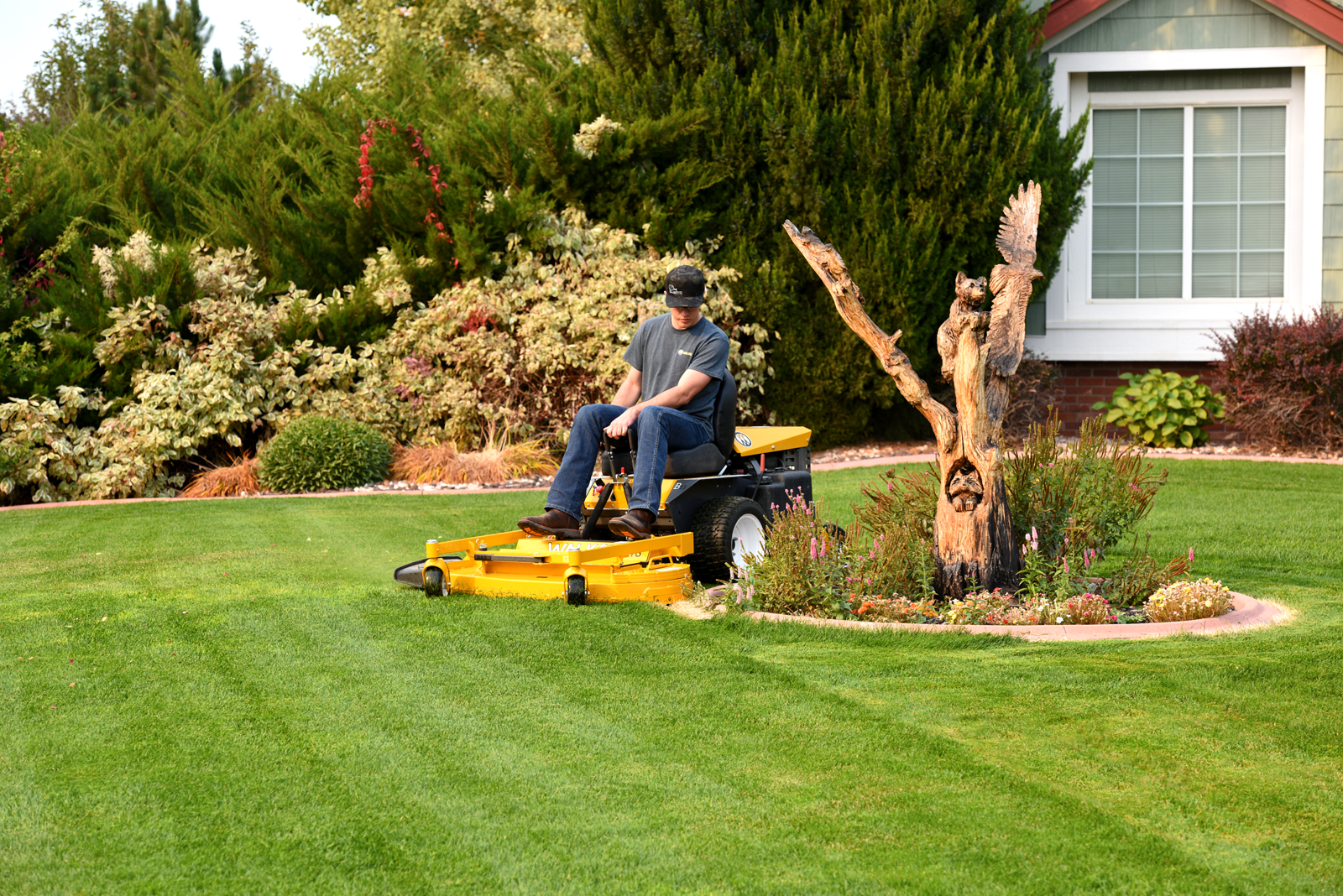

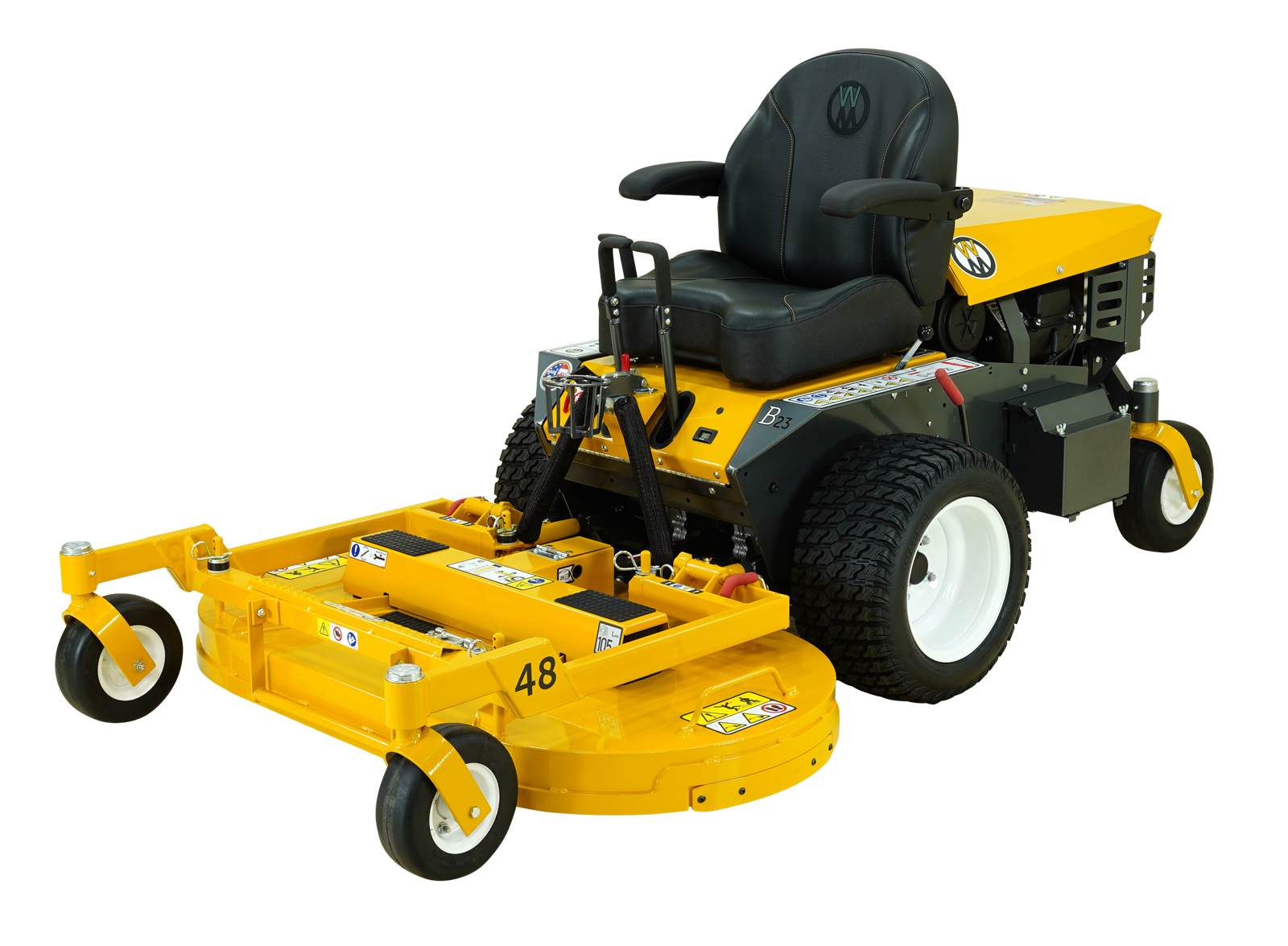

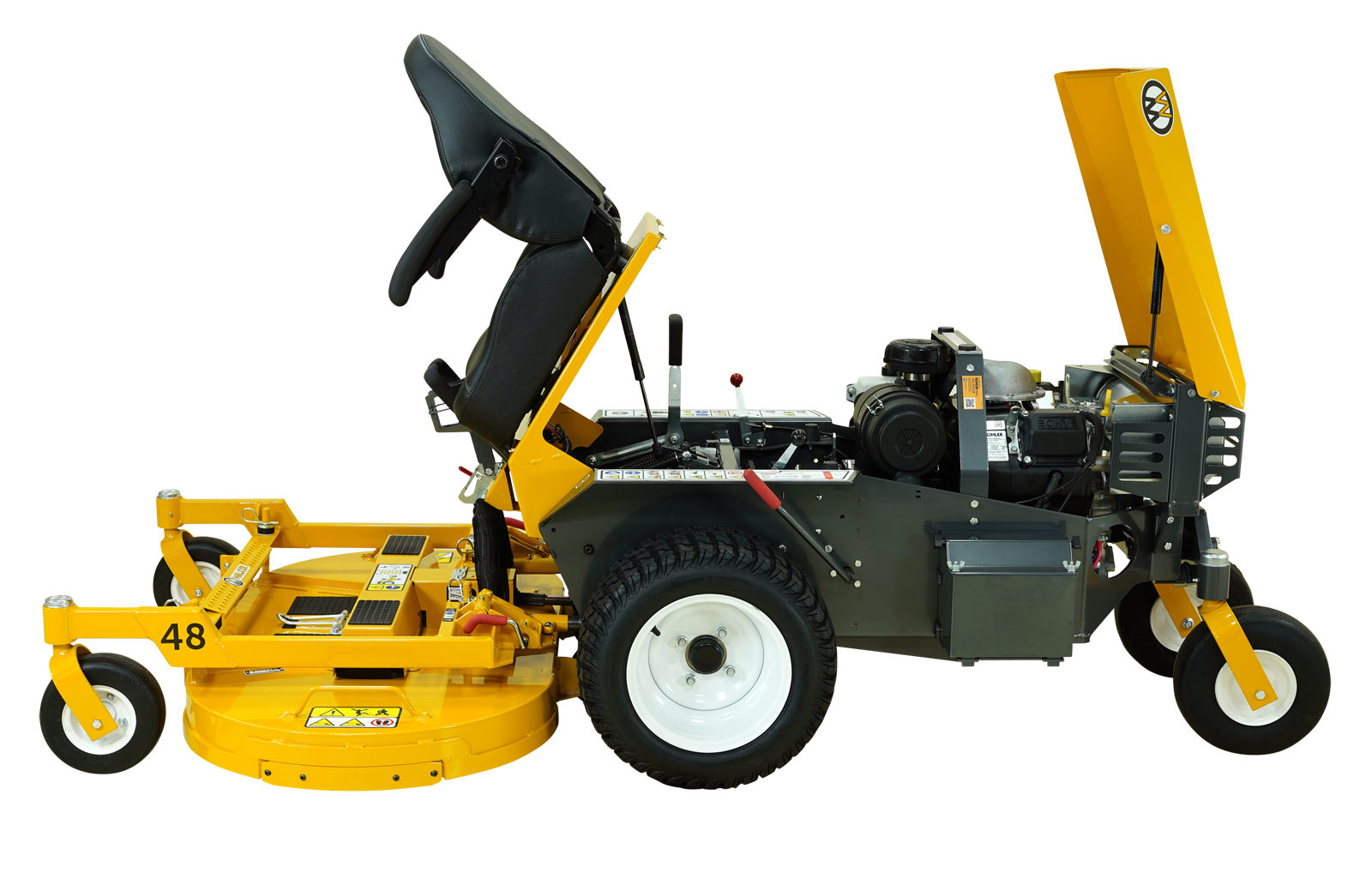

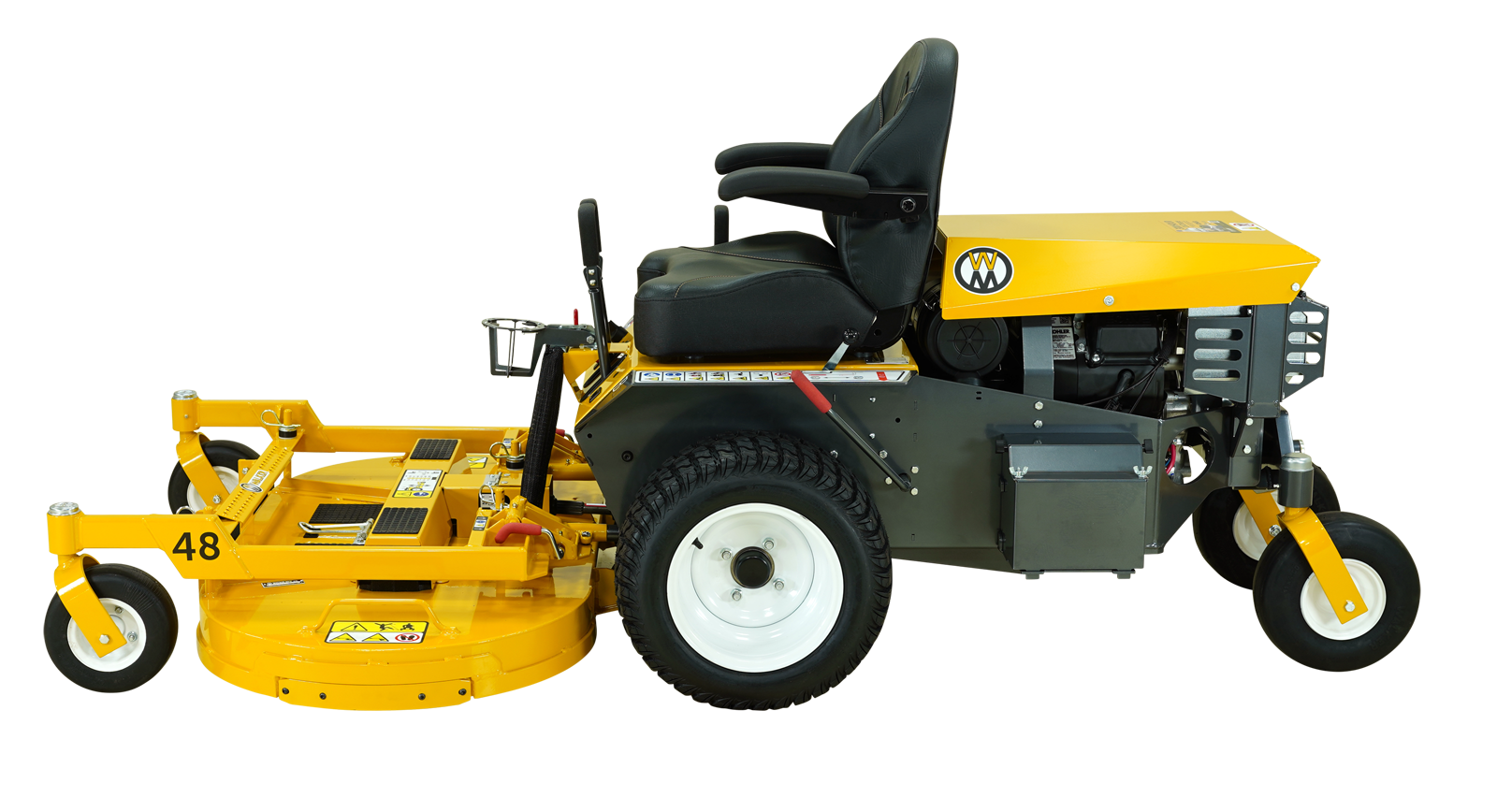

B23 Model Overview

Perfect for users looking for carbureted, commercial mowing power, the Walker B23 packs a lot of muscle into a compact footprint. The B23 features a new chassis and body design reducing weight and accentuating hillside stability and the Walker beautiful cut.

Type: Non-Collection
Power: 22.5 HP
Engine: Kohler
Ideal Application:
Commercial and Rural Properties
Key Attributes: Hillside Stability, Efficiency, High Production
Standard Options: 18 x 8.5-10 Turf Tire, Comfort Seat
Decks: 7 Discharge, 5 Mulching
Popular Add-ons:


* MODELS MAY BE SHOWN WITH OPTIONAL EQUIPMENT. APPLICABLE FREIGHT, SETUP, AND TAXES NOT INCLUDED. ADDITIONAL DELIVERY FEES APPLY FOR US TERRITORIES AND STATES OUTSIDE OF THE CONTINENTAL US. OPTIONS AND ACCESSORIES EXTRA. PRICES SUBJECT TO CHANGE WITHOUT NOTICE. MSRP SHOWN IN US DOLLAR ARE FOR DOMESTIC USE ONLY. SEE LOCAL DEALER FOR COMPLETE PRICING AND AVAILABLE OFFERS.

Call Us Now

Specs

Engine

Manufacturer: Kohler

Model: CH680

Displacement: 674 cc (41.1 cu. in)

Max Power: 22.5 HP @ 3600 RPM

Governed RPM: 3600

Max Torque: 36.8 ft-lbs

Cooling System: Air

Fuel: Automotive Grade Unleaded Gasoline (87 Octane Minimum, 10% Ethanol Maximum)

Fuel Capacity: 4.7 gal (17.8 liter)


Electrical

Battery: 12V, 340CCA

Charging System: Flywheel Alternator

Charging Output: 20 Amp DC (Regulated)


Transmission

Manufacturer/Model: Dual, Independent Hydro-Gear® ZT3100 Integrated Transaxles

Steering: Hand Lever Control, Individual Wheel

Forward Speed Control: Precision Friction Lock Lever, Cruise Control, with Neutral-Park Position

Parking Brake: Internal Mechanical Cog Lock for each Transaxle (Single Lever Control)

Forward MPH (km/h): 0-8 MPH (0-13) Infinitely Variable

Neutral: Transmission Release by Manual Dump Valve


Blade Drive

PTO Shaft: Quick Disconnect Splined Shaft with Two (2) High-Speed U-Joints

Blade Drive Clutch and Brake: Ogura Electric Clutch with Soft Start Engagement and Mechanical Brake [Stops Blades within Five (5) Seconds of Disengagement]


Deck

Recommended Cut Width: Side Discharge: 36 to 74 in. (91 to 188 cm), Mulch: 36 to 52 in. (91 to 132 cm)

Cutting Height: 1.5 to 4 in. (4 to 10 cm) 1.5 to 4.5 in. (4 to 11.5 cm) (DS52 & DS62 Belt Driven Decks Only)

Deck Suspension: Independent Torsion-Flex Frame with Caster Wheels and Counterweight Springs


Tires

Drive: 18 x 8.50-10 (Pneumatic 4-Ply Low-Profile)

Tailwheel: 11 x 4.00-5 (Pneumatic 6-Ply)

Deck Caster: 8 x 3.00-4 (Semi-Pneumatic, All Decks Except DS52, DS62, DS74) 8 x 3.00-4 Pneumatic 4-Ply (Optional), All Decks Except DS52, DS62, DS74


Size & Weight

LENGTH

  • Tractor Only: 63 in (160 cm)
  • Tractor with M48 deck: 90.75 in (230 cm)

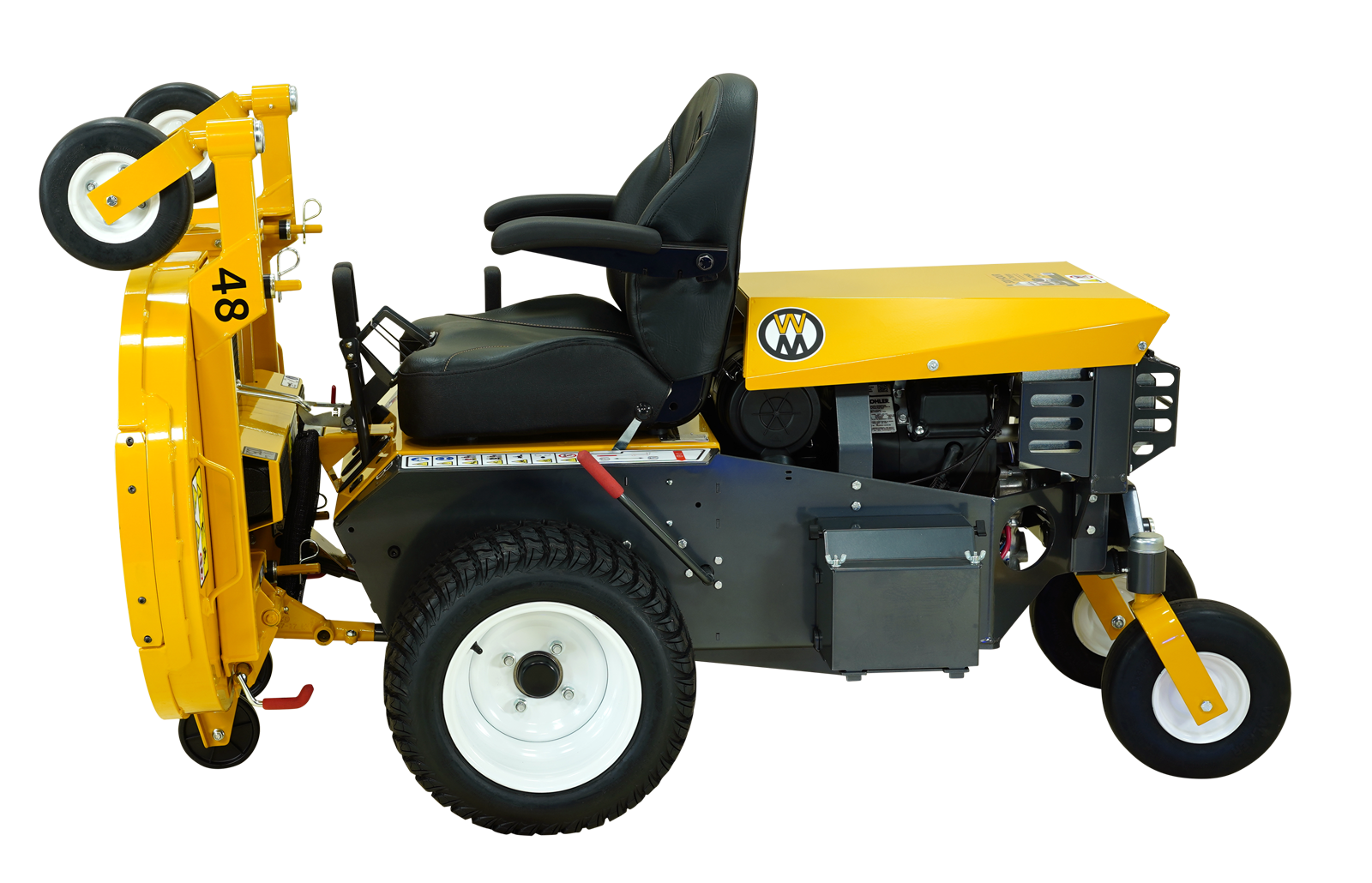

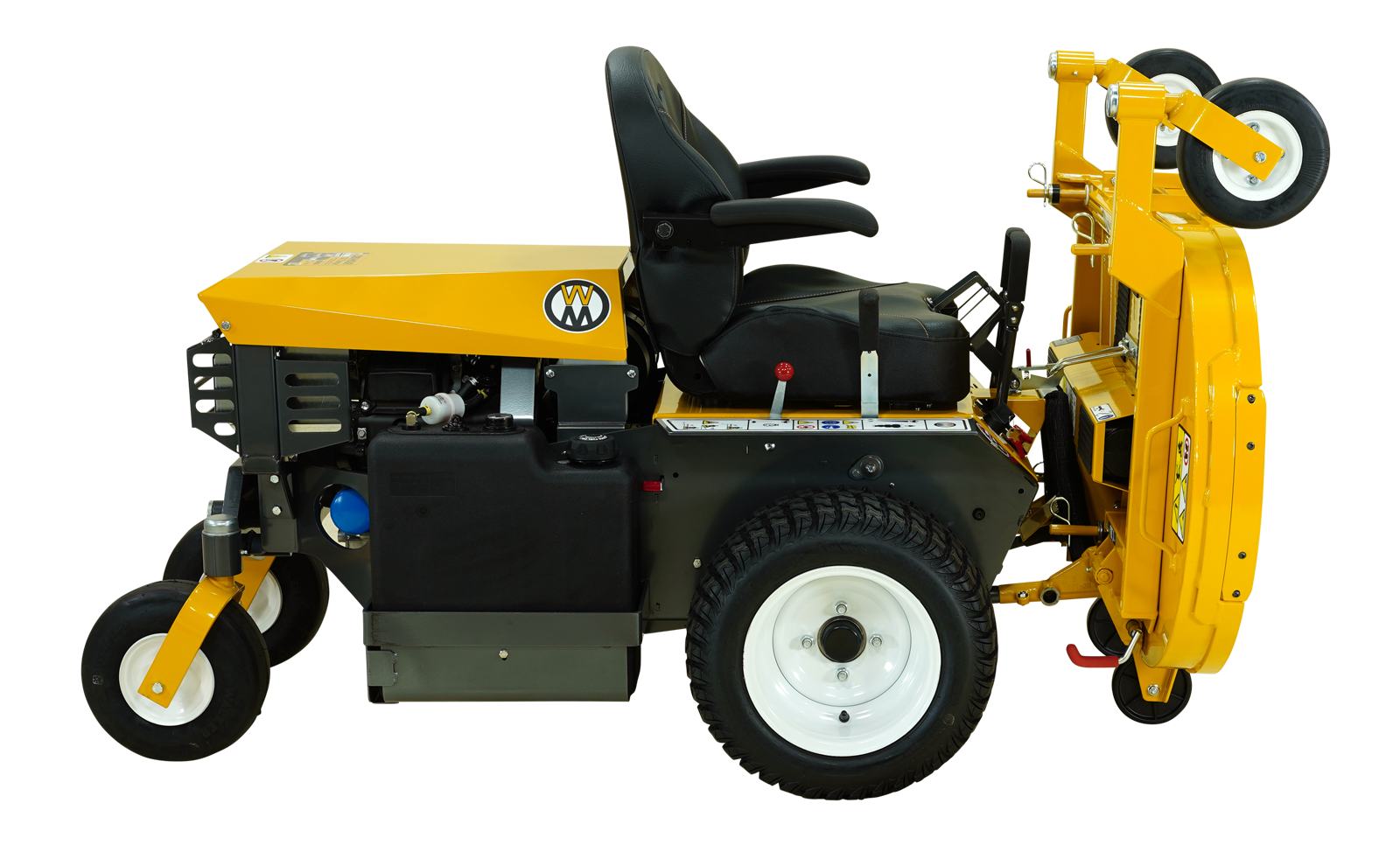

  • Tractor with deck tilted: 72 in (183 cm)
  • Tractor wheel base: 40 in (102 cm)

WIDTH

  • Tractor Only (Outside Tire): 38.5 in (98 cm)
  • Tractor with M48 deck: 49 in (125 cm)

HEIGHT

  • Tractor: 39.5 in (100 cm)

WEIGHT

  • Tractor Only: 600 lbs (272 kg)
  • Tractor with M48 deck: 806 lbs (368 kg)
