Walker Model B27i

Contact us for price

Stock status: Call Store for Availability

B27i Model Overview

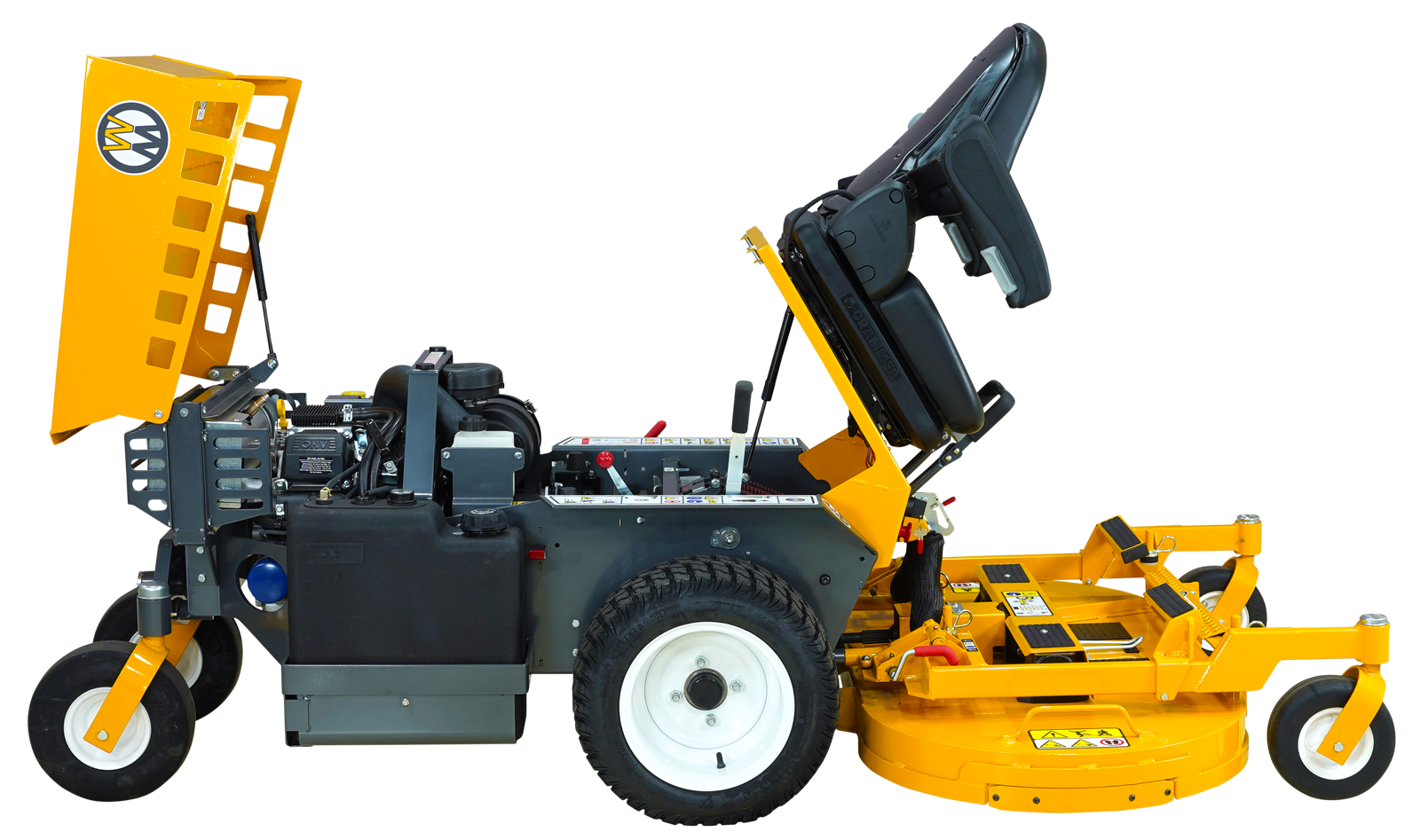

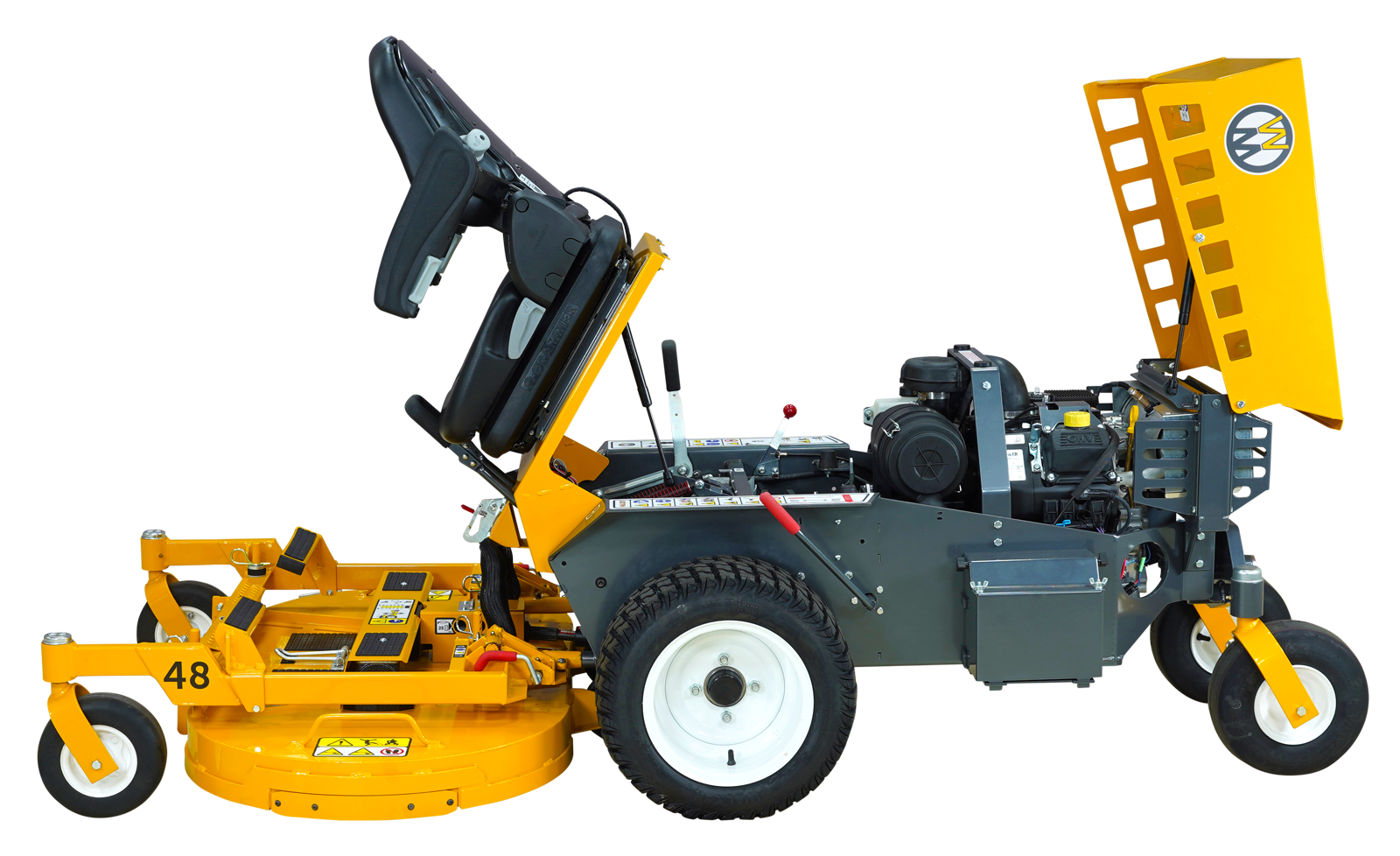

This higher horsepower, new generation version of the Model B adds a Kohler 26.5 HP, EFI engine and includes a redesigned unitized chassis and front body. The new clamshell body makes drivetrain component access easier, and the Ogura electric clutch with Soft Start adds convenience and durability for the operator.

An oversized Donaldson 5 inch air filter is fitted with a turbine style pre-cleaner and restriction gauge to reduce maintenance intervals while providing a robust filtration system. A new rear axle design improves rough condition handling, coupled with Walker’s Comfort Seat and optional 20” drive tires, make the B27i a comfortable machine that is powerful, efficient, and ready for larger decks and difficult conditions.

With numerous deck sizes and styles, optional LED Lights, Suspension Seat, Big Tire Kit, and Utility Dump Bed, the Model B is customizable to meet the needs of the most demanding customers. Contact your local dealer to request a demo today.

Type: Non-Collection
Power: 26.5 HP
Engine: Kohler EFI
Ideal Application:
Commercial and Rural Properties
Key Attributes: Hillside Stability, Efficient, High Production
Standard Options: 18 x 8.5-10 Turf Tire, Comfort Seat
Decks: 7 Discharge, 5 Mulching
Popular Add-ons:

Call Us Now

Description

Specs

Engine

Manufacturer: Kohler

Model: ECH749, EFI

Displacement: 747 cc (45.6 cu. in.)

Max Power: 26.5 HP @ 3600 RPM

Governed RPM: 3600

Max Torque: 40 ft-lbs

Cooling System: Air

Fuel: Automotive Grade Unleaded Gasoline (87 Octane Minimum, 10% Ethanol Maximum)

Fuel Capacity: 4.7 gal (17.8 liter)

Electrical

Battery: 12V, 340CCA

Charging System: Flywheel Alternator

Charging Output: 20 Amp DC (Regulated)

Transmission

Manufacturer/Model: Dual, Independent Hydro-Gear® ZT3100 Integrated Transaxles

Steering: Hand Lever Control, Individual Wheel

Forward Speed Control: Precision Friction Lock Lever, Cruise Control, with Neutral-Park Position

Parking Brake: Internal Mechanical Cog Lock for each Transaxle (Single Lever Control)

Forward MPH (km/h): 0-8 MPH (0-13) Infinitely Variable

Neutral: Transmission Release by Manual Dump Valve

Blade Drive

PTO Shaft: Quick Disconnect Splined Shaft with Two (2) High-Speed U-Joints

Blade Drive Clutch and Brake: Ogura Electric Clutch with Soft Start Engagement and Mechanical Brake [Stops Blades within Five (5) Seconds of Disengagement]

Deck

Recommended Cut Width: Side Discharge: 36 to 74 in. (91 to 188 cm), Mulch: 36 to 52 in. (91 to 132 cm)

Cutting Height: 1.5 to 4 in. (4 to 10 cm) 1.5 to 4.5 in. (4 to 11.5 cm) (DS52 & DS62 Belt Driven Decks Only)

Deck Suspension: Independent Torsion-Flex Frame with Caster Wheels and Counterweight Springs

Tires

Drive: 18 x 8.50-10 (Pneumatic 4-Ply Low-Profile)

Tailwheel: 11 x 4.00-5 (Pneumatic 6-Ply)

Deck Caster: 8 x 3.00-4 (Semi-Pneumatic, All Decks Except DS52, DS62, DS74) 8 x 3.00-4 Pneumatic 4-Ply (Optional), All Decks Except DS52, DS62, DS74

Size & Weight

LENGTH

Tractor Only: 63 in (160 cm)

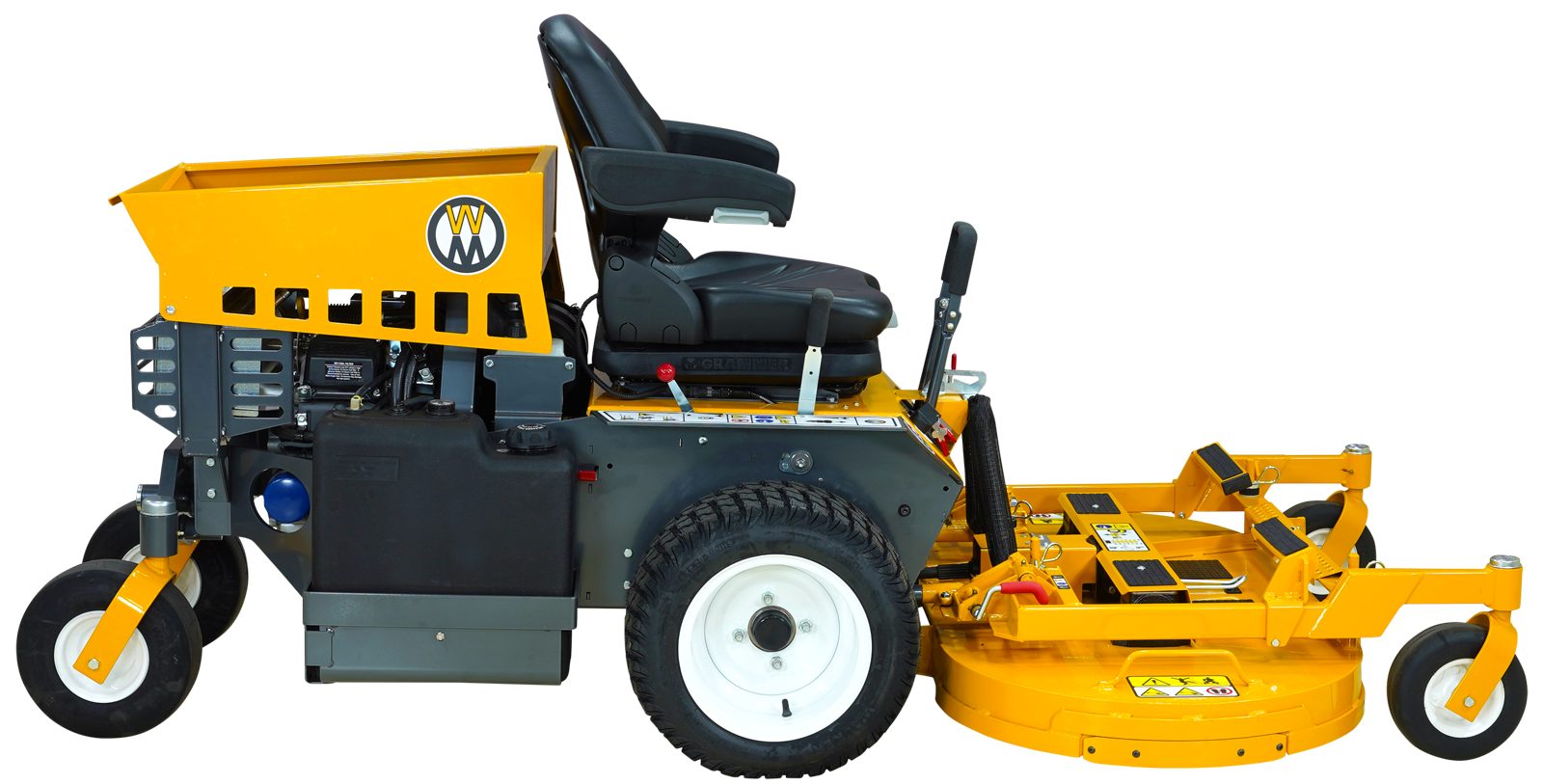

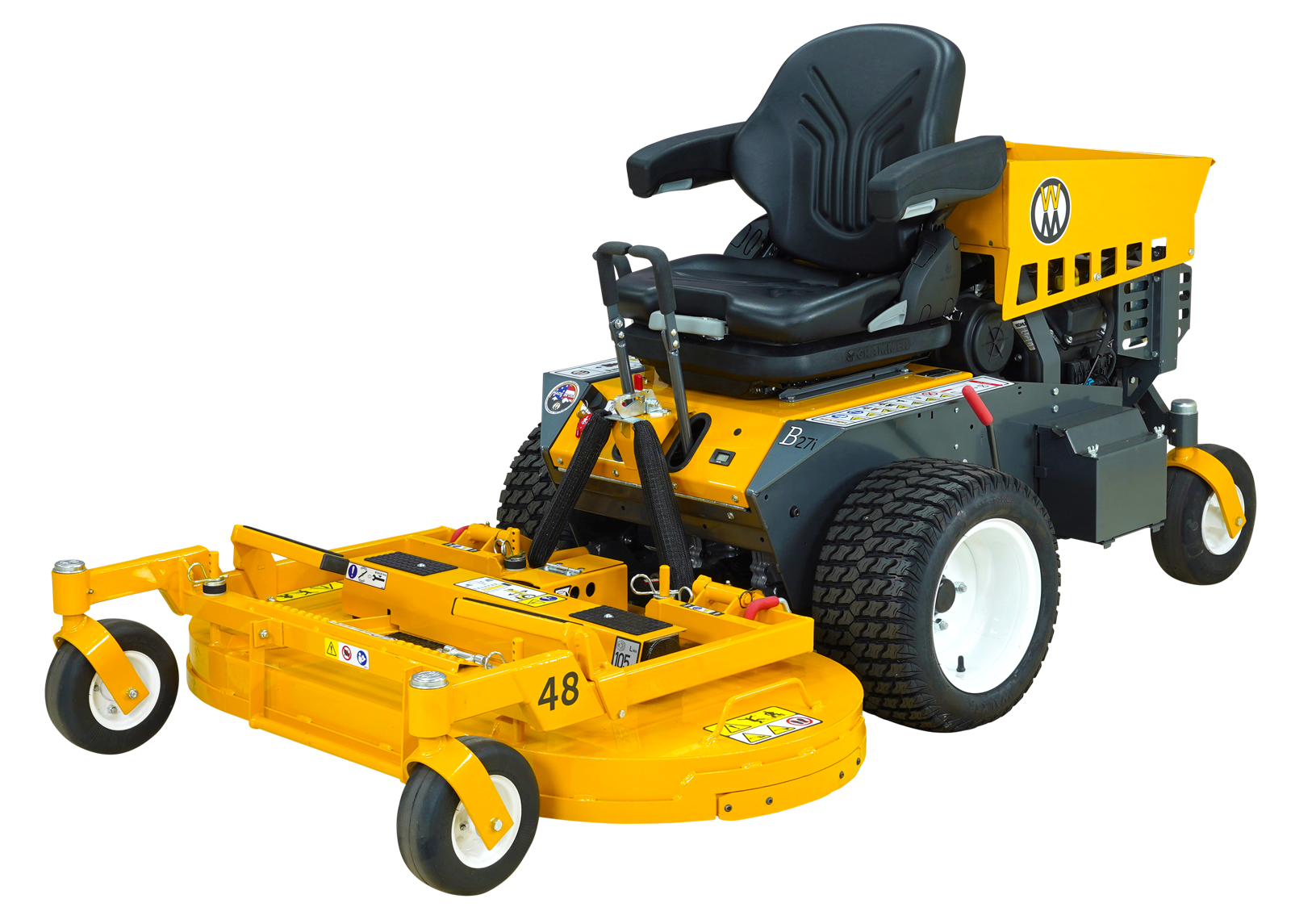

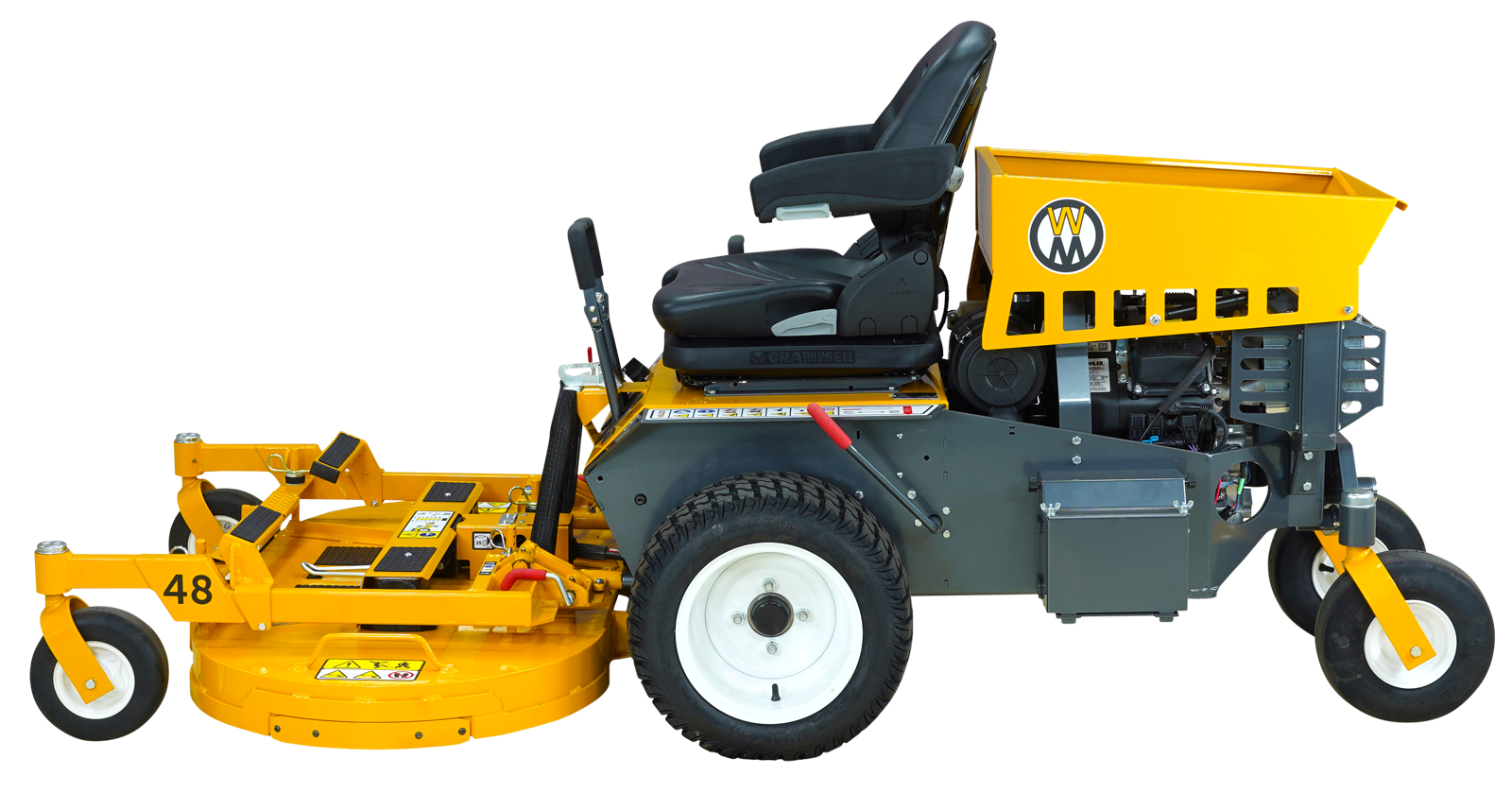

Tractor with M48 deck: 90.75 in (230 cm)

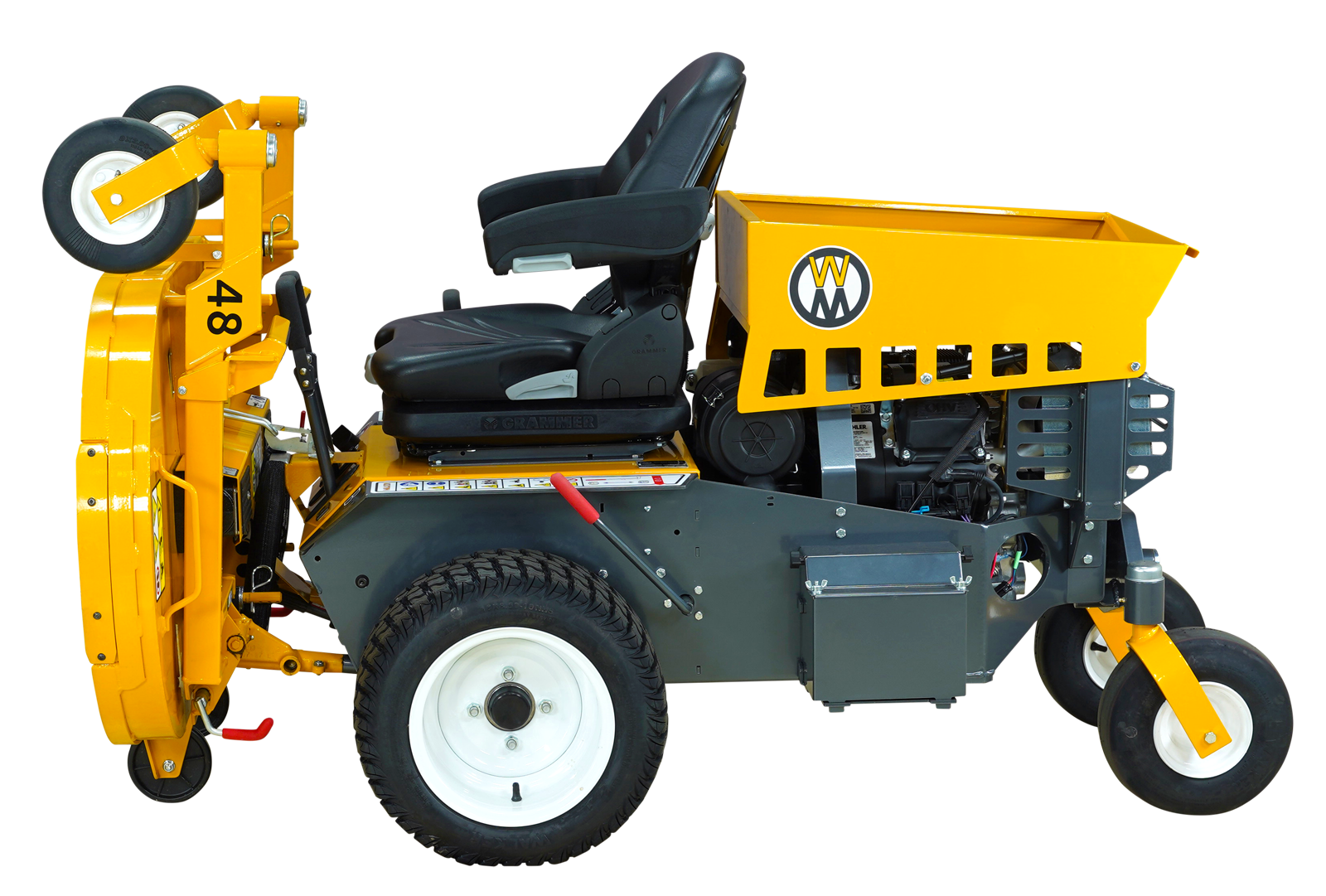

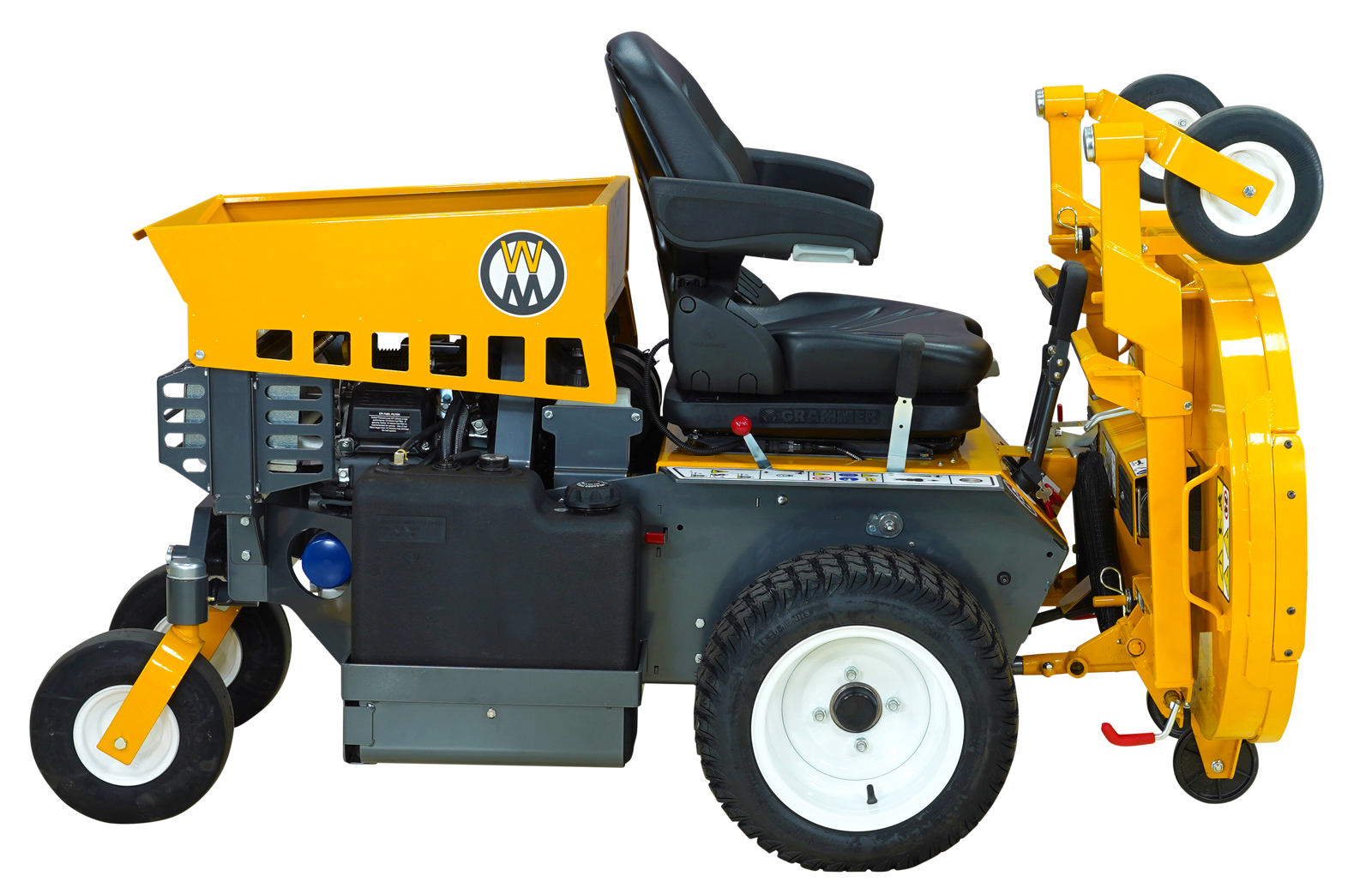

Tractor with deck tilted: 72 in (183 cm)
Tractor wheel base: 40 in (102 cm)

WIDTH

Tractor Only (Outside Tire): 38.5 in (98 cm)
Tractor with M48 deck: 49 in (125 cm)

HEIGHT

Tractor: 39.5 in (100 cm)

WEIGHT

Tractor Only: 606 lbs (275 kg)
Tractor with M48 deck: 812 lbs (385 kg)
