Manufacturer: Kohler

Model: Command Pro^® CH620

Displacement: 674 cc (41.1 cu. in.)

Max Power: 19 HP @ 3600 RPM

Max Torque: 35 ft-lbs

Cooling System: Air

Fuel: Gasoline (unleaded - 87 octane; 10% ethanol maximum)

Fuel Capacity: 4 gal (15.1 liter)

Battery: 12V, 35AH, 300CCA

Charging System: Flywheel Alternator

Charging Output: 15 Amp DC (Regulated)

Manufacturer/Model: Eaton Model 7 transmission with ductile cast iron final drive, Dual Hydrostatic; each wheel independently driven

Steering: Hand Lever Control, Individual Wheel

Forward Speed Control: Precision Friction Lock Lever, Cruise Control, with Neutral-Park Position

Parking Brake: Mechanical Pin Lock in Transmission Gear

Forward MPH (km/h): 0-6.5 MPH (0-10.5 km/h) Infinitely Variable

Neutral: Transmission Release by Manual Dump Valve

PTO Shaft: Quick Disconnect Splined Shaft with two high speed U-joints

Blade Drive Clutch and Brake: Manual Belt Tightener Clutch and Band Brake

Blower: 10.5 in diameter, Three-Blade Paddle Wheel

Max. Blower RPM: 4000 RPM

Grass Catcher Capacity: 65 Gal / 7.0 Bu / 246 L or 93 Gal / 10.0 Bu / 352 L

Full Signal: Grass-Pak^® full signal alerts operator when catcher box is full

Powerfil^®: Oscillating Delivery Spout Driven by 12 Volt Electric Gearmotor Spreads Material throughout Interior of Catcher @ 35 Cycles/Min

Recommended Cut Width: Collection: 36 to 48 in. (91 to 122 cm), Side Discharge: 36 to 62 in. (91 to 157 cm), Mulch: 36 to 52 in. (91 to 132 cm)

Cutting Height: 1 to 4 in (2.5 to 10 cm) or 1.5 to 4.5 in (4 to 11.5 cm) (DS52 and DS62 Belt Driven SD Decks Only)

Deck Suspension: Independent Torsion-Flex Frame with Caster Wheels and Counterweight Springs

Drive: 18 x 8.50-10 (Pneumatic 4-Ply)

Tailwheel: 13 x 6.50-6

Deck Caster: 8 x 3.00-4 Semi-Pneumatic (Standard) 8 x 3.00-4 Pneumatic 4-Ply (Optional)

LENGTH

• Tractor Only: 64.5 in (164 cm)
• Tractor with C42 deck: 89.25 in (237 cm)

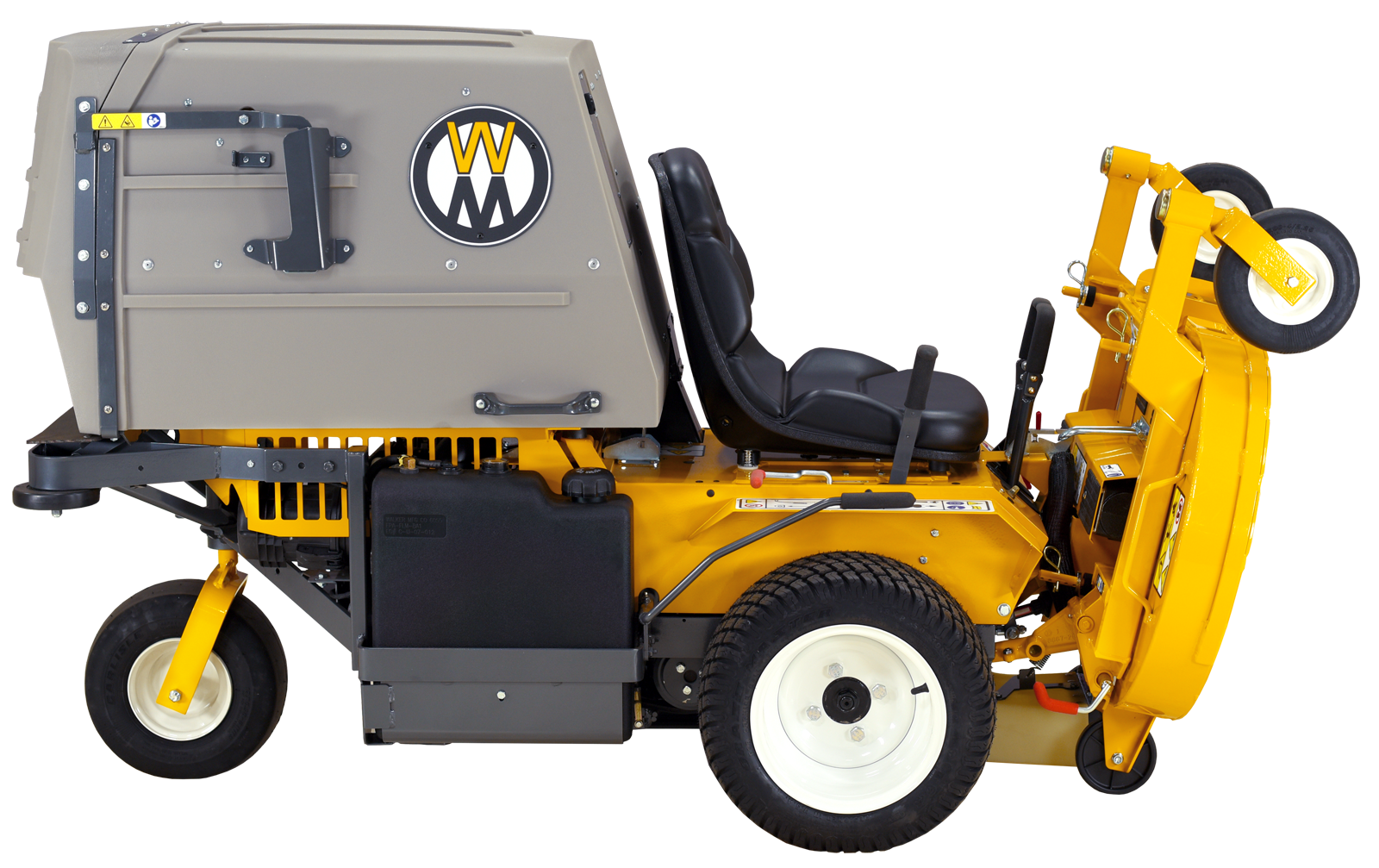

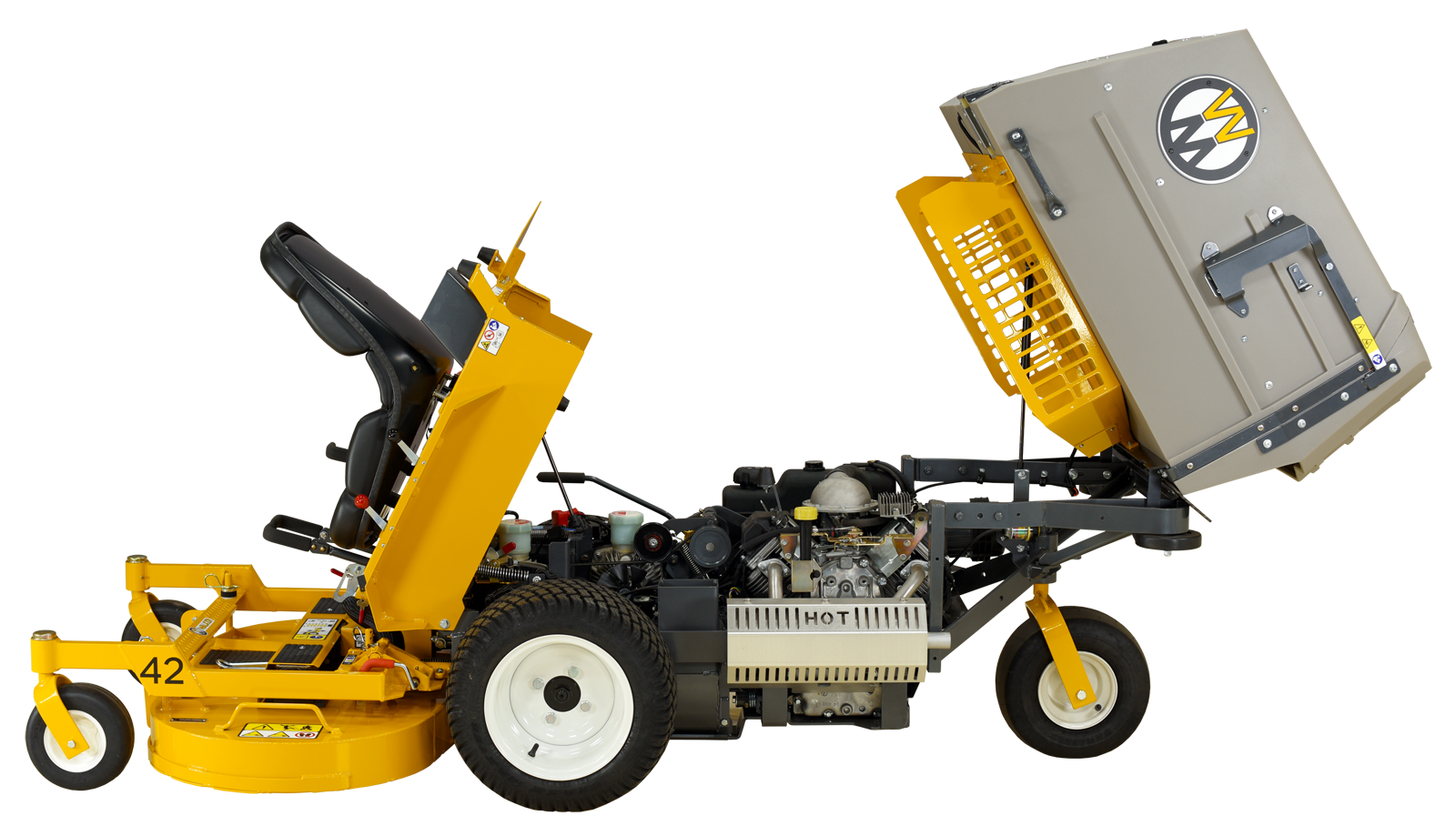

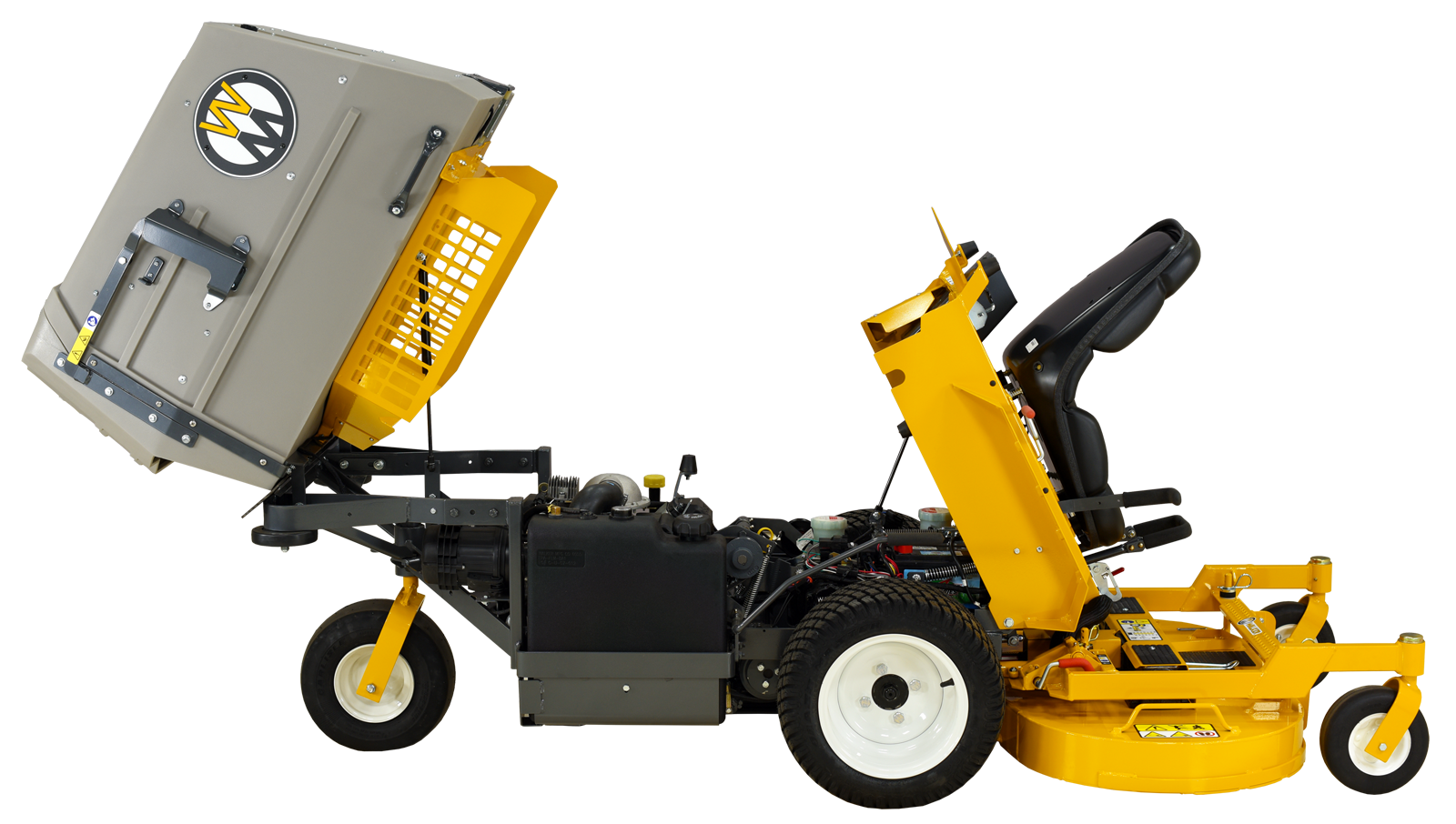

• Tractor with deck tilted: 77 in (196 cm)
• Tractor wheel base: 42.25 in (107 cm)

HEIGHT

• Tractor: 47.5 in (121 cm)

WIDTH

• Tractor Only (Outside Tire): 37.75 in (96 cm)
• Tractor with C42 deck: 43.25 in (110 cm)

WEIGHT

• Tractor Only: 762 lbs (346 kg)
• Tractor with C42 deck: 953 lbs (432 kg)
