Manufacturer: Kohler

Model: Command Pro^® ECH980, 2 Cyl., OHV, Gasoline (Air-Cooled), Electronic Fuel Injection (EFI)

Displacement: 999 cc (61 cu. in.)

Max Power: 38 HP @ 3600 RPM

Max Torque: 58 ft-lbs

Oil Filter: Kohler P/N 52 050 02

Cooling System: Air

Fuel: Automotive Grade Unleaded Gasoline (87 Octane Minimum, 10% Ethanol Maximum)

Fuel Capacity: 9.4 gal (35.6 liter) Two Independent 4.7 Gallon Tanks with Selector Valve

Battery: 12V, 340CCA

Charging System: Flywheel Alternator

Charging Output: 25 Amp DC (Regulated)

Manufacturer/Model: Dual Independent Hydro-Gear ZT3400 Integrated Transaxles

Steering: Hand Lever Control, Individual Wheel

Forward Speed Control: Precision Friction Lock Lever, Cruise Control, with Neutral-Park Position

Parking Brake: Internal Mechanical Cog Lock for each Transaxle (Single Lever Control)

Forward MPH (km/h): 0-10 MPH (0-16 km/h) Infinitely Variable

Neutral: Transaxle Release by Manual Dump Valve

PTO Shaft: Quick Disconnect Splined Shaft with Two (2) High-Speed U-Joints

Blade Drive Clutch and Brake: Manual Belt Tightener Clutch and Band Brake [Stops Blades within Five (5) Seconds of Disengagement]

Recommended Cut Width: Side Discharge: 60 in. (152 cm), Rear Discharge: 52 to 64 in. (132 to 163 cm)

Cutting Height: 1 to 5 in (2.5 to 13 cm) in 1/4 in (1 cm) Increments, 17 Positions

Deck Suspension: Torsion-Flex Frame with Caster Wheels and Counterweight Springs

Drive: 23 x 10.5-12

Tailwheel: 13 x 5.00-6 (Pneumatic 4-Ply)

Deck Caster: 13 x 5.00-6 (Pneumatic 4-Ply)

LENGTH

• Tractor Only: 69 in (175 cm)
• Tractor with R64 deck: 107 in (272 cm)

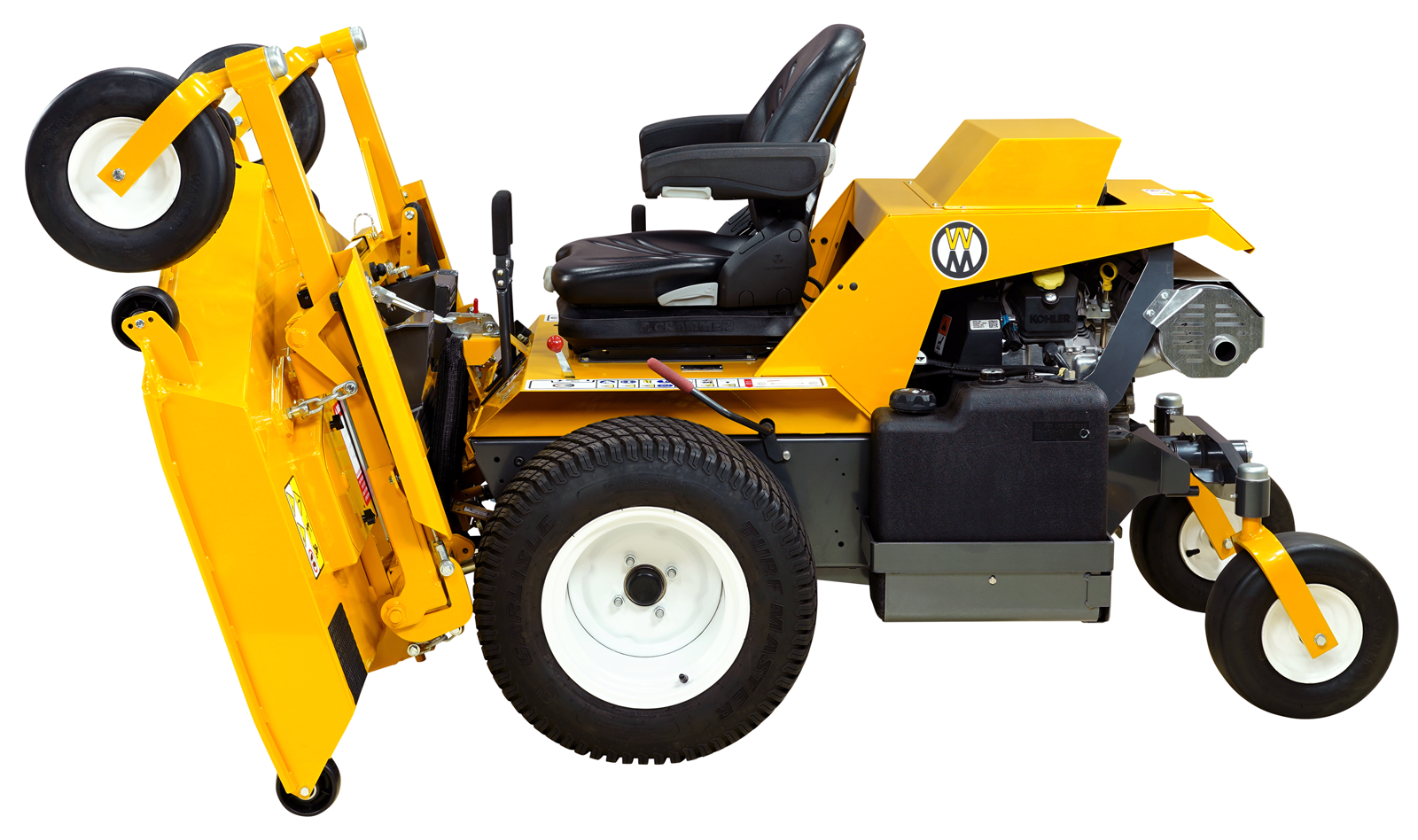

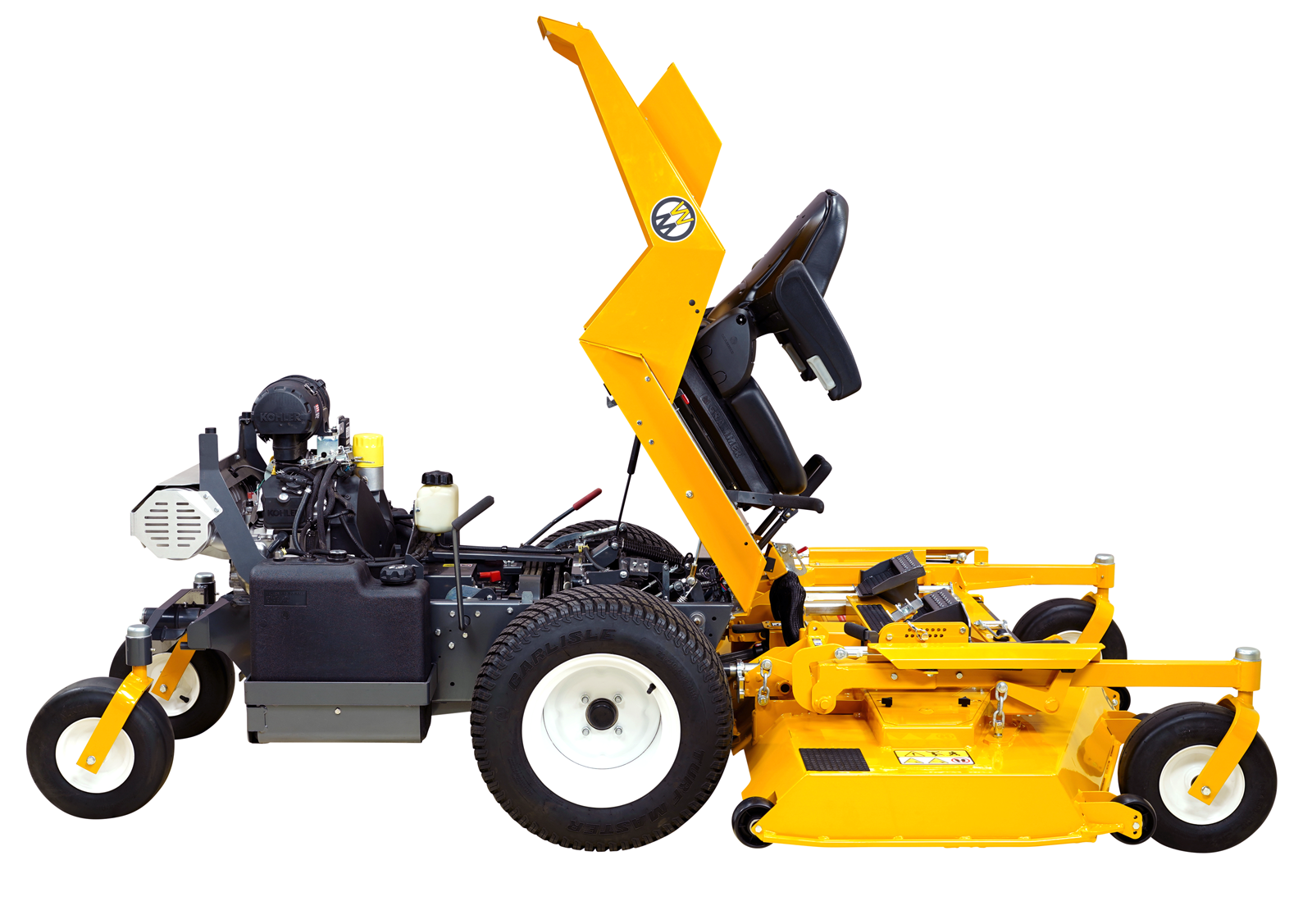

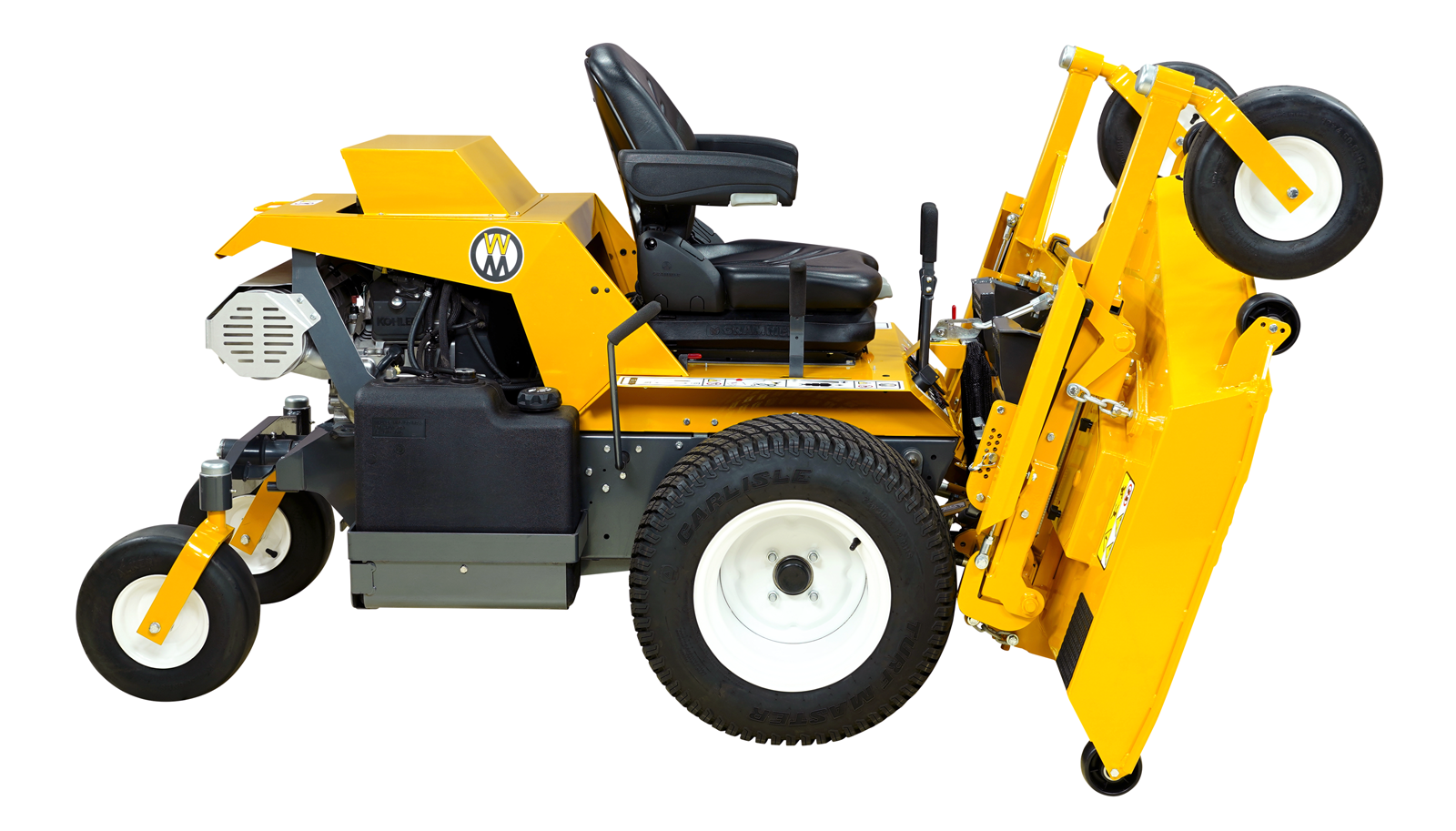

• Tractor with deck tilted: 87.75 in (223 cm)
• Tractor wheel base: 45.375 in (115 cm)

WIDTH

• Tractor Only (Outside Tire): 46.5 in (118 cm)
• Tractor with R64 deck: 66 in (168 cm)
• Tread Width: 36.5 in (93 cm)

HEIGHT

• Tractor: 46.5 in (118 cm)

WEIGHT

• Tractor Only: 808 lbs (366.5 kg)
• Tractor with R64 deck: 1239 lbs (562 kg)
