Contact us for price

Stock status: Call Store for Availability

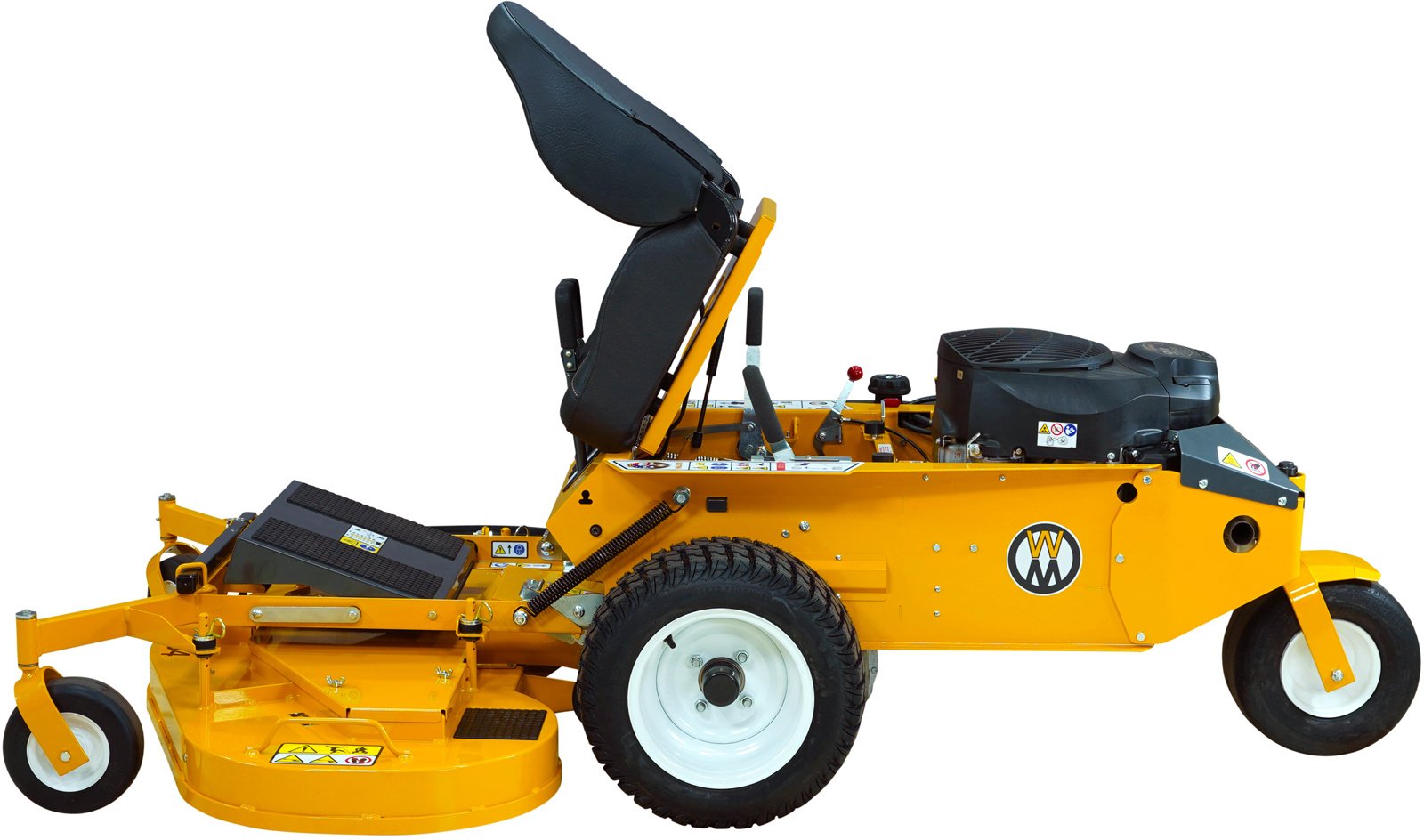

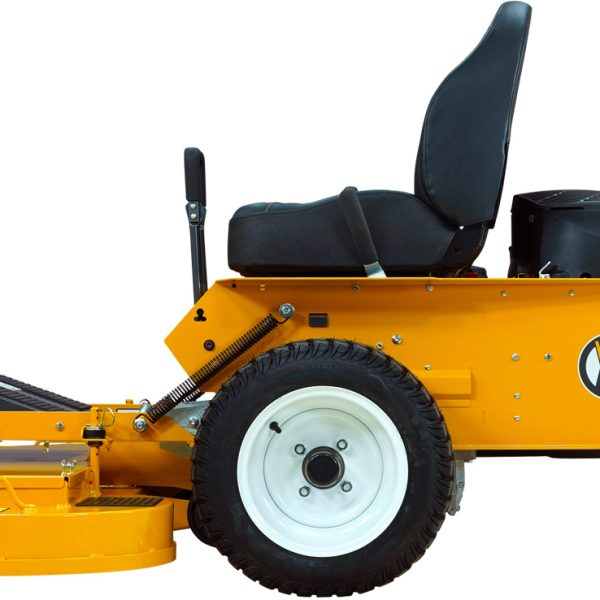

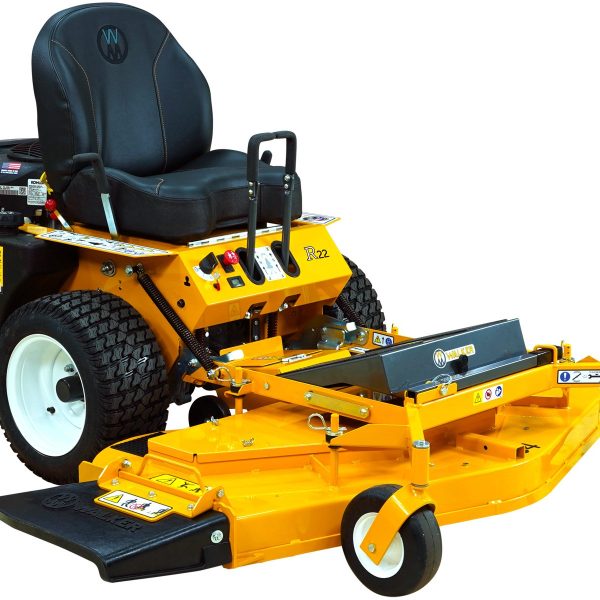

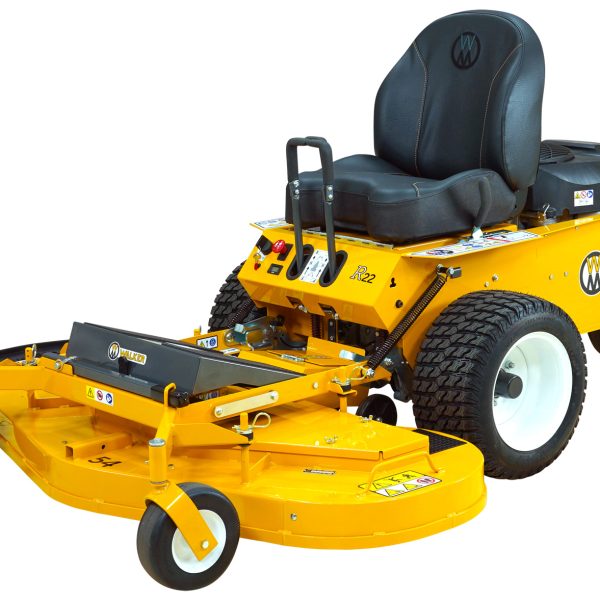

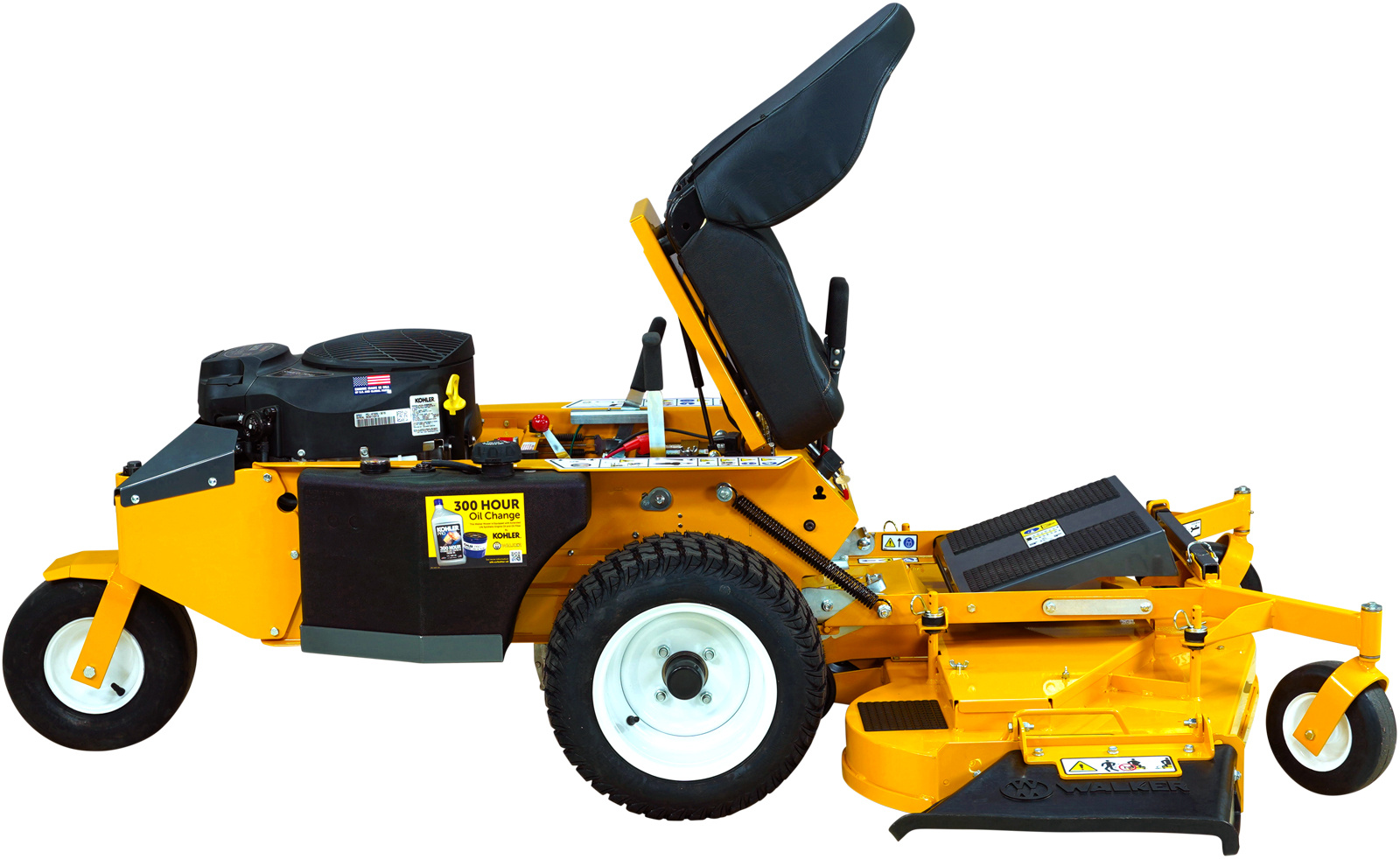

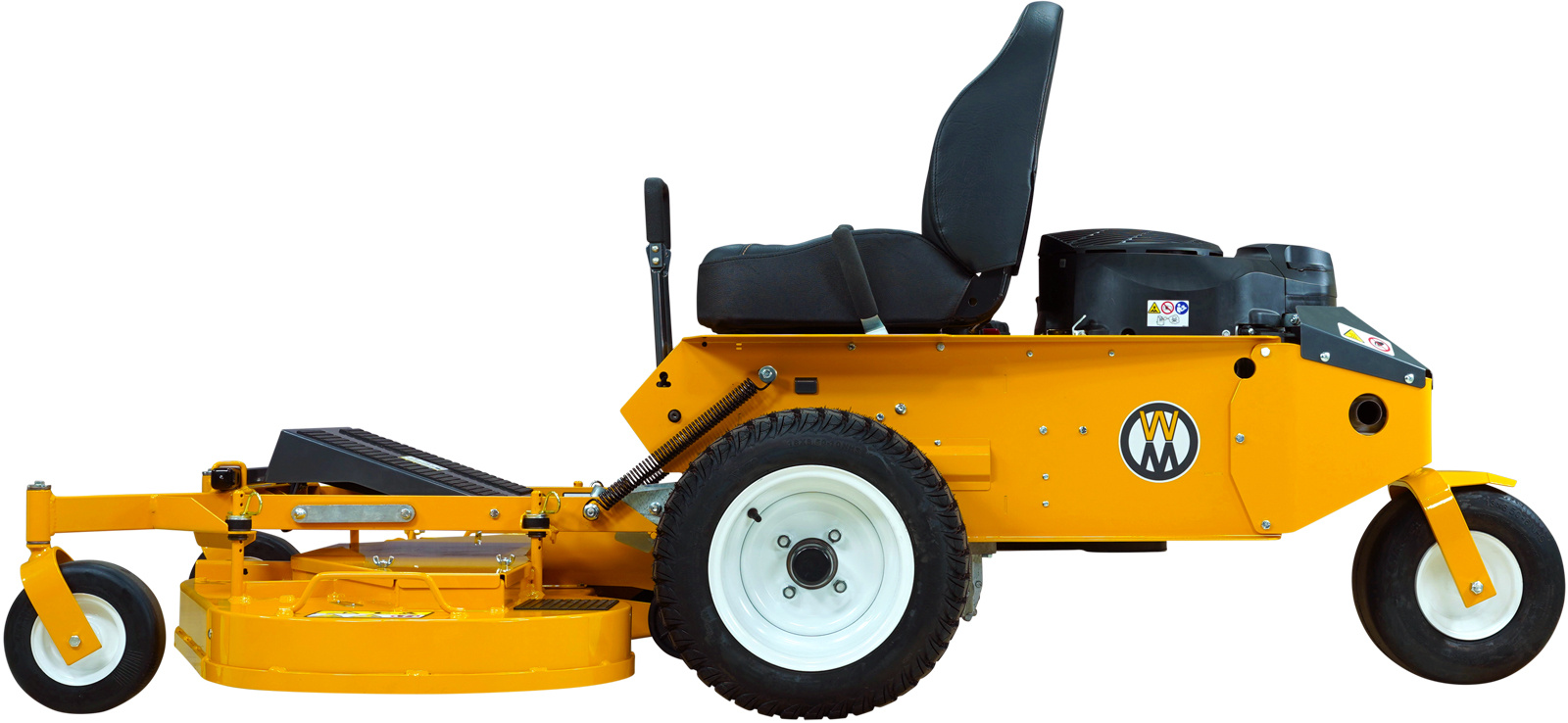

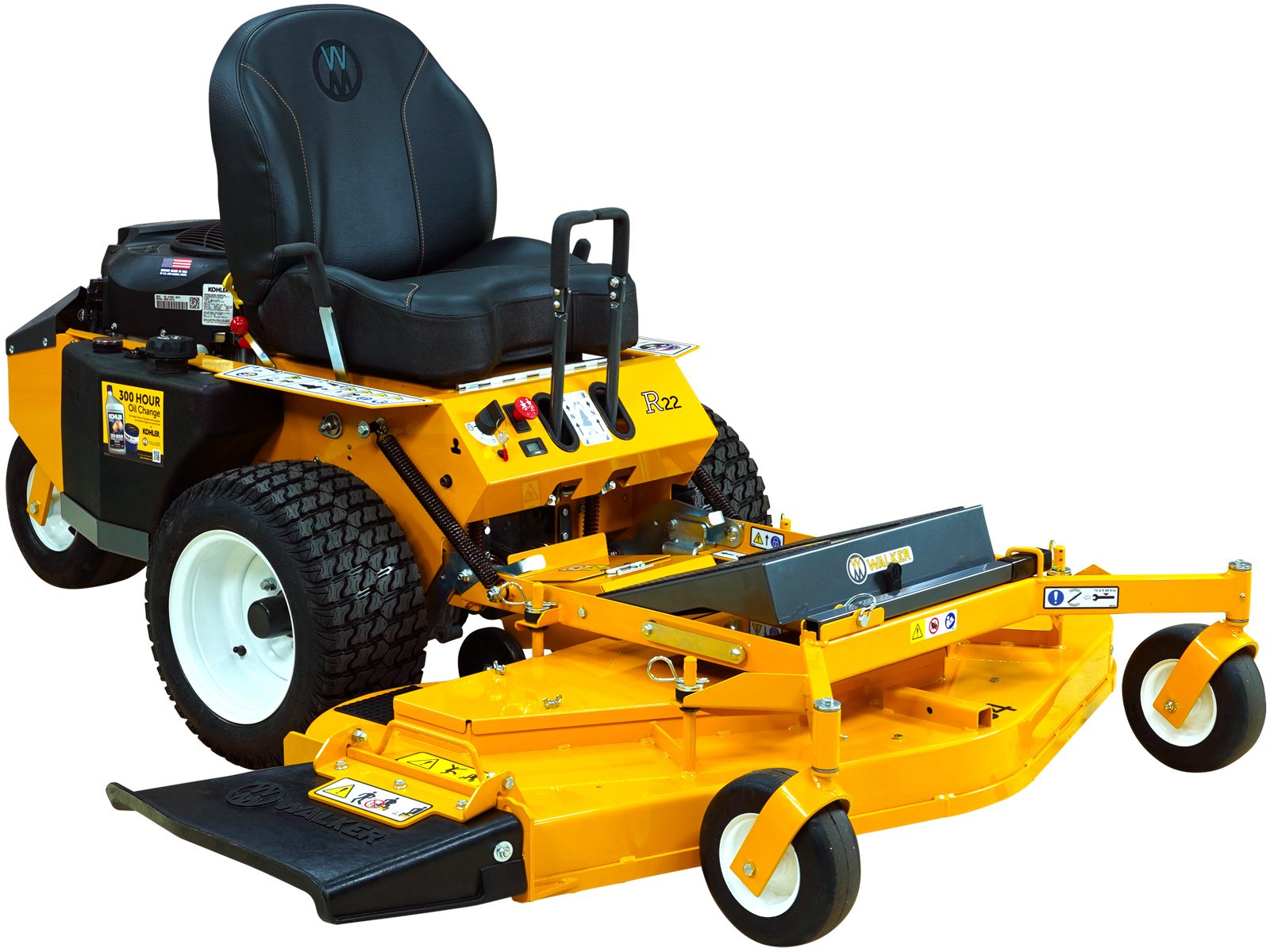

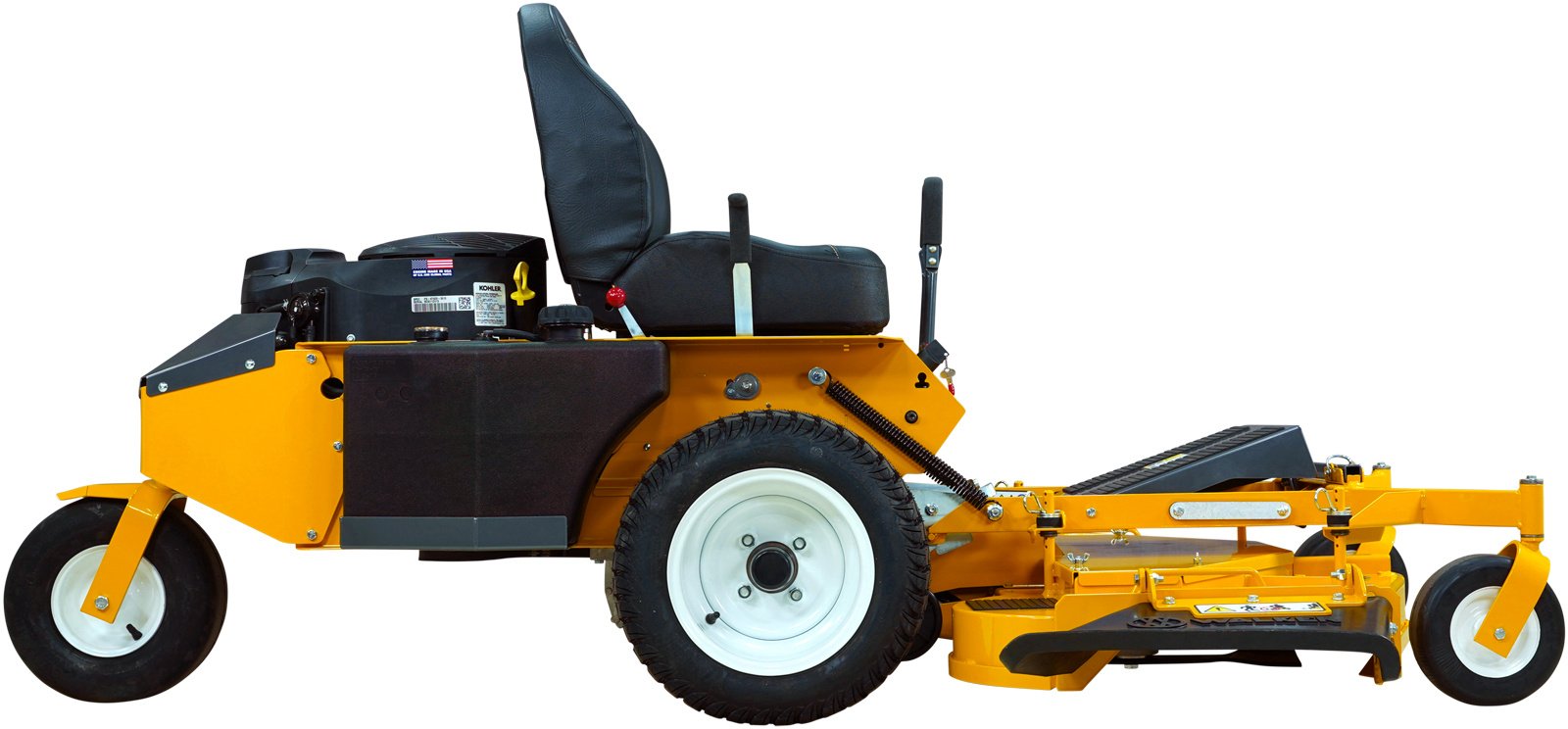

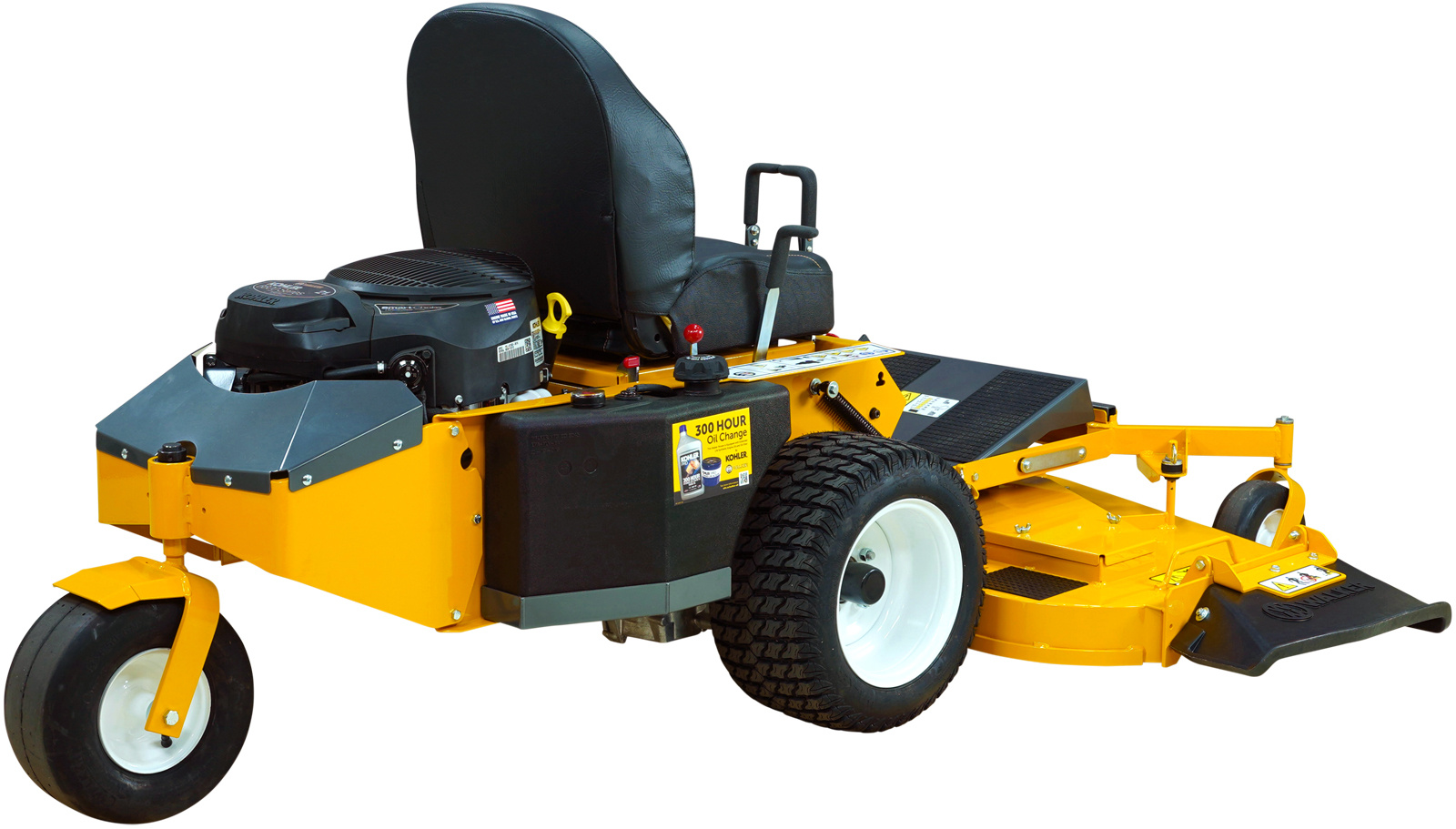

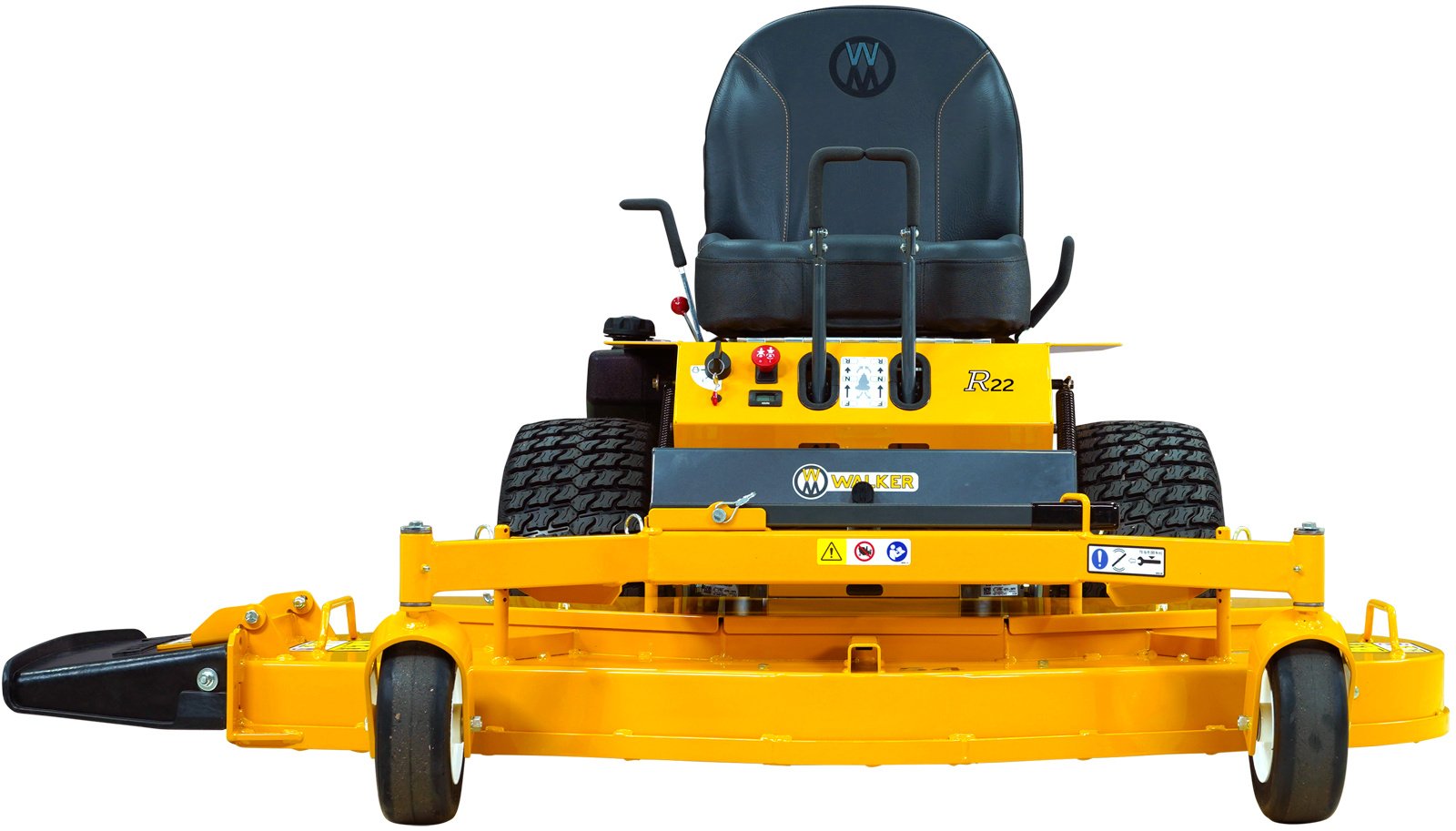

R22 Model Overview

The R22 is the perfect machine for residential properties. With a belt-driven deck, operation is smooth and quiet without compromising on any of the Walker Mower’s distinct advantages.

A variety of improvements have been made to the Model R for better operation, more reliability, and an overall increase in performance. The highlight of these improvements includes using the Kohler KT722 engine. This 22 HP engine has a higher displacement, increased horsepower, and greater torque and is an excellent complement to the earlier updated, larger displacement engine muffler that gives quieter operation.

This machine is a premium Walker Mower priced for residential owners.

Type: Non-Collection
Power: 22 HP
Engine: Kohler KT722
Ideal Application: Residential Properties
Key Attributes: Agile, Accessible, Compact
Standard Options: 18 x 8.5-10 Turf Tire, Standard Seat
Decks: 3 Discharge, 2 Mulching Kits
Popular Add-ons:

LED Headlight Kit
Accelerator Grass Catcher

* MODELS MAY BE SHOWN WITH OPTIONAL EQUIPMENT. APPLICABLE FREIGHT, SETUP, AND TAXES NOT INCLUDED. ADDITIONAL DELIVERY FEES APPLY FOR US TERRITORIES AND STATES OUTSIDE OF THE CONTINENTAL US. OPTIONS AND ACCESSORIES EXTRA. PRICES SUBJECT TO CHANGE WITHOUT NOTICE. MSRP SHOWN IN US DOLLARS ARE FOR DOMESTIC USE ONLY. SEE LOCAL DEALER FOR COMPLETE PRICING AND AVAILABLE OFFERS.

Call Us Now

Specs

Engine

Manufacturer: Kohler

Model: KT722

Displacement: 747 cc (45.6 cu. in.)

Max Power: 22 HP @ 3600 RPM

Governed RPM: 3600

Max Torque: 40.4 ft-lbs

Cooling System: Air

Fuel: Gasoline (unleaded - min. 87 octane)

Fuel Capacity: 3 gal (11.4 liter)


Electrical

Battery: 12V, 300CCA

Charging System: Flywheel Alternator

Charging Output: 18 Amp DC (Regulated)


Transmission

Manufacturer/Model: Dual Independent Hydro-Gear ZT-2200 Integrated Transaxles

Steering: Hand Lever Control, Individual Wheel

Forward Speed Control: Precision Friction Lock Lever, Cruise Control, with Neutral-Park Position

Parking Brake: External Mechanical Cog Lock for each Transaxle (Single Lever Control)

Forward MPH (km/h): 0-7 MPH (0-11 km/h)

Neutral: Transaxle Release by Manual Dump Valve


Blade Drive

PTO Shaft: N/A

Blade Drive Clutch and Brake: Electric Clutch with Brake [Stops Blades within Five (5) Seconds of Disengagement]


Grass Handling

Note: An optional Grass Catcher is available for collection mowing

Grass Catcher Capacity: 31 Gal / 3.3 Bu / 116 L


Deck

Recommended Cut Width: Side Discharge: 42 to 54 in. (107 to 137 cm), Mulch: 42 to 48 in. (107 to 122 cm)

Cutting Height: 1.5 to 4 in. (4 to 10 cm)

Deck Suspension: Independent Torsion-Flex Frame with Caster Wheels and Counterweight Springs


Tires

Drive: 18 x 8.50-10 (Pneumatic 4-Ply, Low Profile)

Tailwheel: 13 x 6.50-6 (Pneumatic 4-Ply)

Deck Caster: 8 x 3.00-4 (Semi-Pneumatic)


Size & Weight

LENGTH

  • Tractor with S48 deck: 96 in (244 cm)

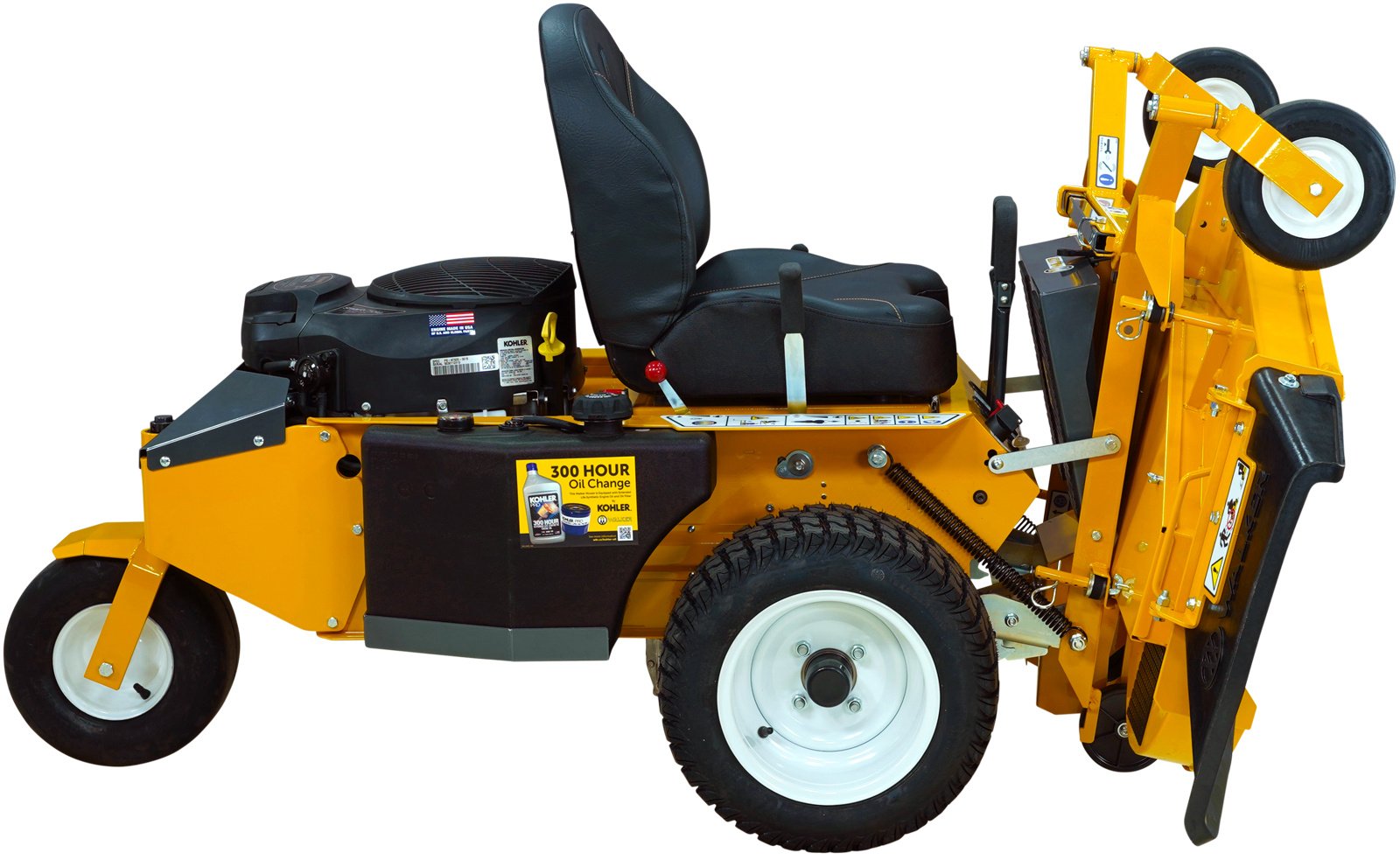

  • Tractor with deck tilted: 74 in (188 cm)
  • Tractor wheel base: 39 in (99 cm)

WIDTH

  • Tractor Only (Outside Tire): 39 in (99 cm)
  • Tractor with S48 deck: 49 in (124.5 cm)

HEIGHT

  • Tractor: 42 in (107 cm)

WEIGHT

  • Tractor Only: 404 lbs (183 kg)
  • Tractor with S48 deck: 593 lbs (269 kg)
