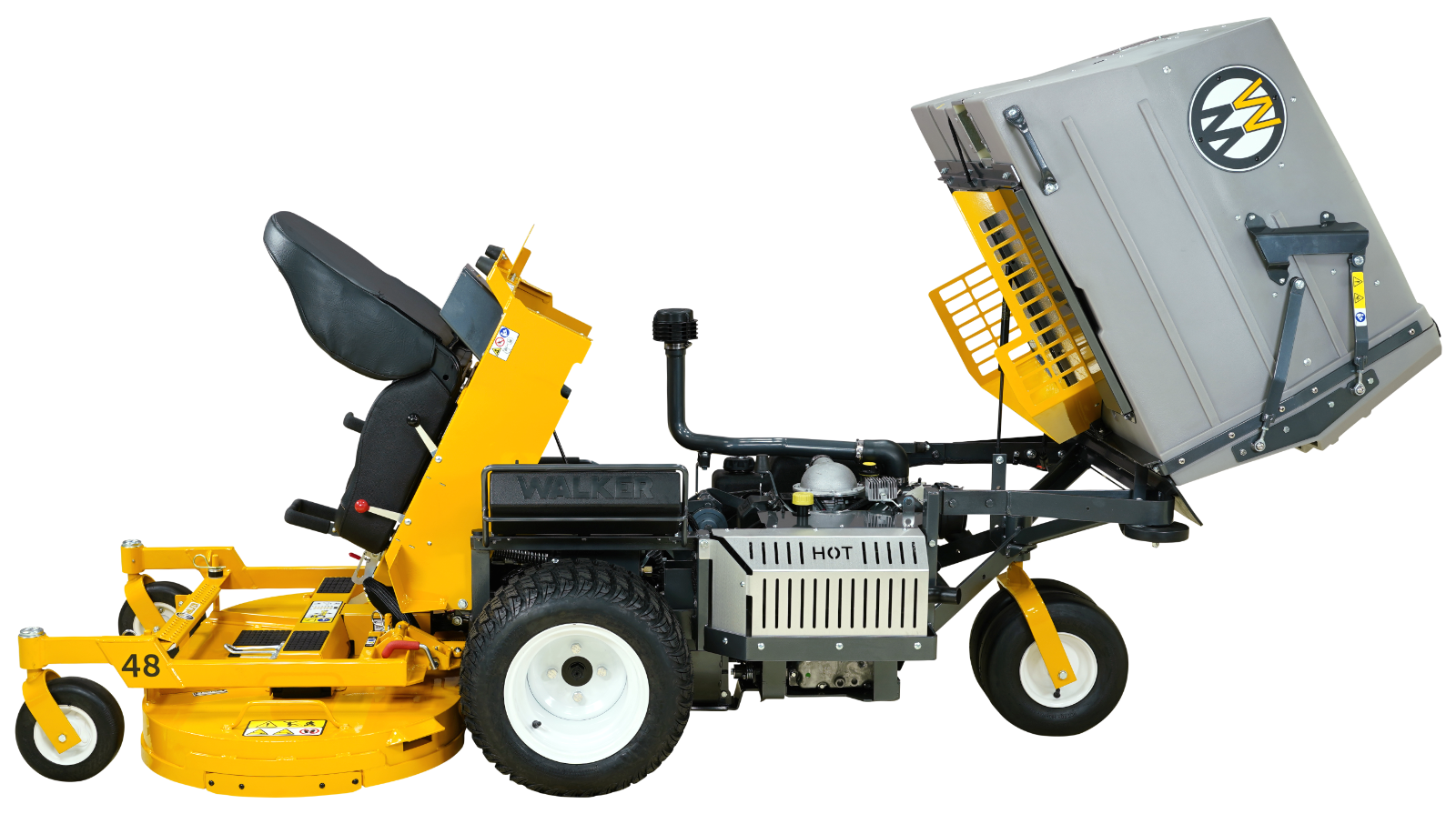

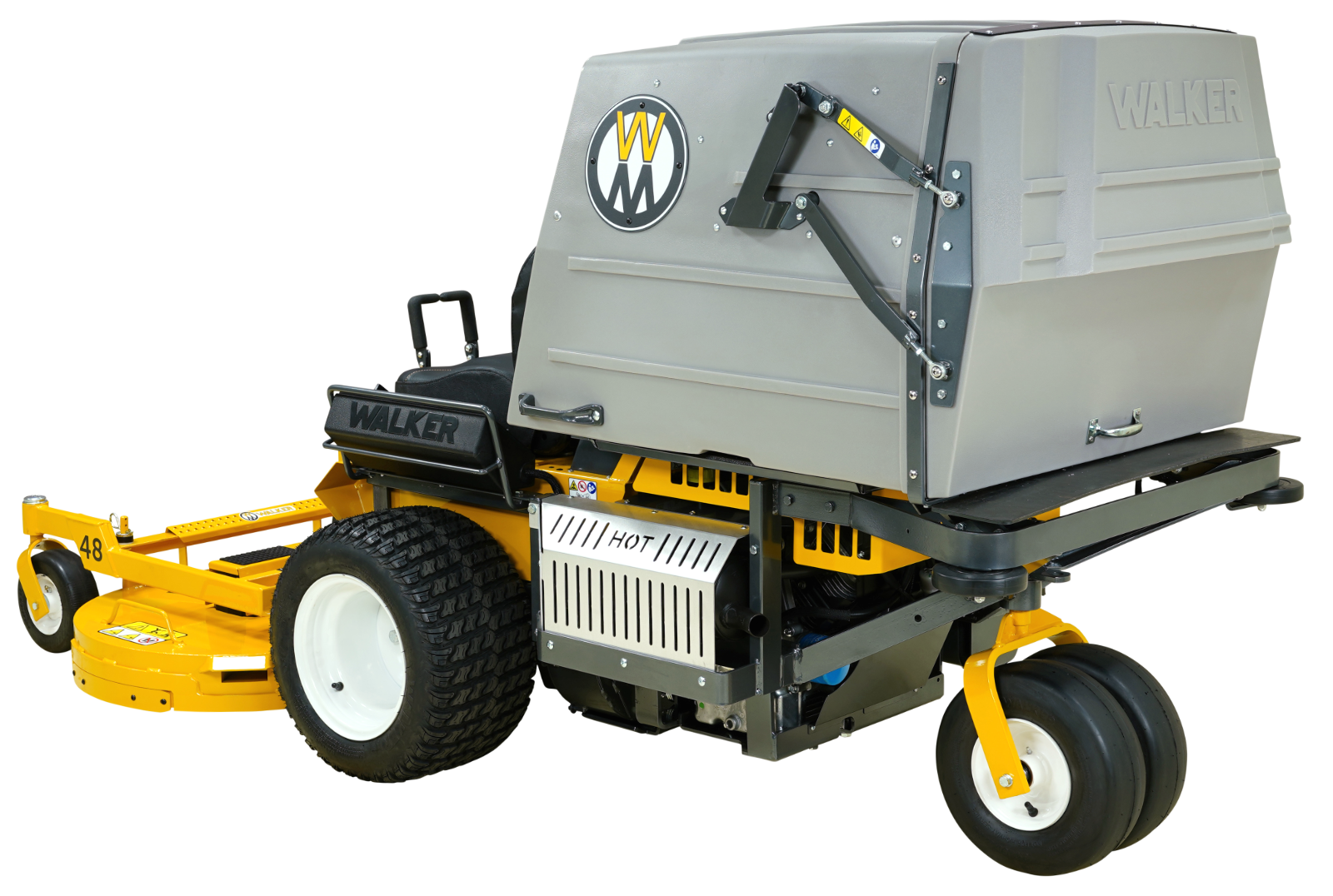

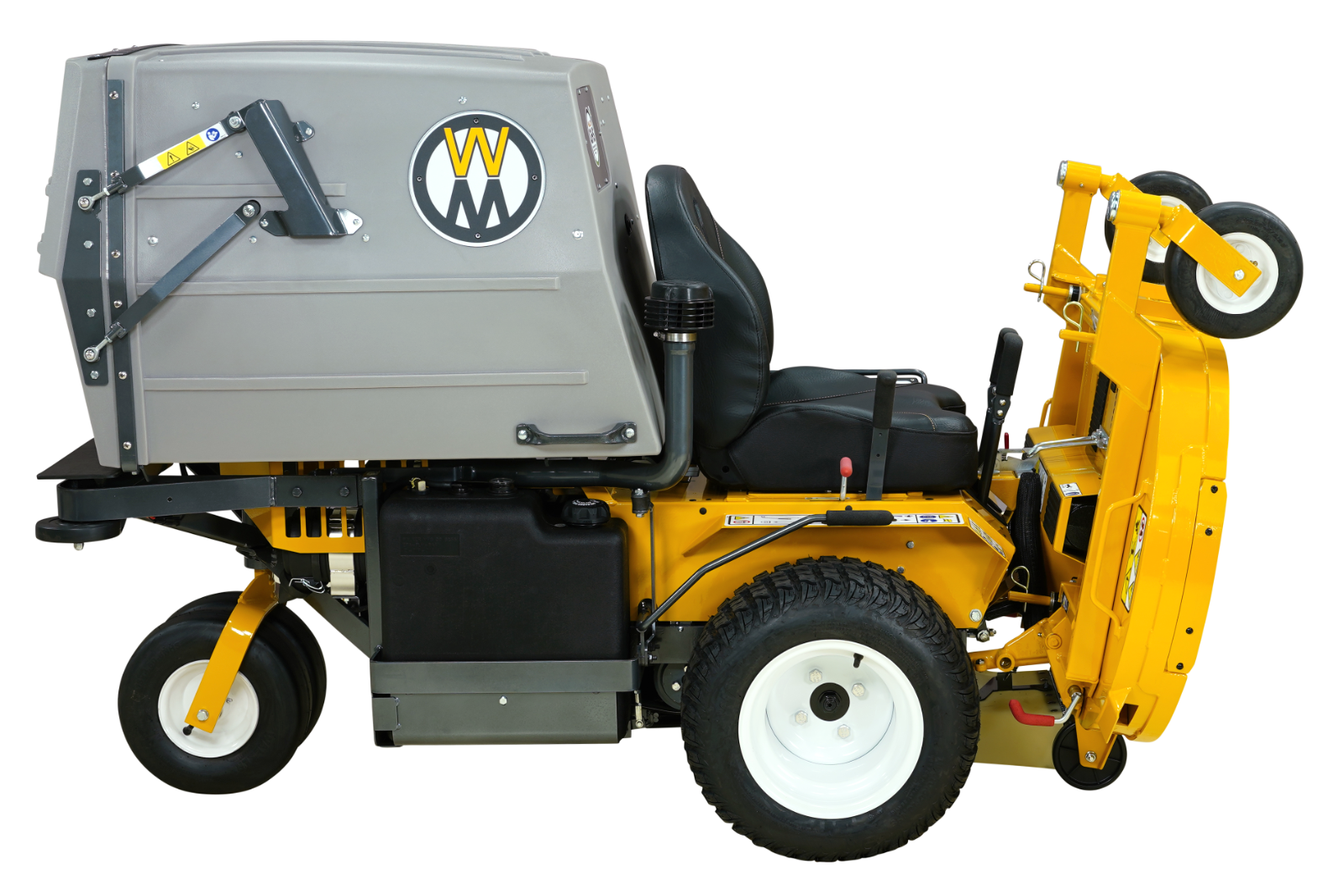

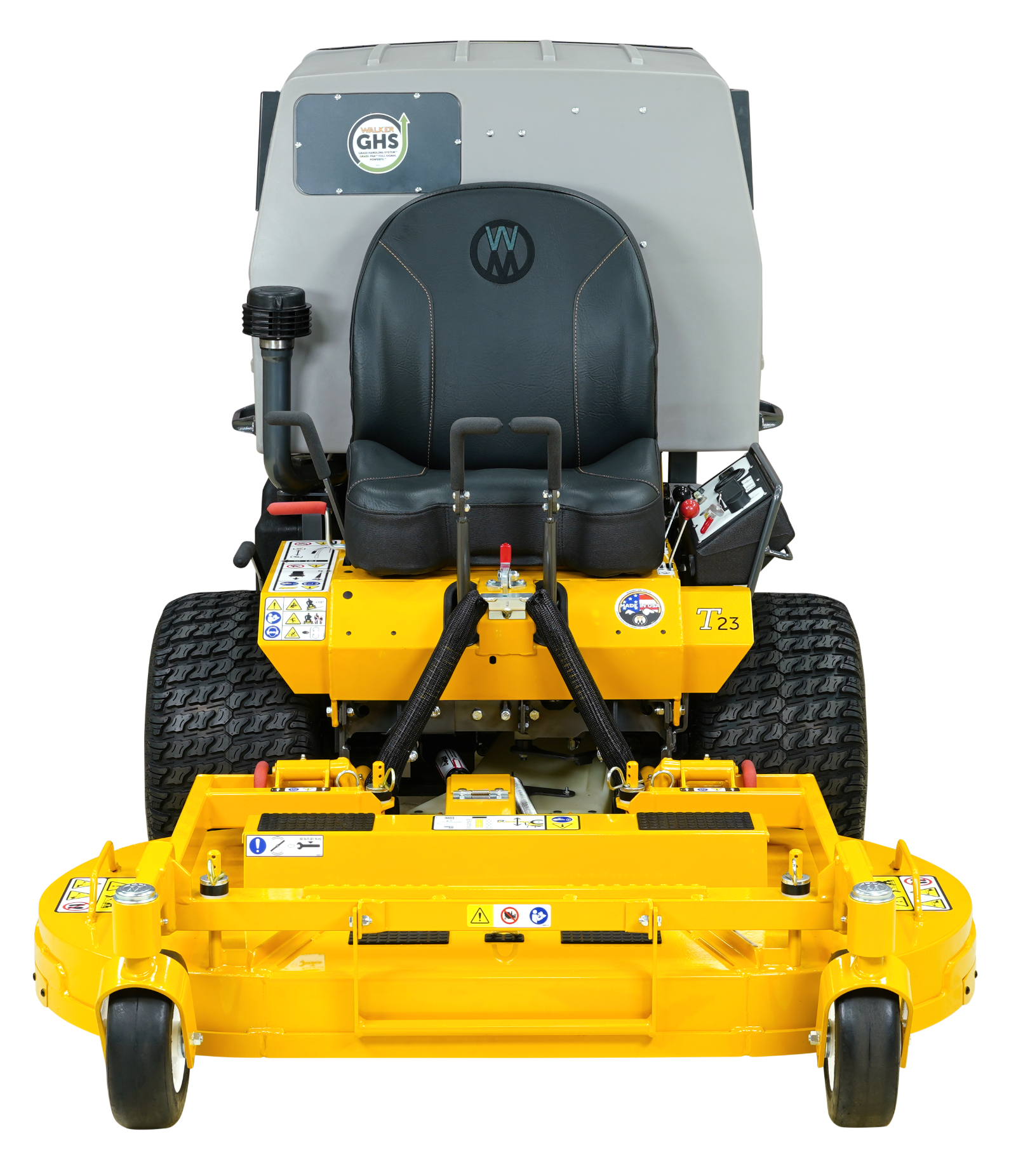

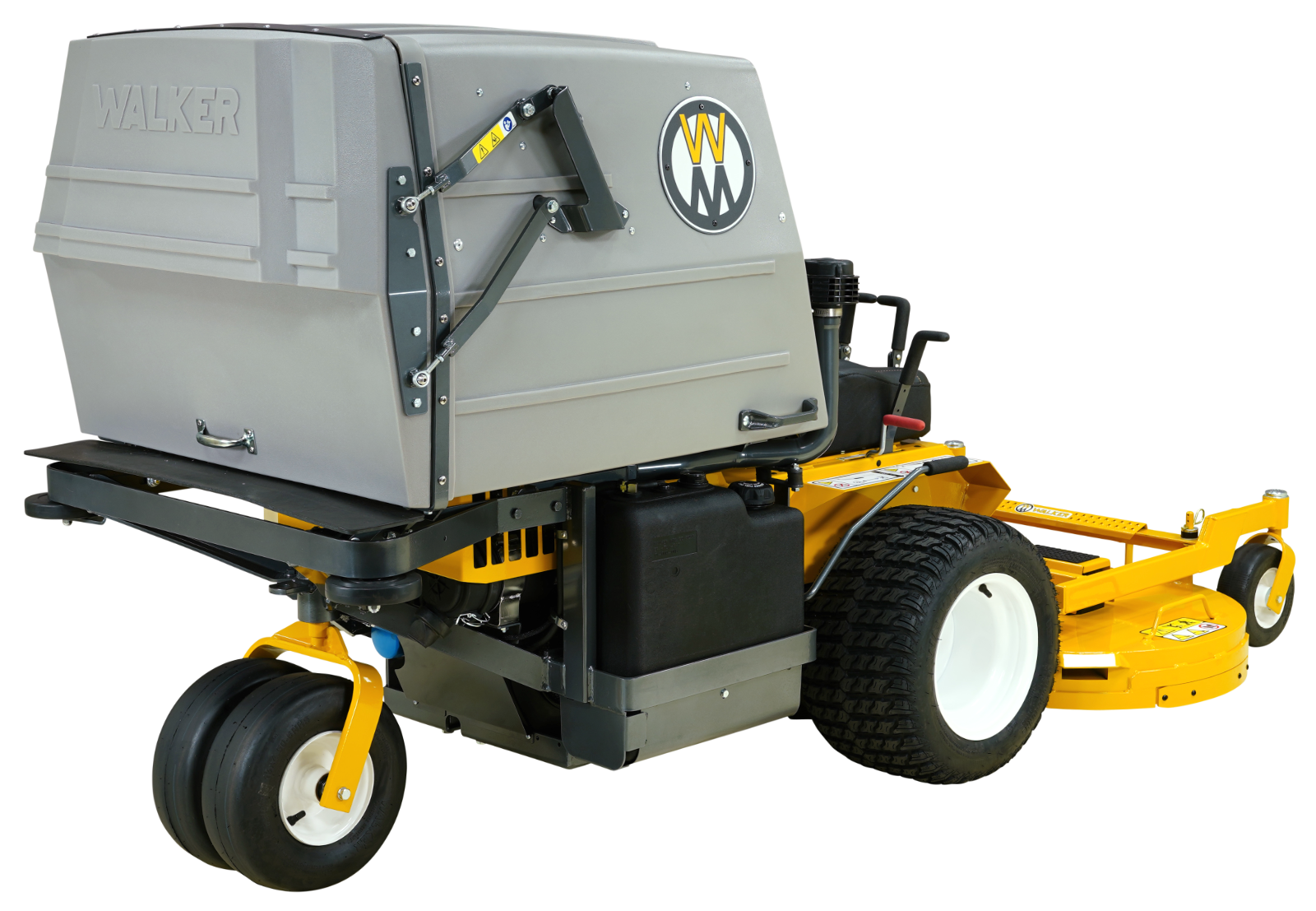

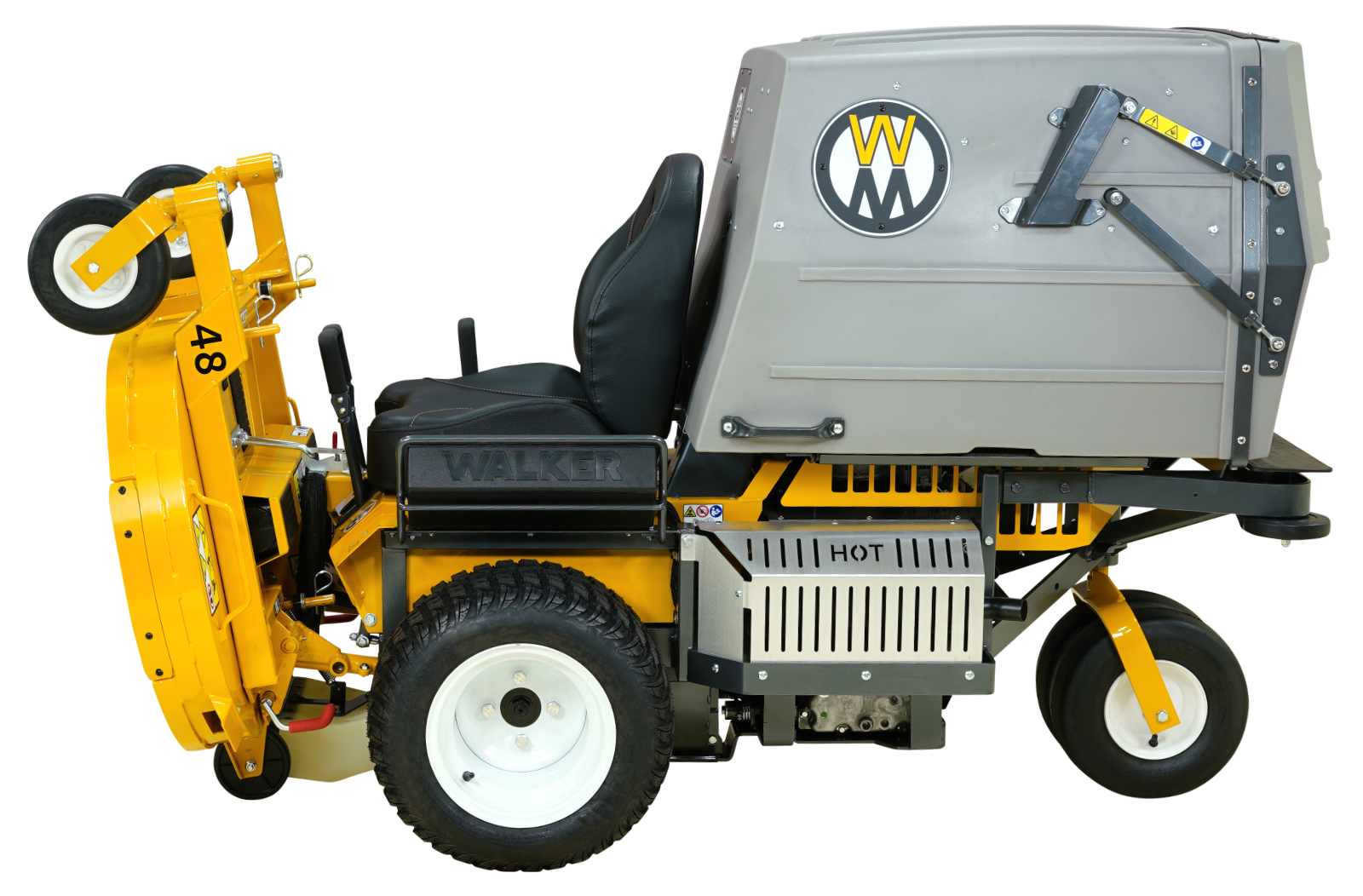

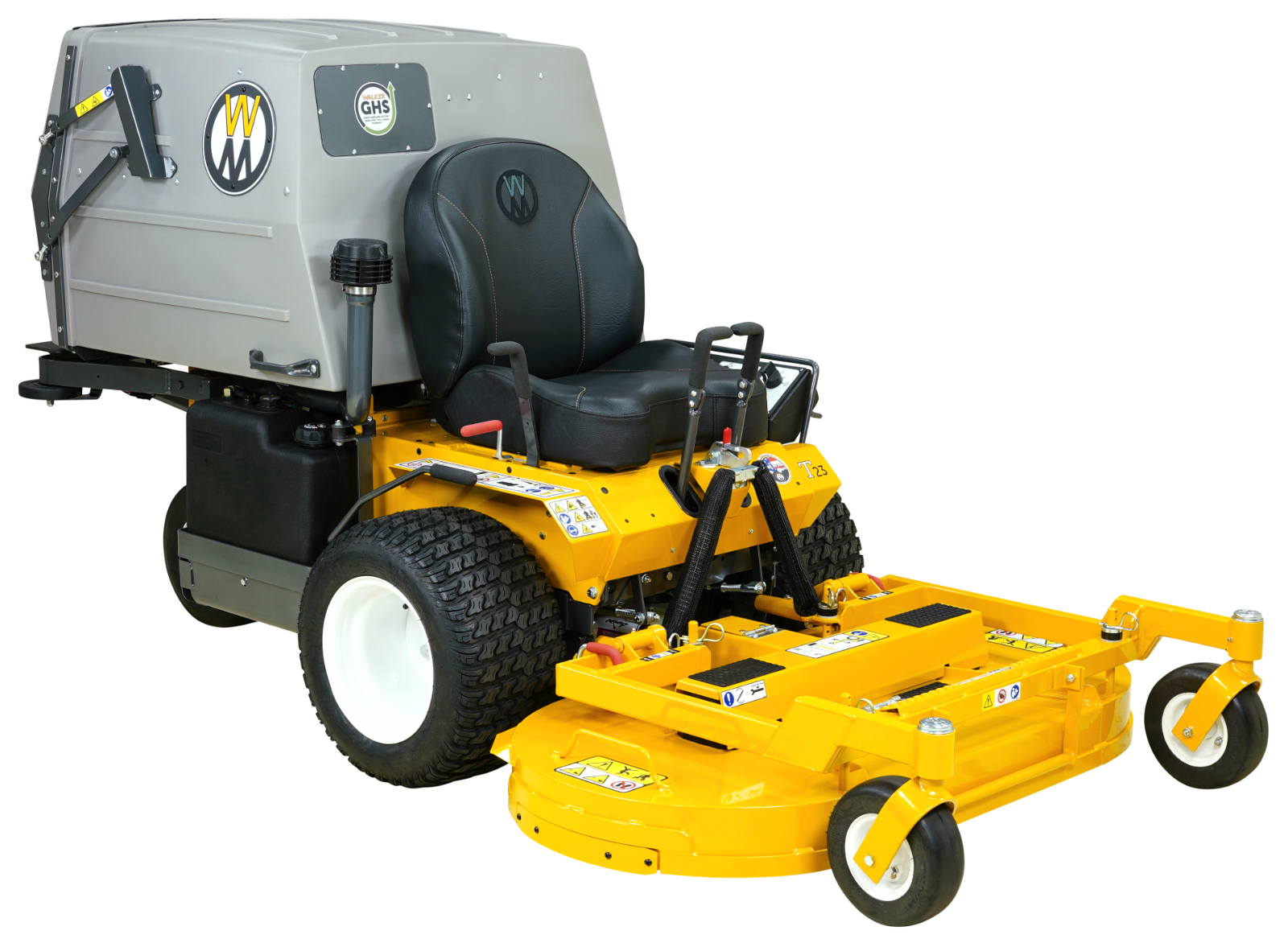

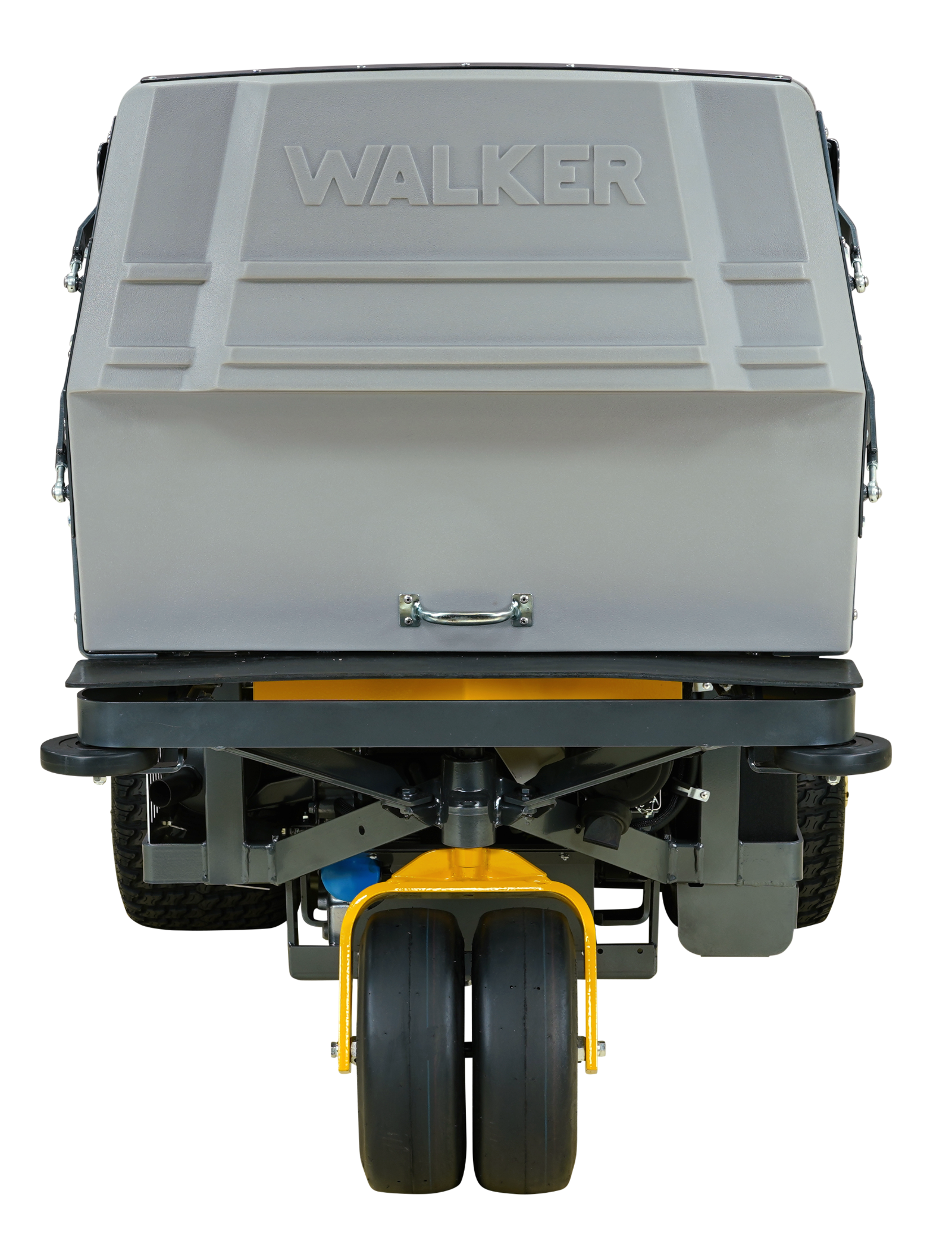

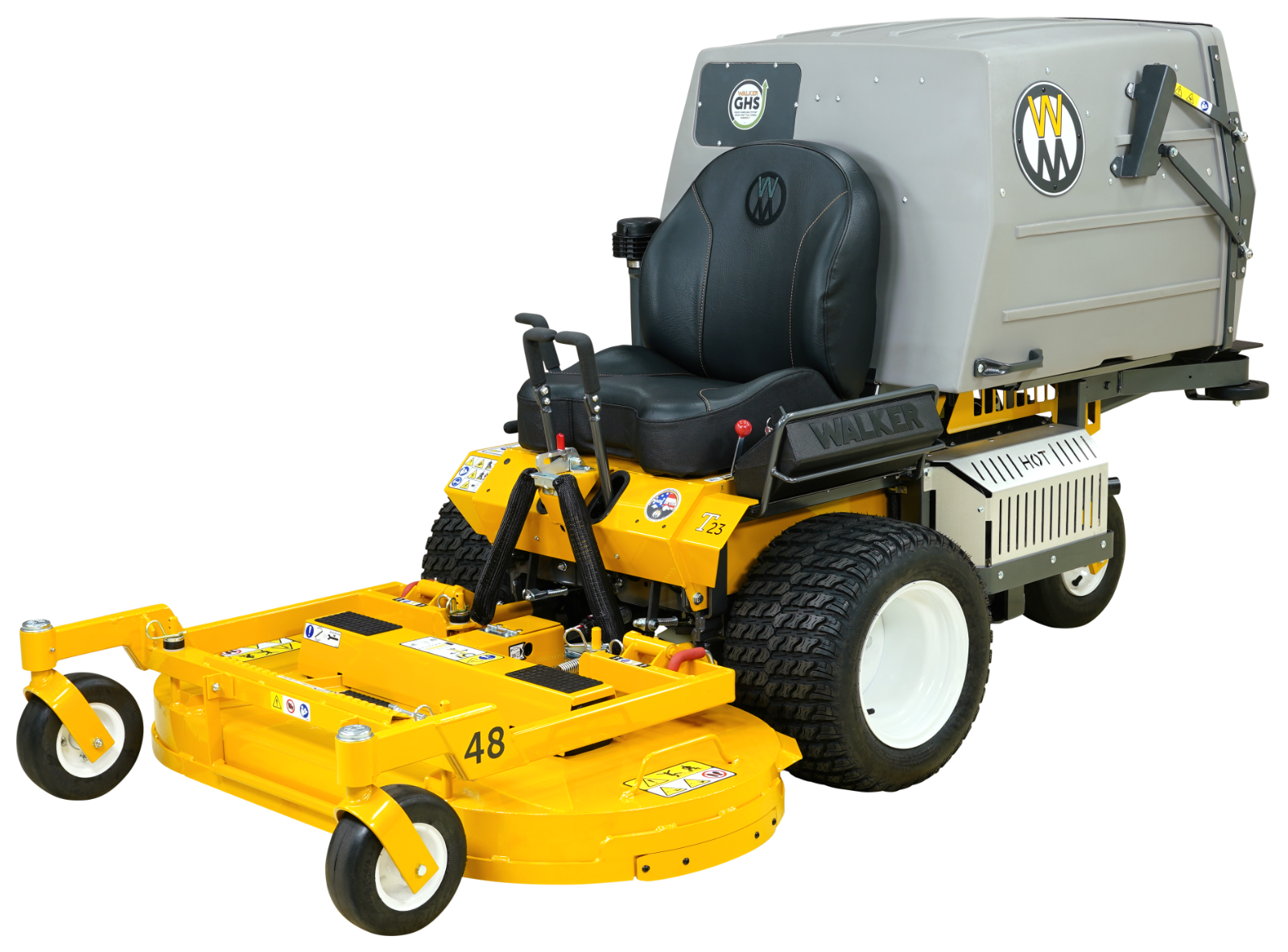

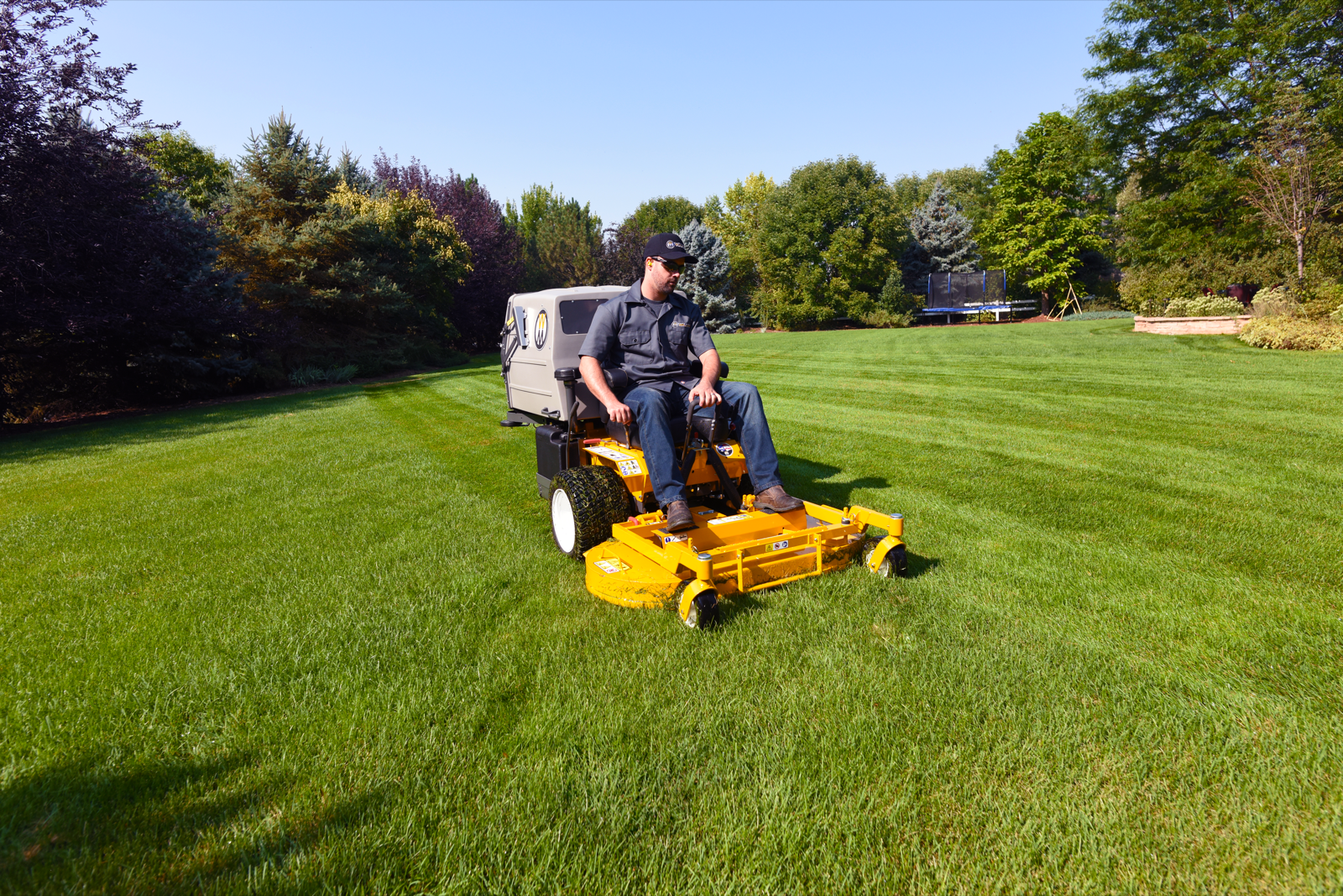

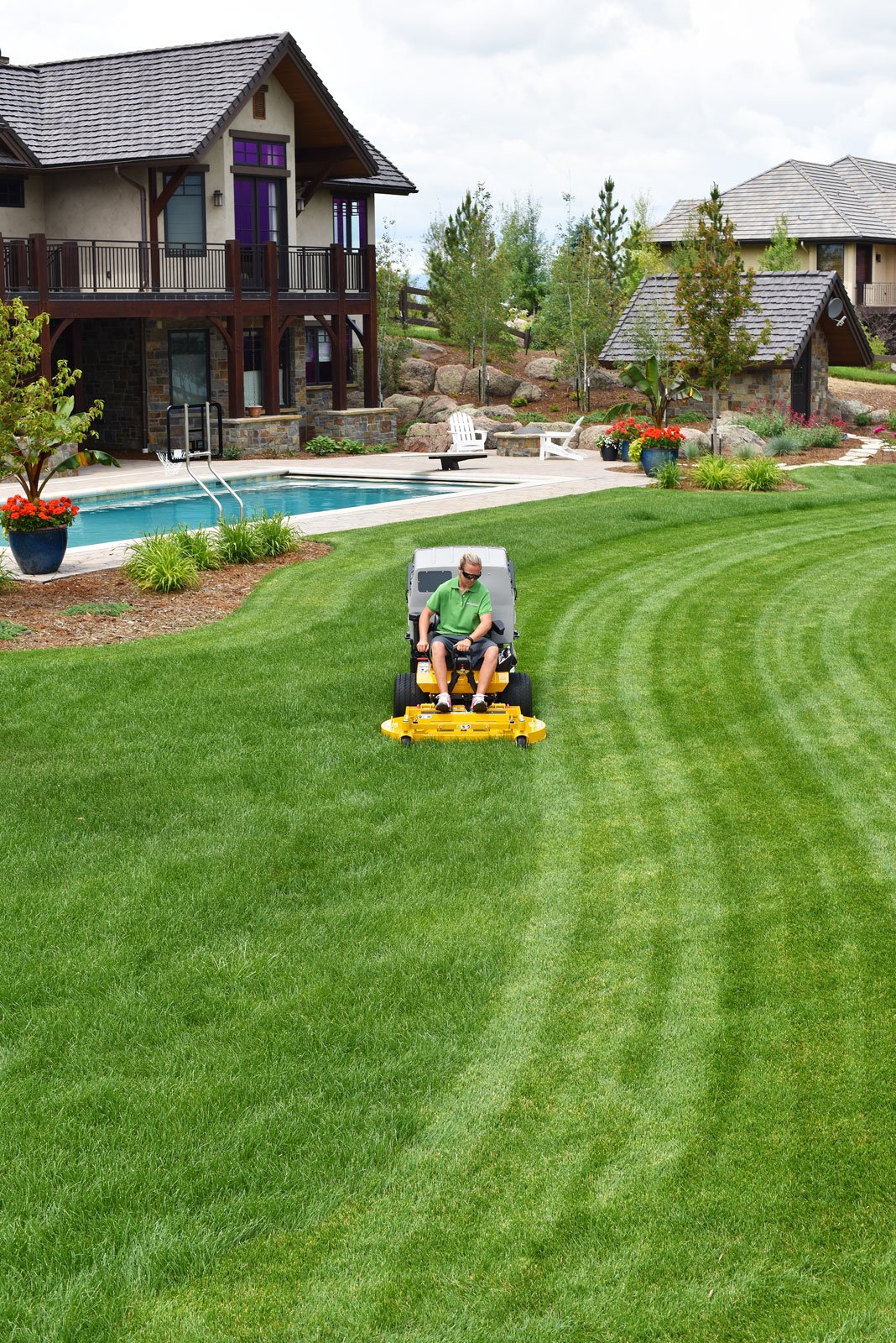

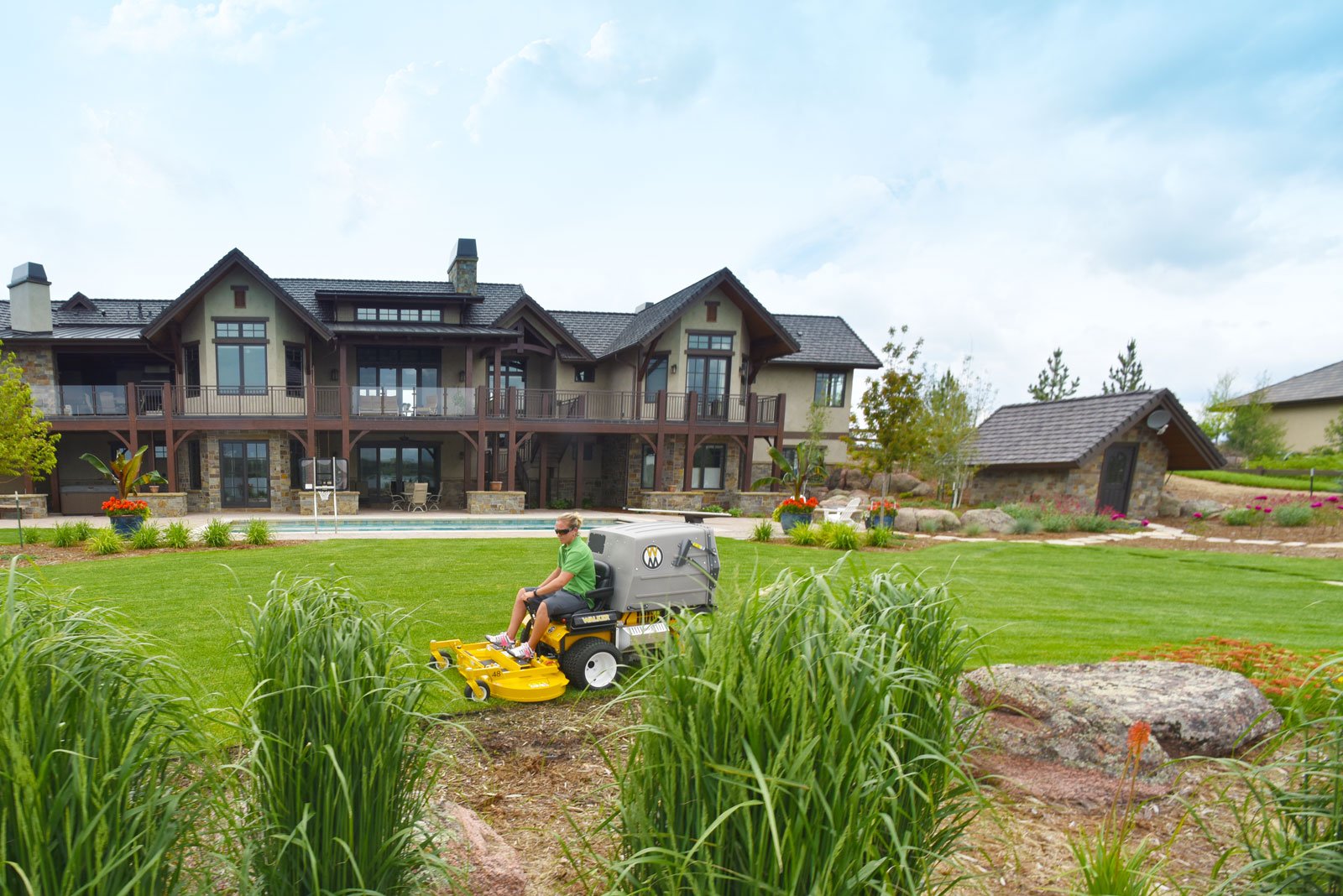

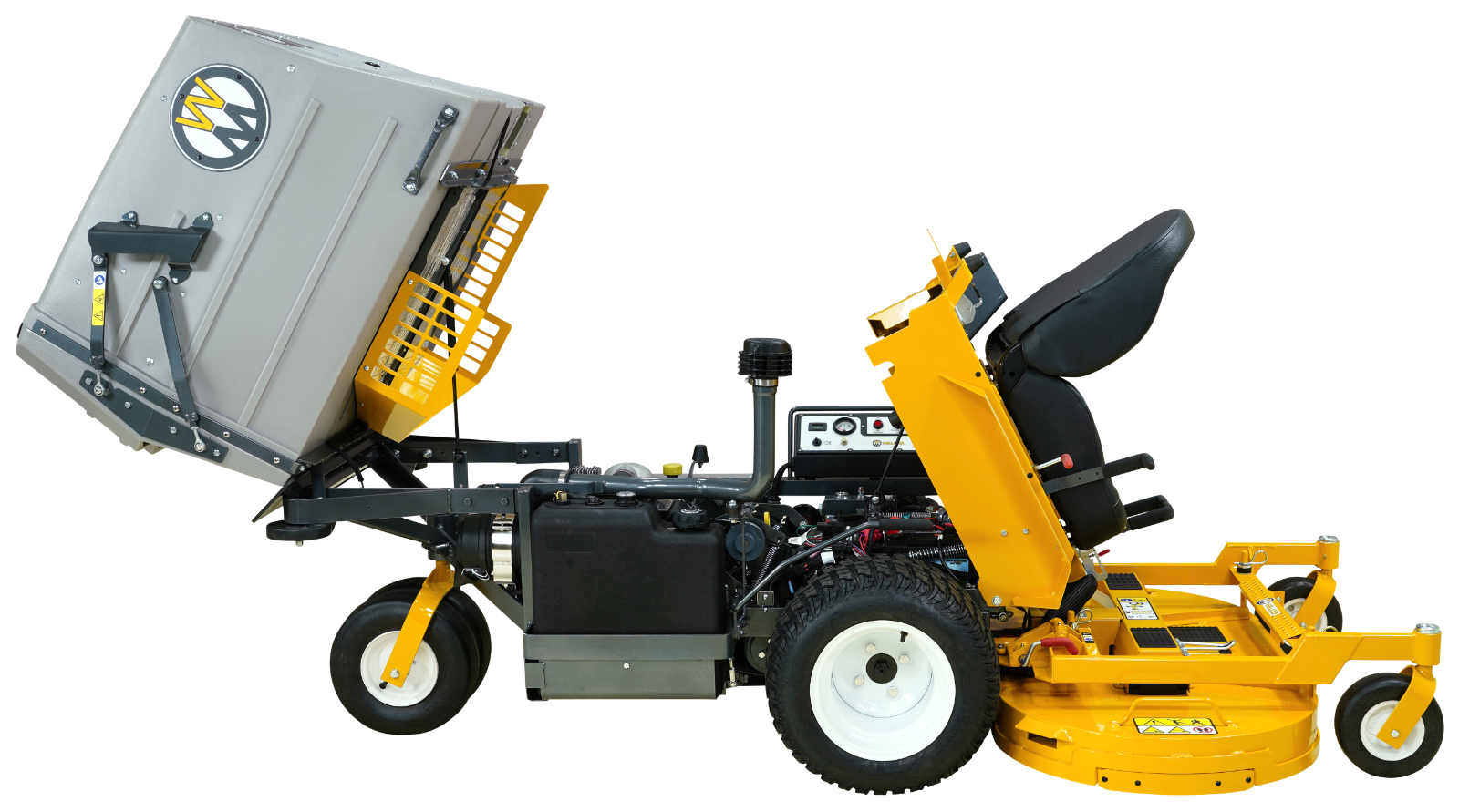

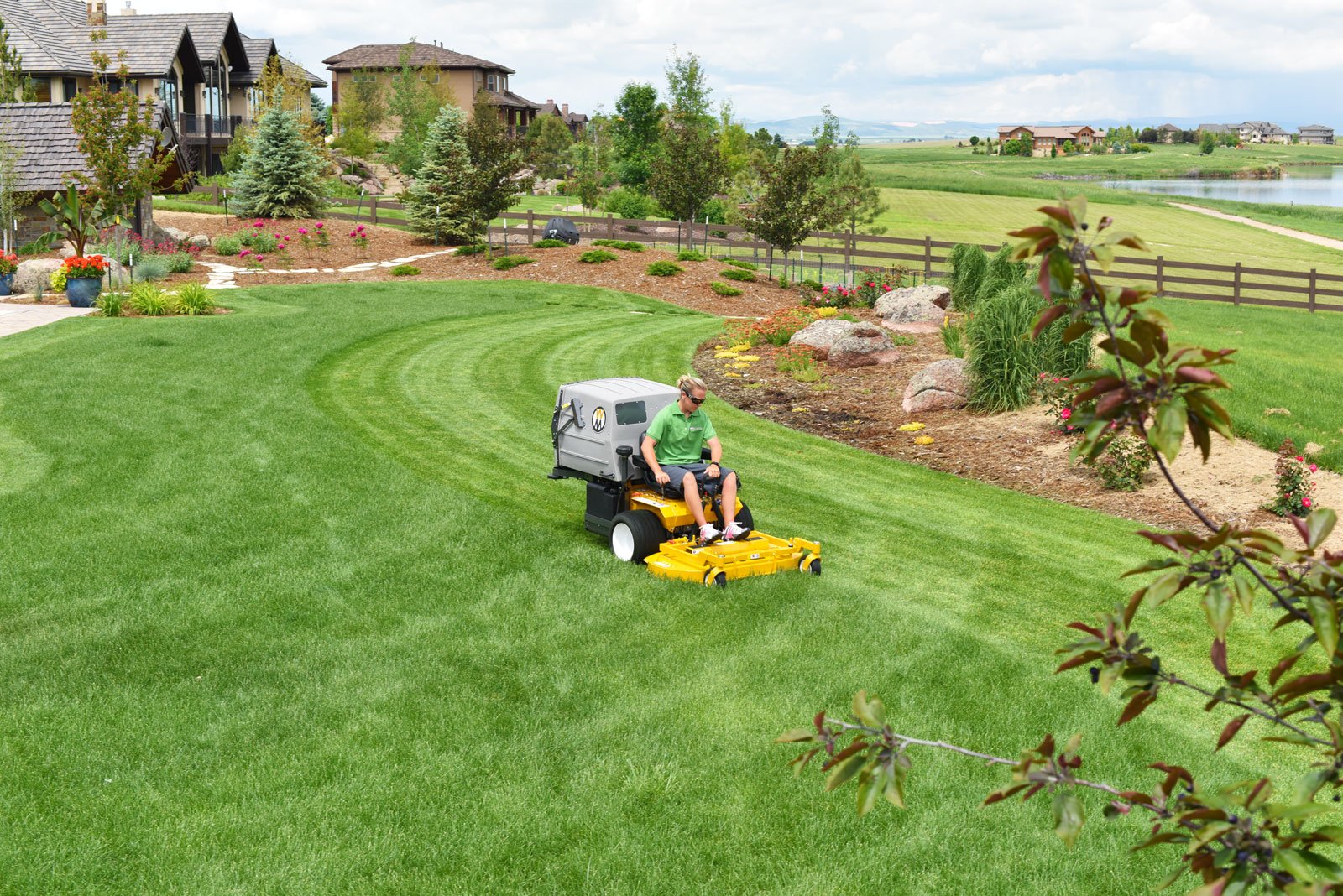

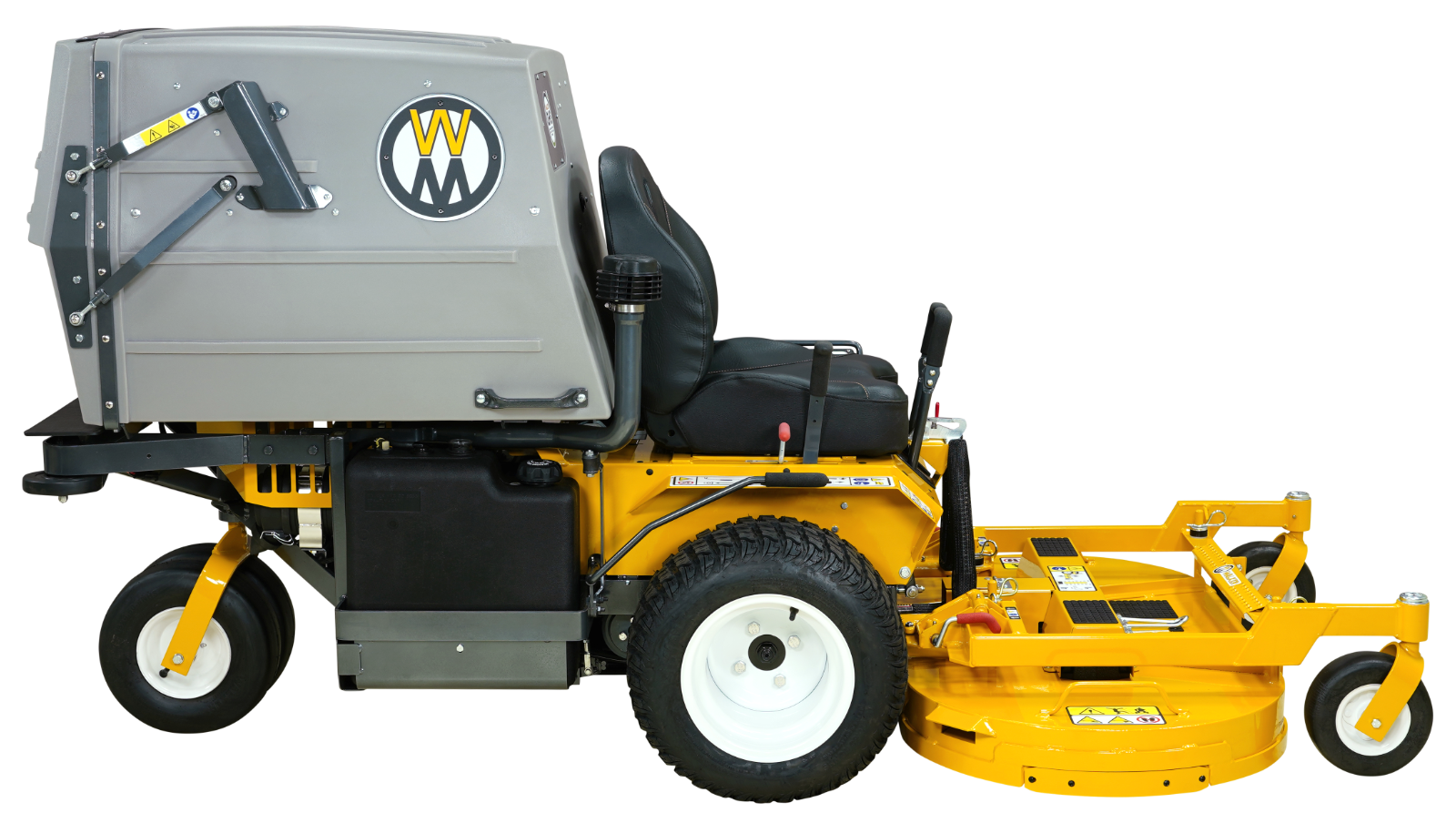

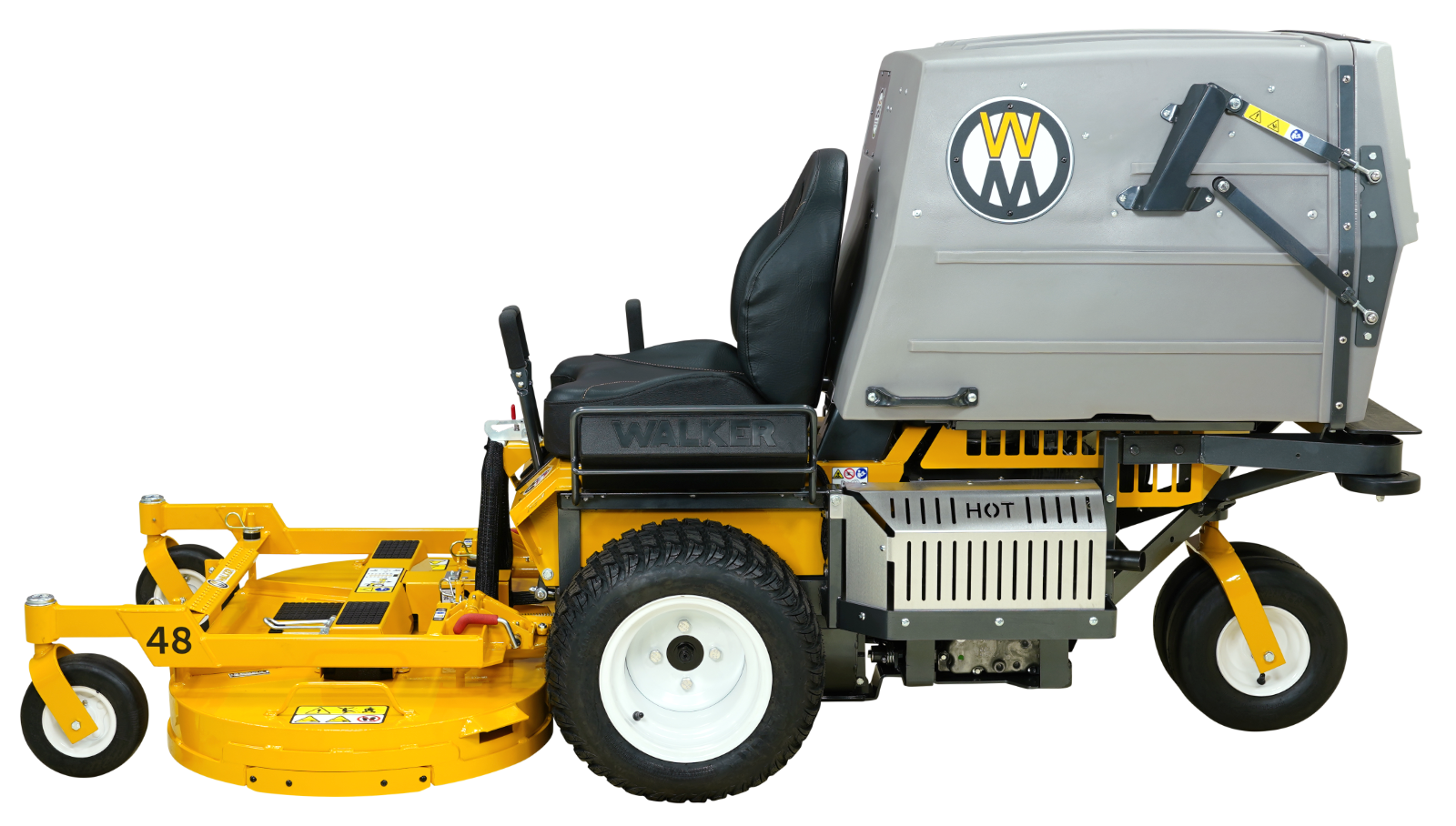

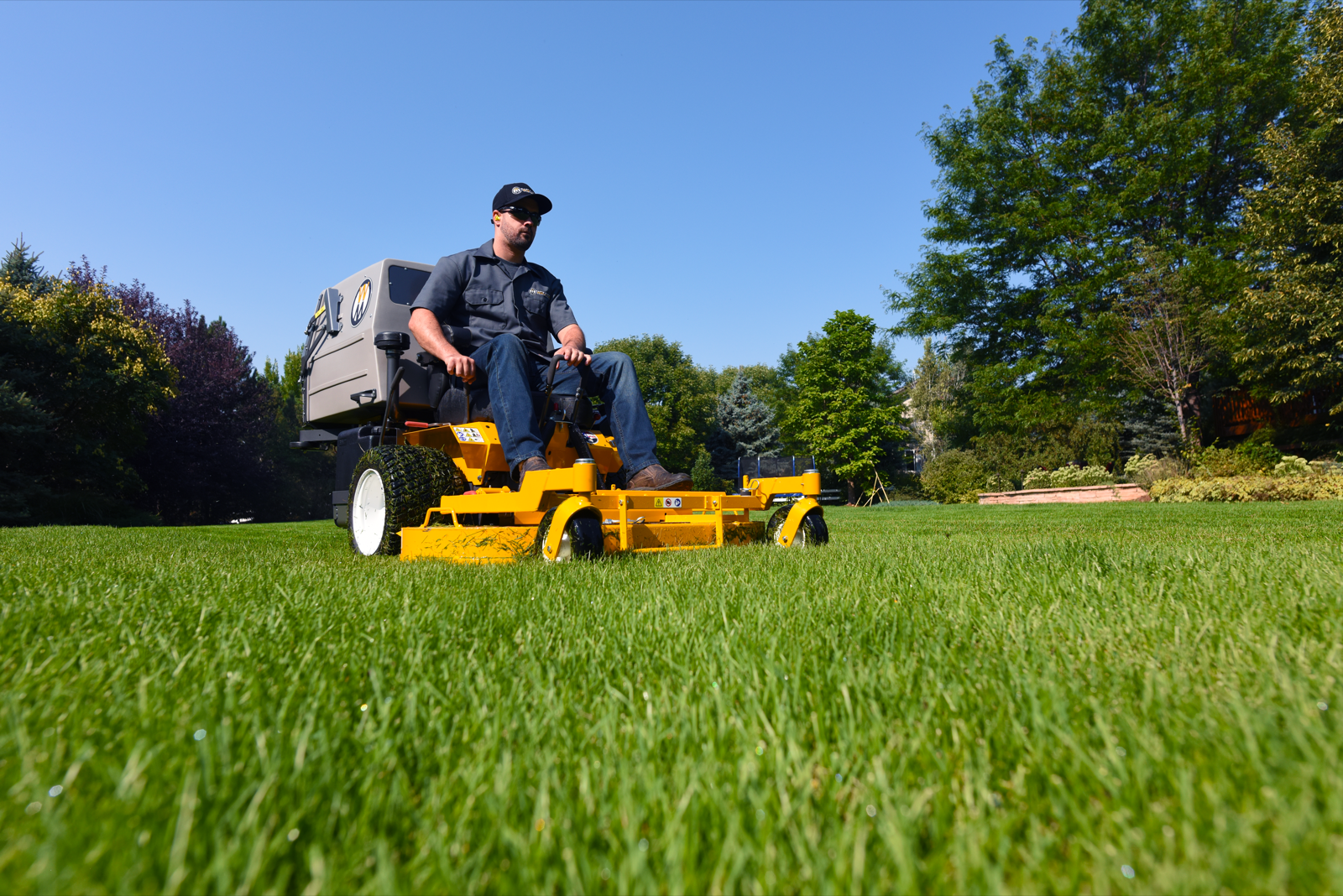

Walker Model T23

Contact us for price

Stock status: Call Store for Availability

T23 Model Overview

Popular with lawn maintenance professionals, the Model T23 offers the perfect balance of power, agility, durability and versatility for a wide range of mowing applications, making it a popular choice for over twenty-five years. The carbureted Kohler Command Pro CH680 engine provides maintainable power for any job.

Type: Collection
Power: 23 HP
Engine: Kohler
Ideal Application:
Commercial Properties, Multi-Unit Complexes
Key Attributes: Compact, Agile, Versatile
Standard Options: 18 x 9.5-8 Turf Tire, Comfort Seat

Decks: 7 Collection, 7 Discharge, 5 Mulching
Popular Add-ons:
Implement Hitch
48” Dozer Blade


* MODELS MAY BE SHOWN WITH OPTIONAL EQUIPMENT. APPLICABLE FREIGHT, SETUP, AND TAXES NOT INCLUDED. ADDITIONAL DELIVERY FEES APPLY FOR US TERRITORIES AND STATES OUTSIDE OF THE CONTINENTAL US. OPTIONS AND ACCESSORIES EXTRA. PRICES SUBJECT TO CHANGE WITHOUT NOTICE. MSRP SHOWN IN US DOLLAR ARE FOR DOMESTIC USE ONLY. SEE LOCAL DEALER FOR COMPLETE PRICING AND AVAILABLE OFFERS.

Call Us Now

Specs

Engine

Manufacturer: Kohler

Model: Command Pro® CH680

Displacement: 674 cc (41.1 cu. in.)

Max Power: 22.5 HP @ 3600 RPM

Max Torque: 36.6 ft-lbs

Cooling System: Air

Fuel: Gasoline (unleaded - 87 octane)

Fuel Capacity: 4.7 gal (17.8 liter)


Electrical

Battery: 12V, 35AH, 300 CCA

Charging System: Flywheel Alternator

Charging Output: 15 Amp DC (Regulated)


Transmission

Manufacturer/Model: Eaton Model 7 transmission with ductile cast iron final drive, Dual Hydrostatic, each wheel independently driven

Steering: Hand Lever Control, Individual Wheel

Forward Speed Control: Precision Friction Lock Lever, Cruise Control, with Neutral-Park Position

Parking Brake: Mechanical Pin Lock in Transmission Gear

Forward MPH (km/h): 0-6.5 MPH (0-10.5 km/h) Infinitely Variable

Neutral: Transmission Release by Manual Dump Valve


Blade Drive

PTO Shaft: Quick Disconnect Splined Shaft with Two (2) High-Speed U-Joints

Blade Drive Clutch and Brake: Manual Belt Tightener Clutch and Band Brake [Stops Blades within Five (5) Seconds of Disengagement]


Grass Handling

Blower: Three-Blade Paddle Wheel. 4-1/2 x 10-1/2 x 1/2 in. (11 x 27 x 1 cm)

Max. Blower RPM: 4000 RPM

Grass Catcher Capacity: 93 Gal / 10.0 Bu / 352 L

Full Signal: Grass-Pak® full signal alerts operator when catcher box is full

Powerfil®: Oscillating Delivery Spout Driven by 12 Volt Electric Gearmotor Spreads Material throughout Interior of Catcher @ 35 Cycles/Min


Deck

Recommended Cut Width: Collection: 36 to 52 in. (91 to 132 cm), Side Discharge: 36 to 74 in (91 to 188 cm), Mulch: 36 to 52 in. (91 to 132 cm)

Cutting Height: 1 to 4 in (2.5 to 10 cm) or 1.5 to 4.5 in (4 to 11.5 cm) (DS52 and DS62 Belt Driven SD Decks Only)

Deck Suspension: Independent Torsion-Flex Frame with Caster Wheels and Counterweight Springs


Tires

Drive: 18 x 9.50-8 (Pneumatic 4-Ply, Standard)

Tailwheel: 13 x 5.00-6 (pneumatic 4-ply, standard dual) 13 x 8.00-6 (pneumatic 4-ply, optional single)

Deck Caster: 8 x 3.00-4 Semi-Pneumatic (Standard)8 x 3.00-4 Pneumatic 4-Ply (Optional)


Size & Weight

LENGTH

  • Tractor Only: 64.25 in (164 cm)
  • Tractor with C48 deck: 93.25 in (237 cm)
  • Tractor with deck: 77 in (196 cm)
  • Tractor wheel base: 42.25 in (107 cm)

WIDTH

  • Tractor Only (Outside Tire): 39 in (99 cm)
  • Tractor with C48 deck: 49.25 in (125 cm)
  • Tread Width: 31.75 in (80.7 cm)

HEIGHT

  • Tractor: 50 in (127 cm)

WEIGHT

  • Tractor Only: 820 lbs (372 kg)
  • Tractor with C48 deck: 1039 lbs (471 kg)
