Manufacturer: Kohler

Model: Command Pro^® ECH749

Displacement: 747 cc (45.6 cu. in.)

Max Power: 26.5 HP @ 3600 RPM

Max Torque: 40 ft-lbs

Cooling System: Air

Fuel: Gasoline (unleaded - min. 87 octane)

Fuel Capacity: 4.7 gal (17.8 liter)

Battery: 12V, 35AH, 340 CCA

Charging System: Flywheel Alternator

Charging Output: 25 Amp DC (Regulated)

Manufacturer/Model: Dual Hydrostatic, Eaton Model 7, Each Wheel Independently Driven

Steering: Hand Lever Control, Individual Wheel

Forward Speed Control: Precision Friction Lock Lever, Cruise Control, with Neutral-Park Position

Parking Brake: Mechanical Pin Lock in Transmission Gear

Forward MPH (km/h): 0-7 MPH (0-11) Infinitely Variable

Neutral: Transaxle Release by Manual Dump Valve

PTO Shaft: Quick Disconnect Splined Shaft with Two (2) High-Speed U-Joints

Blade Drive Clutch and Brake: Manual Belt Tightener Clutch and Band Brake [Stops Blades within Five (5) Seconds of Disengagement]

Blower: 10.5 in. Diameter, Three-Blade Paddle Wheel

Max. Blower RPM: 4000 RPM

Grass Catcher Capacity: 93 Gal / 10.0 Bu / 352 L

Full Signal: Oscillating Vane Switch Mounted on Grass Delivery Spout Triggers Horn Signal

Powerfil^®: Oscillating Delivery Spout Driven by 12 Volt Electric Gearmotor Spreads Material throughout Interior of Catcher @ 35 Cycles/Min

Recommended Cut Width: Collection:42 to 52 in. (107 to 132 cm), Side Discharge: 42 to 74 in (107 to 188 cm), Mulch: 42 to 52 in. (107 to 132 cm)

Cutting Height: 1.5 to 4 in. (4 to 10 cm) or 1.5 to 4.5 in. (4 to 11.5 cm) (DS52 & DS62 Belt Driven Decks Only)

Deck Suspension: Independent Torsion-Flex Frame with Caster Wheels and Counterweight Springs

Drive: 18 x 9.50-8 (Pneumatic 4-Ply, Standard) 18 x 10.50-10 (Pneumatic 4-Ply, Optional Low-Profile)

Tailwheel: 13 x 4.50-6 (Pneumatic 6-Ply, Standard Dual) 13 x 8.00-6 (Pneumatic 4-Ply, Optional Single)

Deck Caster: 8 x 3.00-4 (Semi-Pneumatic, All Decks Except DS52, DS62, DS74) 8 x 3.00-4 Pneumatic 4-Ply (Optional), All Decks Except DS52, DS62, DS74

LENGTH

• Tractor Only: 64.25 in (164 cm)

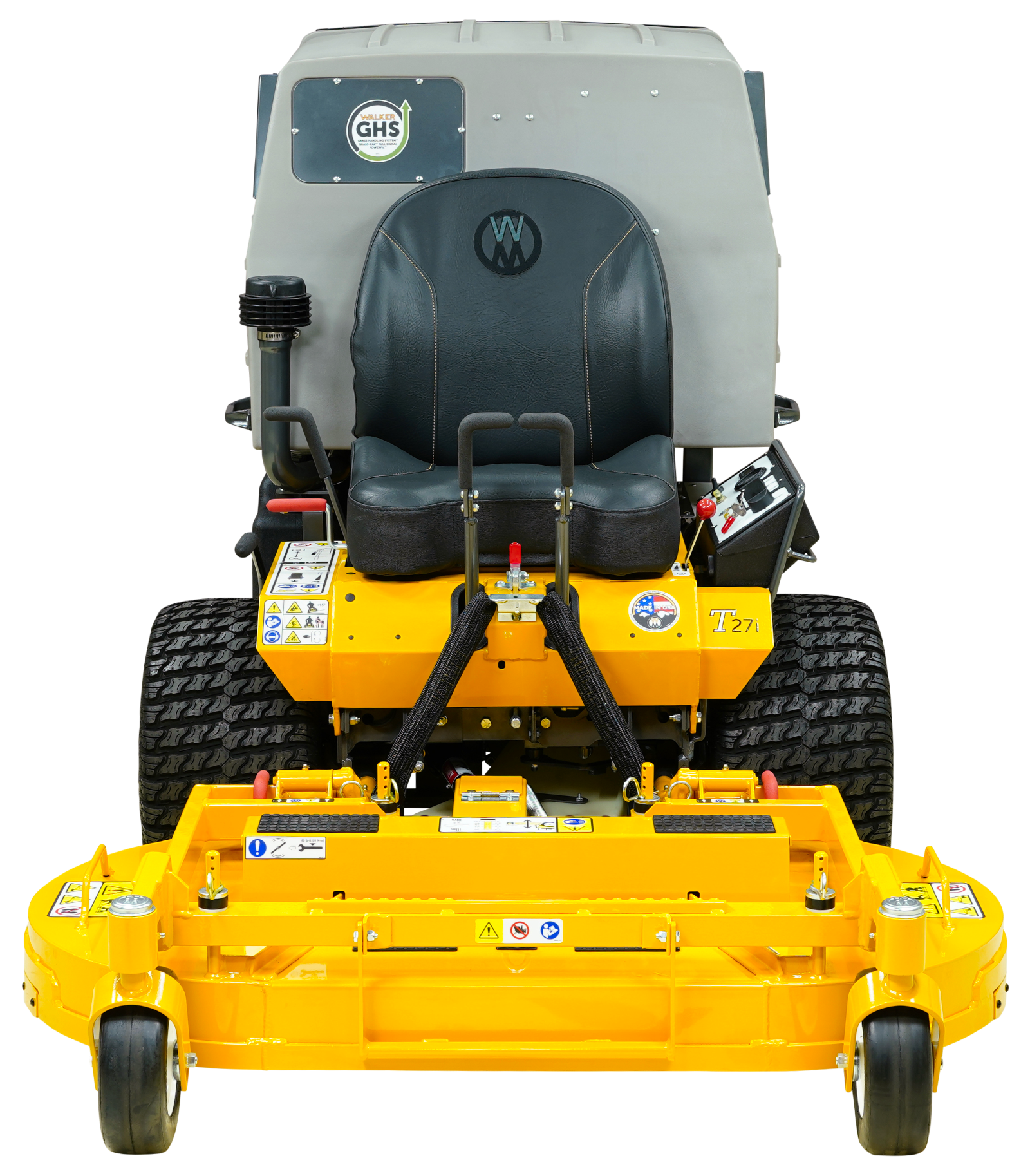

• Tractor with C48 deck: 93 in (236 cm)

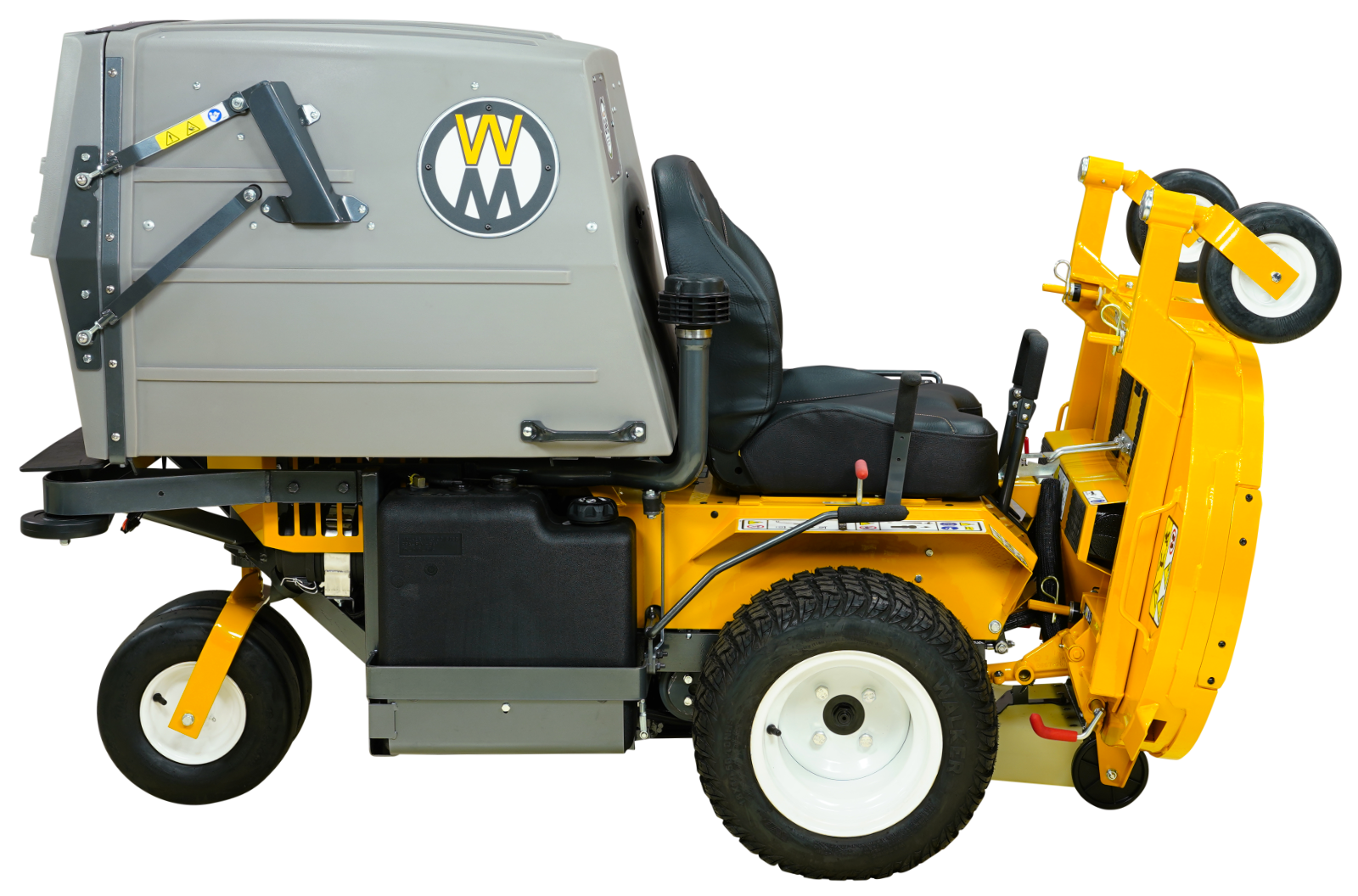

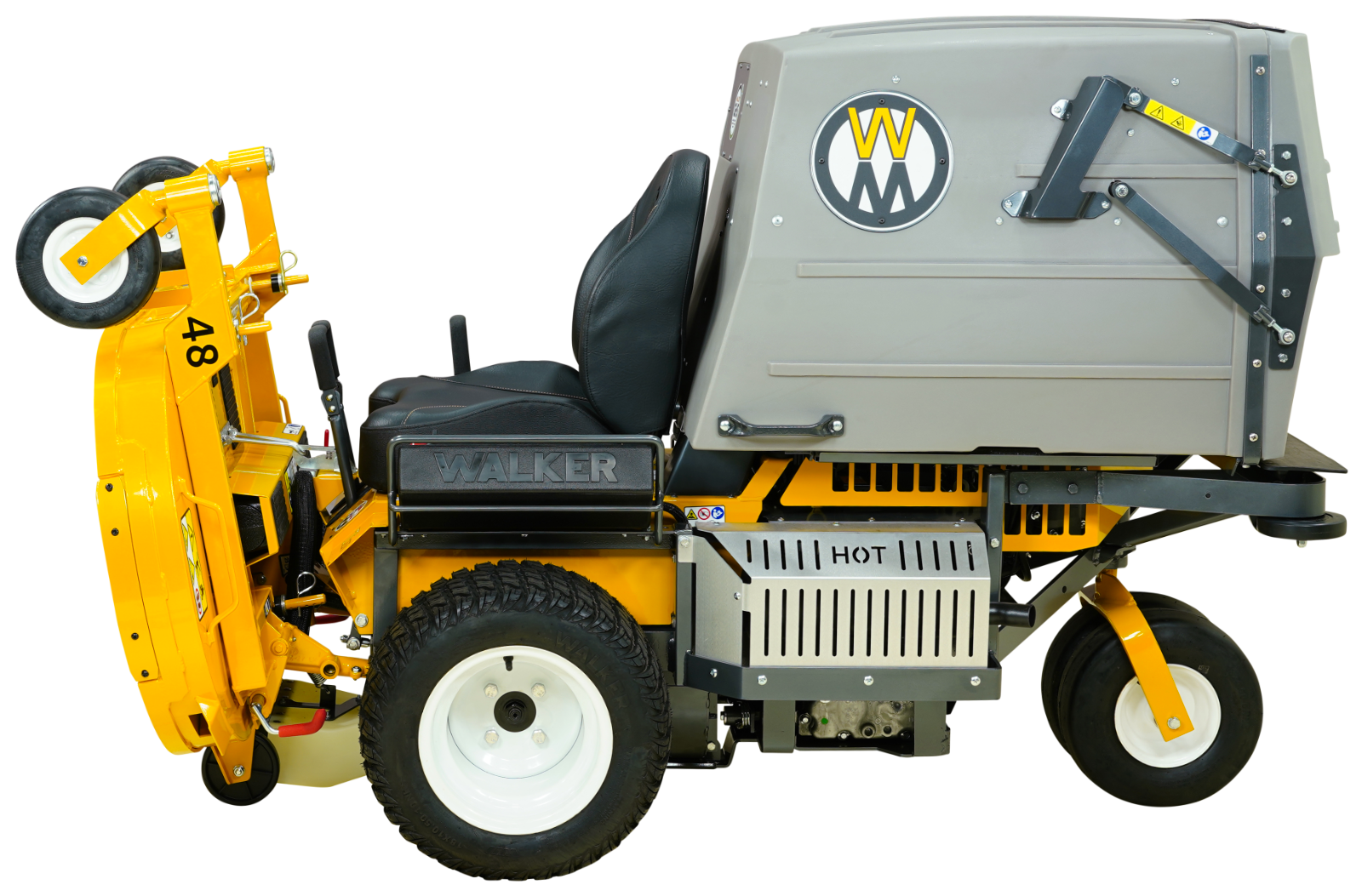

• Tractor with deck tilted: 77 in (196 cm)
• Tractor wheel base: 41 in (104 cm)

WIDTH

• Tractor Only (Outside Tire): 39 in (99 cm)
• Tractor with C48 deck: 49.25 in (125 cm)
• Tread Width: 30 in (77 cm)

HEIGHT

• Tractor: 50 in (127 cm)

WEIGHT

• Tractor Only: 815 lbs (370 kg)
• Tractor with C48 deck: 1034 lbs (469 kg)
