Wright Equipment ZXL

Contact us for price

Stock status: Call Store for Availability

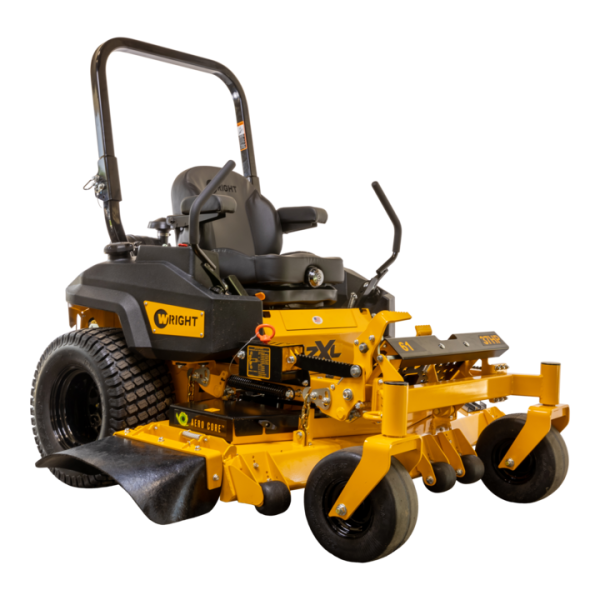

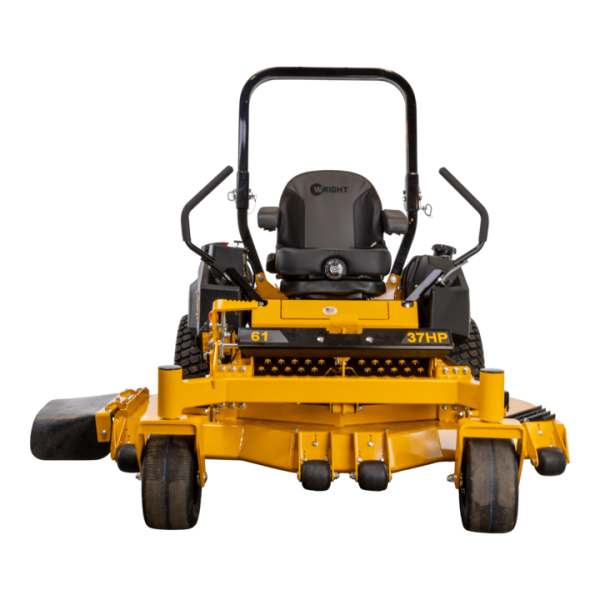

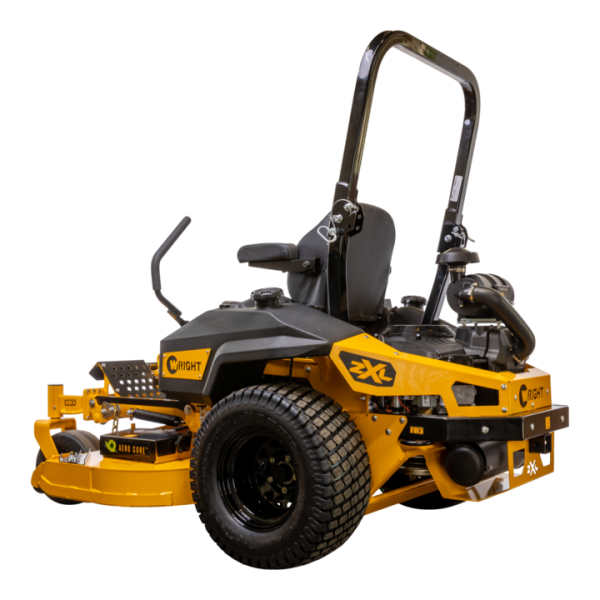

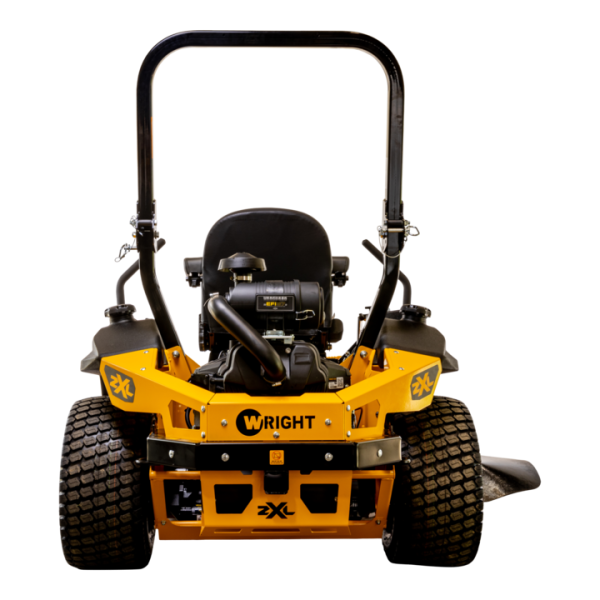

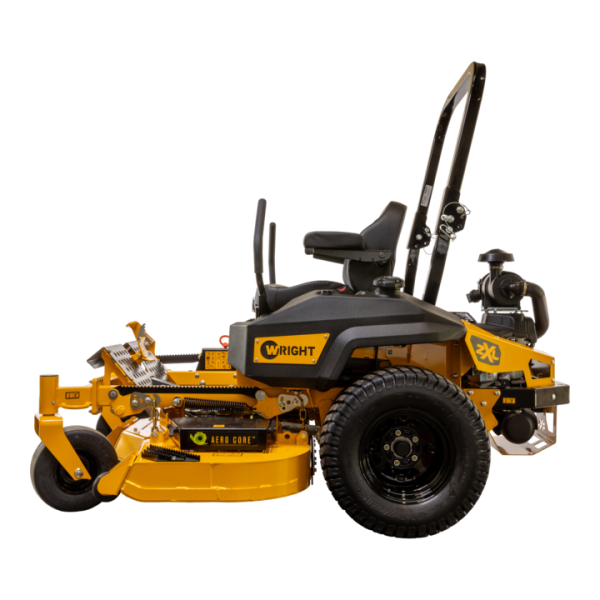

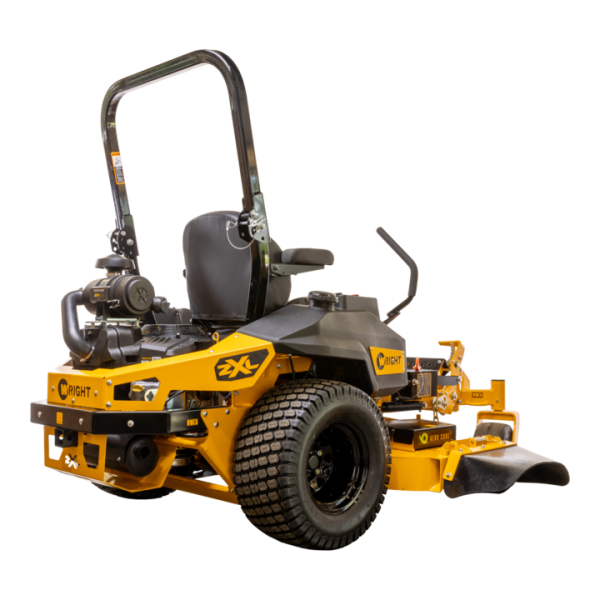

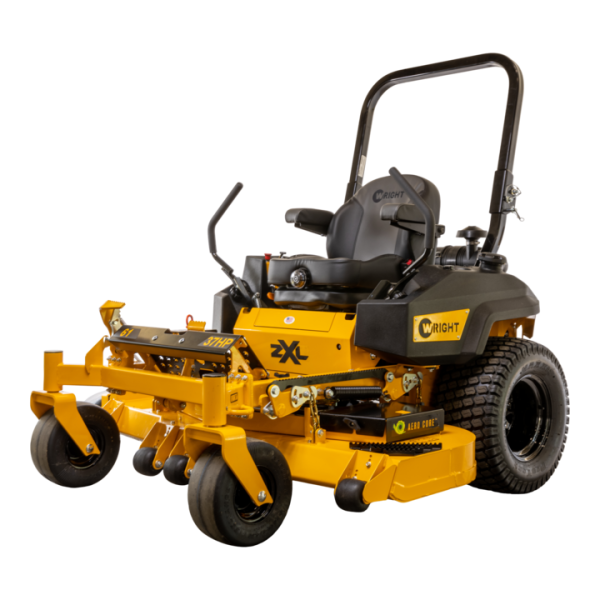

The all-new ZXL zero-turn rider fills the gap between our current ZTO and ZXT models and is a welcomed addition to our ZX series of commercial riding mowers. Built on the same frame as the ZXT, the ZXL shares in the extreme durability and construction of the ZXT but in a lighter, more compact and more affordable package. The ZXL is equipped with powerful EFI engine offerings, large 24” rear tires, a premium bolstered suspension seat, Aero-core deck, along with 15.5 gallons of fuel capacity. The ZXL is available in 52 and 61 inch deck sizes and is compatible with the WrightVac power bagging system, making it a versatile and valued asset in your fleet.
Call Us Now

Specs

GENERAL
<!---->
SKU
WZXL52SFX8201B
WZXL52SFX850E1B
WZXL61S61E8E1B
WZXL61SFX8201B
WZXL61SFX850E1B
Category
Mid-Mount
Mid-Mount
Mid-Mount
Mid-Mount
Mid-Mount
Family
ZXL
ZXL
ZXL
ZXL
ZXL
Class
Heavy-duty
Heavy-duty
Heavy-duty
Heavy-duty
Heavy-duty
Generation
Gen 1
Gen 1
Gen 1
Gen 1
Gen 1
MSRP
GTIN Code

CONTROL PANEL
Operator Control Type
Over the lap controls
Over the lap controls
Over the lap controls
Over the lap controls
Over the lap controls
Hour Meter
Digital
Digital
Digital
Digital
Digital

ENGINE
Vendor
Kawasaki
Kawasaki
Briggs & Stratton
Kawasaki
Kawasaki
Model
FX820
FX850E
61E8E
FX820
FX850E
Start Type
Electric
Electric
Electric
Electric
Electric
Horsepower
34.5 HP
27 HP
37 HP
34.5 HP
27 HP

PRODUCTIVITY
Forward Speed
12.5 MPH
12.5 MPH
12.5 MPH
12.5 MPH
12.5 MPH
Reverse Speed
8 MPH
8 MPH
8 MPH
8 MPH
8 MPH
Fuel Capacity
15.5 GAL
15.5 GAL
15.5 GAL
15.5 GAL
15.5 GAL
Max Acres Per Hour
6.57
6.57
7.7
7.7
7.7

DRIVE SYSTEM
Type
Hydro
Hydro
Hydro
Hydro
Hydro
Motor
NA
NA
NA
NA
NA
Pump
NA
NA
NA
NA
NA
Transaxle
Hydro-Gear ZT4400
Hydro-Gear ZT4400
Hydro-Gear ZT4400
Hydro-Gear ZT4400
Hydro-Gear ZT4400
Transmission
NA
NA
NA
NA
NA

DECK
Deck Size
52 IN
52 IN
61 IN
61 IN
61 IN
Deck Type
Floating-side discharge
Floating-side discharge
Floating-side discharge
Floating-side discharge
Floating-side discharge
Configuration
Aero Core
Aero Core
Aero Core
Aero Core
Aero Core
Lift System
Foot Pedal Operated
Foot Pedal Operated
Foot Pedal Operated
Foot Pedal Operated
Foot Pedal Operated
Blade Quantity
3
3
3
3
3
Blade Length
18 IN
18 IN
21 IN
21 IN
21 IN
Deck Min. Cut Height
1.5 IN
1.5 IN
1.5 IN
1.5 IN
1.5 IN
Deck Max. Cut Height
6 IN
6 IN
6 IN
6 IN
6 IN
Steel Gauge
7 Gauge
7 Gauge
7 Gauge
7 Gauge
7 Gauge
Spindle Type
Ductile Iron
Ductile Iron
Ductile Iron
Ductile Iron
Ductile Iron

DIMENSIONS & WEIGHT
Weight
1250 LB
1250 LB
1300 LB
1310 LB
1300 LB
Length
82.50 IN
82.50 IN
83.00 IN
83.00 IN
83.00 IN
Width w/ Deflector Down
65.50 IN
65.50 IN
74.50 IN
74.50 IN
74.50 IN
Width w/ Deflector Up
53.00 IN
53.00 IN
62.00 IN
62.00 IN
62.00 IN

CASTER WHEELS
Rim Diameter
6.00 IN
6.00 IN
6.00 IN
6.00 IN
6.00 IN
Tire Diameter
13.00 IN
13.00 IN
13.00 IN
13.00 IN
13.00 IN
Tire Width
6.50 IN
6.50 IN
6.50 IN
6.50 IN
6.50 IN

REAR WHEELS
Rim Diameter
12.00 IN
12.00 IN
12.00 IN
12.00 IN
12.00 IN
Tire Diameter
24.00 IN
24.00 IN
24.00 IN
24.00 IN
24.00 IN
Tire Width
9.50 IN
9.50 IN
12.00 IN
12.00 IN
12.00 IN
