Specs

• Bale Size

  • Bale Diameter 36 in - 60 in (91.4 cm - 152.4 cm)
  • Bale Width 61 in 154.9 cm
  • Maximum bale weight 1400 lbs 635 kg

• Dimensions and Weights

  • Length standard 150 in 381 cm
  • Length with net 171 in 434.3 cm
  • Length with ramp 167 in 424.2 cm
  • Height 102 in 259.1 cm
  • Width with standard tires 109 in 276.9 cm
  • Tires 12.5L-15
  • Weight fully optioned 5320 lbs 2413.1 kg

• Bale Forming Chamber

  • Drive Roller Size 5.5 in (14 cm)
  • Drum roller size 12 in 30.5 cm
  • Idler roller size 3.5 in (8.9 cm), 4.8 in (12.1 cm)
  • Start Roller Size 4.5 in 11.4 cm
  • Belt Type Standard mini rough top
  • Number of Belts 7
  • Width of Belt 6.8 in 17.3 cm
  • Length of belt (long) 441 in 1120.1 cm
  • Length of belt (short) 429 in 1089.7 cm
  • Type of Lace Alligator rivet

• Drive System

  • Driveline 540 rpm, standard lube, radial pin clutch
  • Bearing and Sprocket Configuration Round drive shafts and bearings — hex shaft on drum

• Tractor Requirements

  • PTO horsepower minimum 50 hp 37.3 kw
  • PTO horsepower recommended 60 hp 44.7 kw

• Pickup

  • Pickup type Standard
  • Width tooth to tooth 57 in 144.8 cm
  • Width on outside flair 58 in 147.3 cm
  • Width of Haysaver wheels *listed for select models only 87 in 221 cm
  • Tooth Bars 4
  • Number of Teeth (40) double rubber-mounted
  • Flotation Spring assist
  • Pickup Lift Manual

• Control system

  • Control system type Optional Bale Expert™
  • Display Monochrome LCD screen
  • Moisture Optional - up to 27%

• Density

  • Bale density adjustments Manual adjustment on relief valve
  • Density readings Optional physical gauge
  • Cylinder size 2.5 in (6.4 cm)

• Bale tie system

  • Twine system Optional

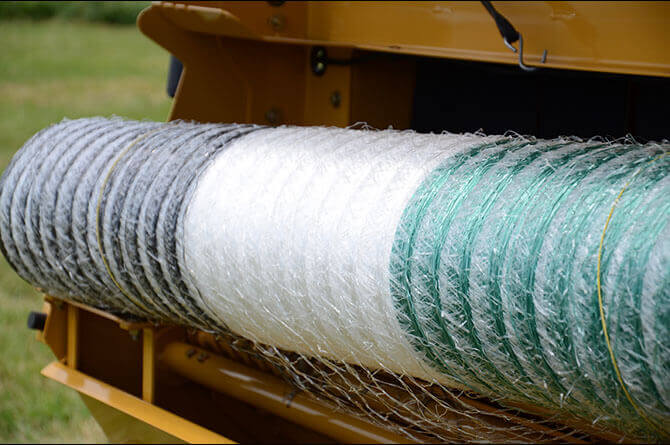

  • Netwrap system Optional
  • Net tension control via mechanical adjustment

• Features

  • Bale ramp Optional spring-loaded
  • Fire extinguisher, safety chain Optional
