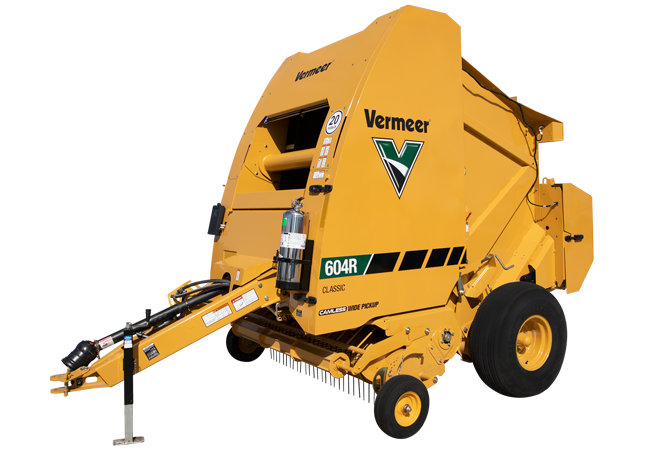

Vermeer 604R Classic Baler

Contact us for price

Stock status: Call Store for Availability

With minimal setup, low horsepower requirements, user-friendly controls and the option to bale with netwrap or twine, the 604R Classic baler is an ideal fit for small to midsize operations who have affordability in mind.

Call Us Now

Specs

  • Bale Size

    • Bale Diameter 36 in - 72 in (91.4 cm - 182.9 cm)
    • Bale Width 47 in 119.4 cm
    • Maximum bale weight 2000 lbs 907.2 kg
  • Dimensions and Weights

    • Length standard 164 in 416.6 cm
    • Length with net 184 in 467.4 cm
    • Length with ramp 198 in 502.9 cm
    • Height 121 in 307.3 cm
    • Width with standard tires 101 in 256.5 cm
    • Tires 14L-16.1
    • Weight fully optioned 6820 lbs 3093.5 kg
  • Bale Forming Chamber

    • Drive Roller Size 5.5 in (14 cm)
    • Idler roller size 3.5 in (8.9 cm), 4.8 in (12.1 cm)
    • Start Roller Size 5.3 in 13.3 cm
    • Belt Type Standard mini rough top
    • Number of Belts 6
    • Width of Belt 6.8 in 17.3 cm
    • Length of belt (long) 563.5 in 1431.3 cm
    • Length of belt (short) 557 in 1414.8 cm
    • Type of Lace Alligator rivet
  • Drive System

    • Driveline 540 rpm, standard lube, friction clutch
    • Torque protection pickup Radial pin clutch
    • Roller chains Single 60 and 80
    • Bearing and Sprocket Configuration Hex drive shafts and bearings
  • Tractor Requirements

    • PTO horsepower minimum 60 hp 44.7 kw
    • PTO horsepower recommended 80 hp 59.7 kw
  • Pickup

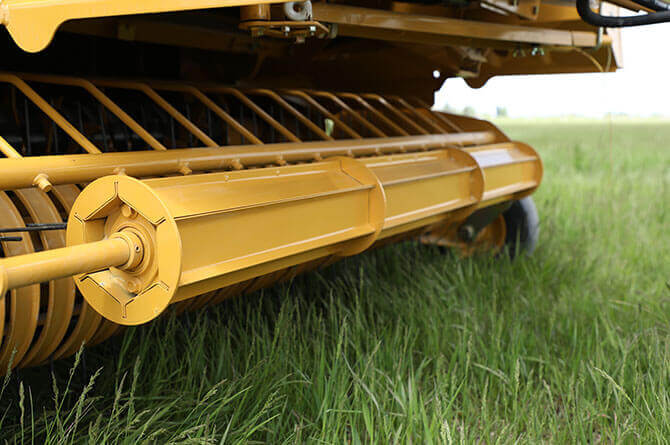

    • Pickup type Camless wide
    • Width tooth to tooth 70.5 in 179.1 cm
    • Width on outside flair 73.8 in 187.5 cm
    • Tooth Bars 4
    • Number of Teeth (56) double steel coil
    • Teeth spacing 2.83 in (7.2 cm)
    • Stripper bands Steel
    • Flotation Gauge wheels 4.8 - 16 HD semi-pneumatic with spring assist
    • Pickup Lift Manual standard, hydraulic optional
    • 3-year pickup warranty Standard
  • Control system

    • Control system type Atlasâ„¢ control system
    • Display 4.3 in (10.9 cm) color touch screen
    • Field Statistics 10 fields
    • Bale shape indicators Standard
    • Moisture Optional - up to 27%
    • Bales per hour Standard
  • Density

    • Bale density adjustments Standard through control system monitor
    • Density readings Optional physical gauge
    • Cylinder size 2.5 in (6.4 cm)
  • Bale tie system

    • Twine system Optional
    • Netwrap system Optional
    • Net gauge via control system Standard
    • Net tension control via control system
    • Netlift system Optional
    • Extra roll storage Standard
  • Features

    • Bale ramp Optional spring-loaded
    • Fire extinguisher, safety chain Optional
